Brief Introduction
Beta 2.5 |
The PR5021 BrilliantColor DLP projector from Planar has 3200 Ansi lumens, a contrast of 2200:1 and an XGA 1024 x 768 resolution. An image width of up to 493 cm is possible as the projector has 3200 Ansi lumens. However, if room light is available, the picture should be max. 329 cm wide. On the market since 2009, the model is no longer offered by the manufacturer Planar.
|
| Display Type |
1 x DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3200 |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
2200:1 full on/off |
2200:1 full on/off
|
| Black Level |
1,4545 min. Lumen |
0,486 min. Lumen |
| Offset |
64% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |

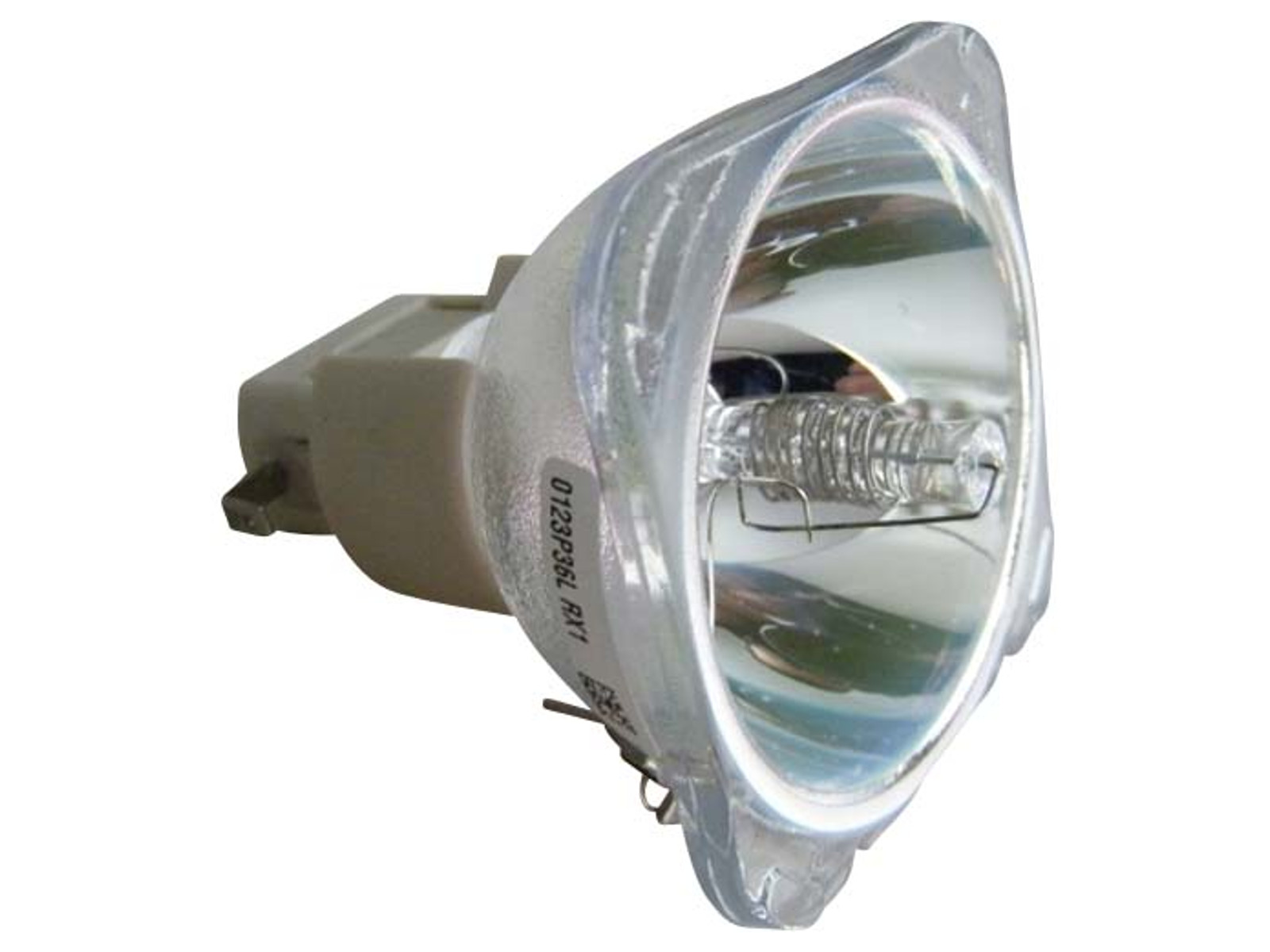

| Light Source |
-
Article Nr.: 997-5950-00
|
|
| Light Life |
2500 h. 4000 in Eco Mode |
| Operating Costs |
-
|
|
386 - 432 cm
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
| 96 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
- |
| Zoom |
- |
| Objective |
- |
| Throw Ratio |
1,93-2,16:1 show |
| Audio |
1W Mono |
| Connections |
- |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W / 5W standby |
| Size WxHxD |
280 x 88 x 208 mm (11"x3,5"x8,2") 5,13 L/dm³
|
| Operating Noise |
36 / 33 dB in Eco Mode |
|
| Weight |
2,59 kg / 5,71 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 15,30-90 kHz
V-sync: 43-85 Hz
|
| Foot-Lamberts |
99 fL
/ max. 493 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
Gamma correction
Password protection
BrilliantColor™
Remote control with laser pointer
Overscan adjustable
Digital Zoom
5-Segment, RYGWB colour wheel
|
|
- |
In Comparison
The Planar PR5021 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
95 |
Power cons.: |
|
98 |
| Picture Total Points: | 45 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5400 (From: 7662) |
|
|
|
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-04
|
