Brief Introduction
Beta 2.5 |

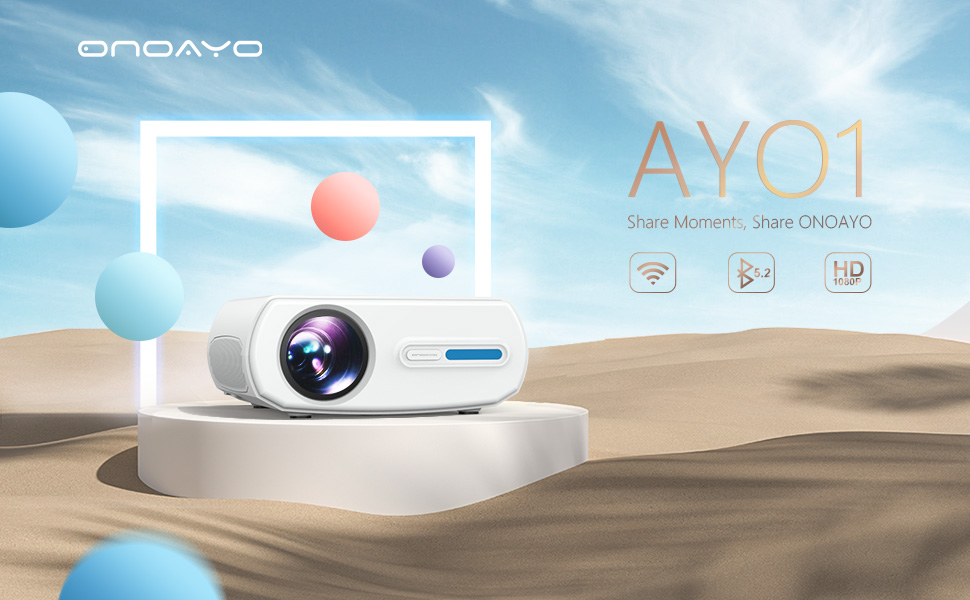

With the AYO1, manufacturer ONOAYO offers an LCD LED projector with HDTV 1920 x 1080 resolution and a contrast of 15000:1. Thanks to the LEDs, the projector is specified with 120000 hours of light life, which is over 82.2 years if enjoyed for four hours a day. The horizontal and vertical keystone correction allows the projector to be positioned very freely. The projector can illuminate a picture width of 223 cm well. However, if there is room light, the picture width should ideally not exceed 149 cm. The projector has Airplay, Miracast Screen Mirroring support, which enables direct playback of videos in high resolution and surround sound from smartphones, tablets and PCs with Android, Windows or iOS via WLAN. Thanks to the Bluetooth function, the projector can also be flexibly paired with other speakers. It is also Full HD 1080P and 4K (compressed) compatible.
|
| Display Type |
1 x LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
480 |
Screen |
213 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,0320 min. Lumen |
0,014 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p |
| Application |
Game-Portabel | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light. |
| Light Source |
LED
|
|
| Light Life |
120000 h. |
| Operating Costs |
0,00 € LED
|
|
|
 |
|
Lux: |
213 Lux |
|
Room light max.: |
43 Lux |
|
Candela pro m²: |
69 cd/m² |
|
Foot-Lamberts: |
20 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
2 x 3W |
| Connections |
2x HDMI in
2x USB in
D-Sub 15 Pin in
Audio Mini Jack in und out
Bluetooth 5.2 |
| Ceiling Mounting |
- |
| Power |
- |
| Size WxHxD |
201,9 x 73,9 x 160 mm (7,9"x2,9"x6,3") 2,35 L/dm³
|
| Operating Noise |
- |
|
| Weight |
1,30 kg / 2,2 lbs. |
| Keystone |
Vert.: +/-15°
Hori.: +/-15°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
20 fL
/ max. 223 cm screen width |
| Candela m² |
69 cd/m² |
| Features |
 Full HD 1080P compatible
Wi-Fi network compatible.
- |
|
Miracast, Airplay |
In Comparison
The ONOAYO AYO1 compared to others current "Game-Portabel" projectors. |
| Ansi-Lumen: |
|
79 |
Weight: |
|
14 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
0 |
| Picture Total Points: | 59 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
112 (From: 419) |
|
|
|
| Status |
2022 Current model // Last update of the data: 2025-01-27
|
