Brief Introduction
Beta 2.5 |
The Mitsubishi model HD8000/LV is an LCD projector with HDTV 1920 x 1080 resolution and a contrast of 1000:1. With the lens shift function, the projector can be positioned very freely. The projector can illuminate a picture width of 718 cm well. Rooms with residual light can be created by the projector with a smaller image width, max. 479 cm is recommended here. The model is also Full HD 1080P compatible. This model is no longer offered by Mitsubishi.
|
| Display Type |
3 x 1,1" LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
2,227 min. Lumen |
| Lens shift |
Vert.: +51% -13% Hori.: +/-5%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

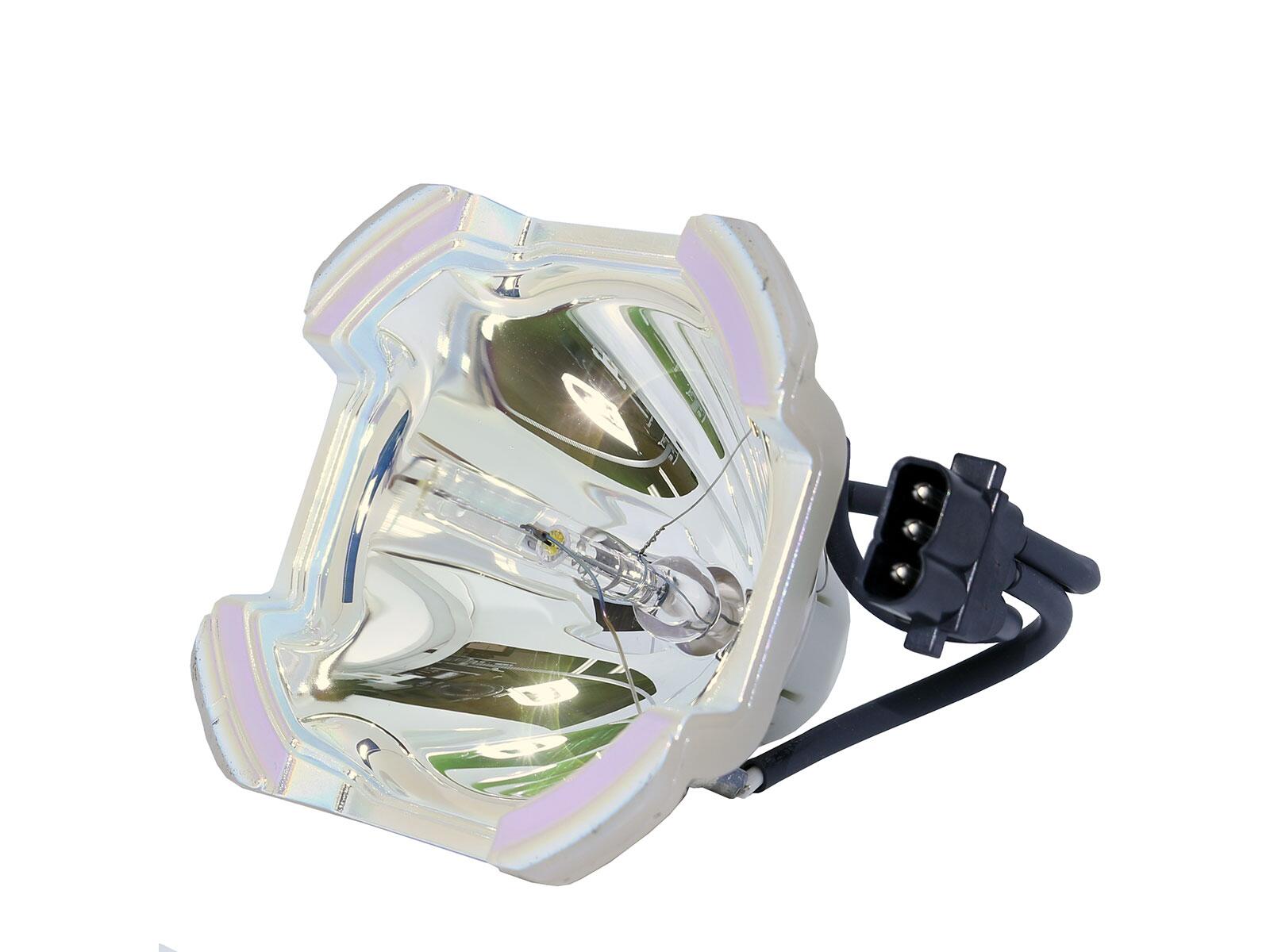

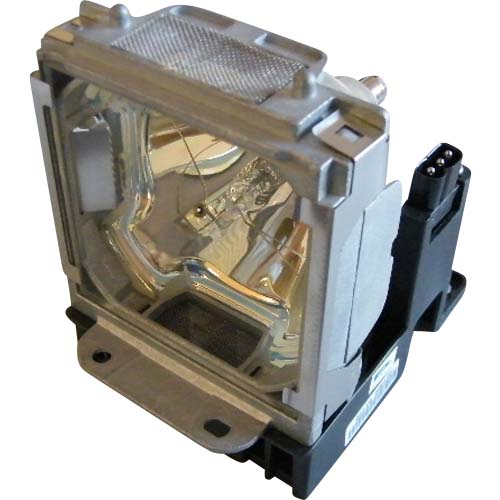

275 / 220W im Eco Mode Lamp
Article Nr.: VLT-XL6600LP
|
|
| Light Life |
2000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
394 - 508 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 57 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,25 |
| Objective |
F=1,8-2,1 f=51-64 mm |
| Throw Ratio |
1,97-2,54:1 show |
| Audio |
10W Mono |
| Connections |
DVI-D mit HDCP in
D-sub 15 pin in und out
5 x BNC RGBHV in
S-Video in
Cinch stereo in und out
Mini jack Audio in
USB Typ B
RS232C Din 9pin
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
430W |
| Size WxHxD |
443 x 207 x 434 mm (17,4"x8,1"x17,1") 39,8 L/dm³
|
| Operating Noise |
29 dB in Eco Mode |
Shift: 57 cm
|
Shift: 10 cm
|
|
Shift: 10 cm
|
| |
|
|
| Weight |
9,80 kg / 21,61 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
Password protection
Remote control with laser pointer
PJLink™
Control via web browser
Lan network compatible.
Overscan adjustable
|
|
- |
In Comparison
The Mitsubishi HD8000/LV compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
85 |
Power cons.: |
|
95 |
| Picture Total Points: | 45 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
30 |
| Ranking: |
689 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| OL-X500TZ | 3.6-5.5:1 | 720-1100 m |
51-13% |
+/-5% |
Powered |
| OL-X500LZ | 2.5-3.55:1 | 500-710 m |
51-13% |
+/-5% |
Powered |
| OL-X500SZ | 1.4-1.75:1 | 280-350 m |
51-13% |
+/-5% |
Powered |
| OL-X500FR | 0.84:1 | 168 m |
51-13% |
+/-5% |
No Zoom |
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Product Sheet RS232C
Press release english
User Manual english (5.48 MB)
|
Mitsubishi Website
