Brief Introduction
Beta 2.5 |

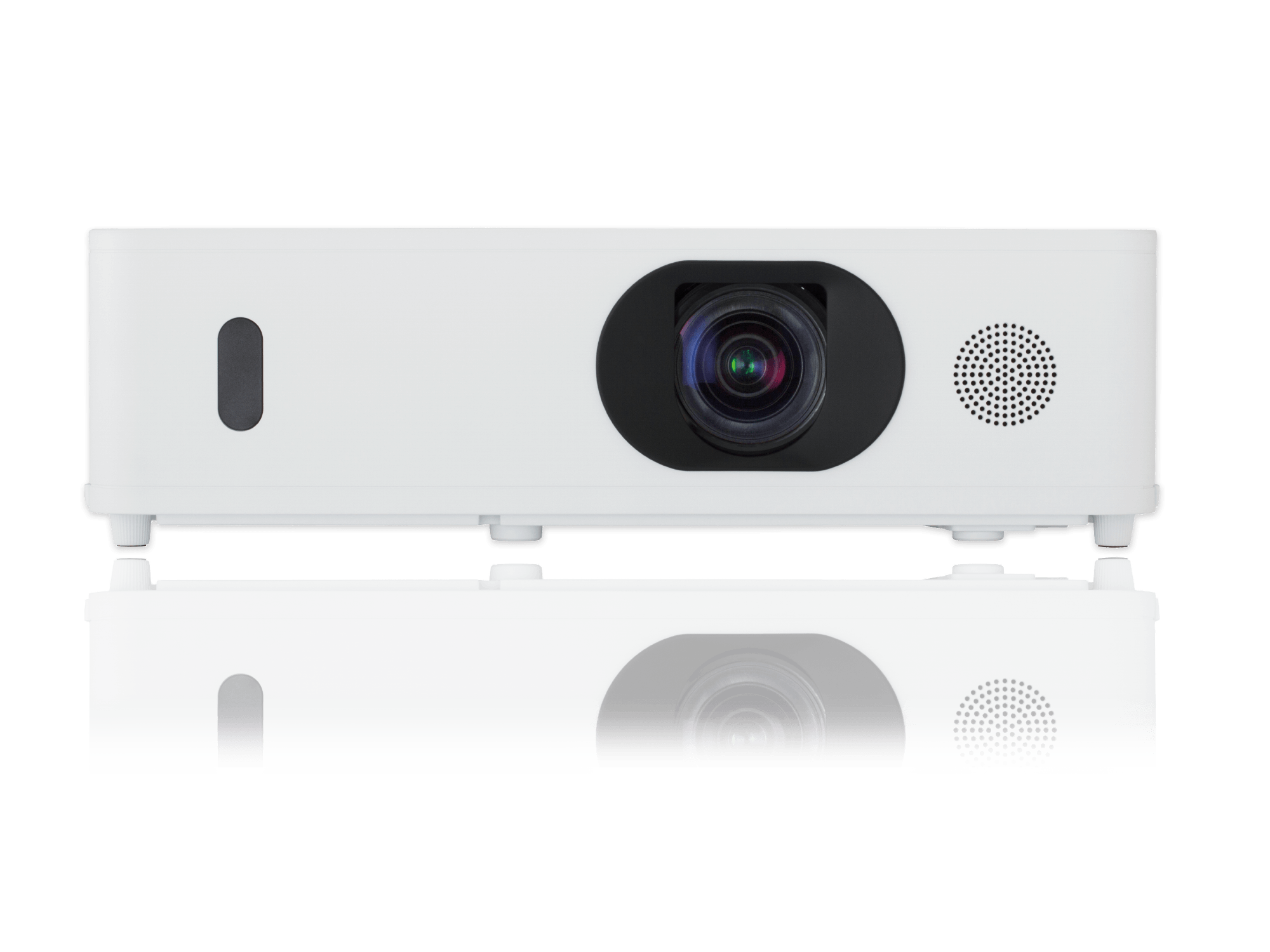

The standard portable Maxell MC-WU5501 3D LCD projector has 5200 Ansi lumens, a contrast of 10000:1 and a WUXGA 1920 x 1200 resolution. The lamp in the projector is specified with a lamp life of 4000 hours, which is over 5.5 years with a daily viewing time of 2 hours. The horizontal and vertical keystone correction allows the projector to be positioned very freely. Thanks to the brightness of 5200 Ansi lumens, a picture width of 733 cm is possible. The projector can also handle slightly brighter rooms with a smaller picture width (we recommend max. 489 cm). If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. It is also Full HD 1080P and 3D compatible. This model is no longer offered by Maxell.
|
| Display Type |
3 x LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5200 |
Screen |
2311 Lux (200 cm Screen width) |
| Contrast |
10000:1 |
10000:1
|
| Black Level |
0,5200 min. Lumen |
0,231 min. Lumen |
| Offset |
-
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

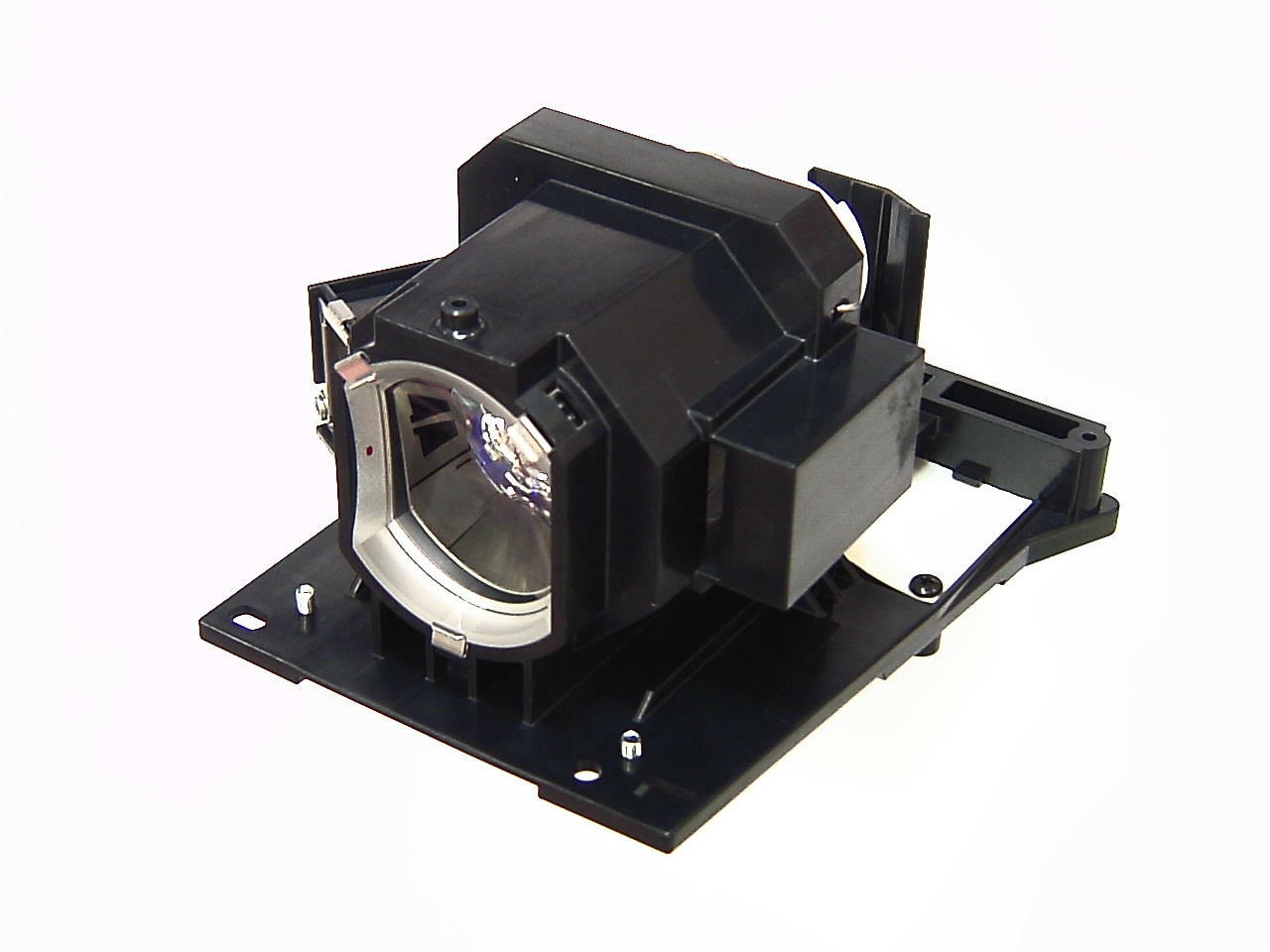

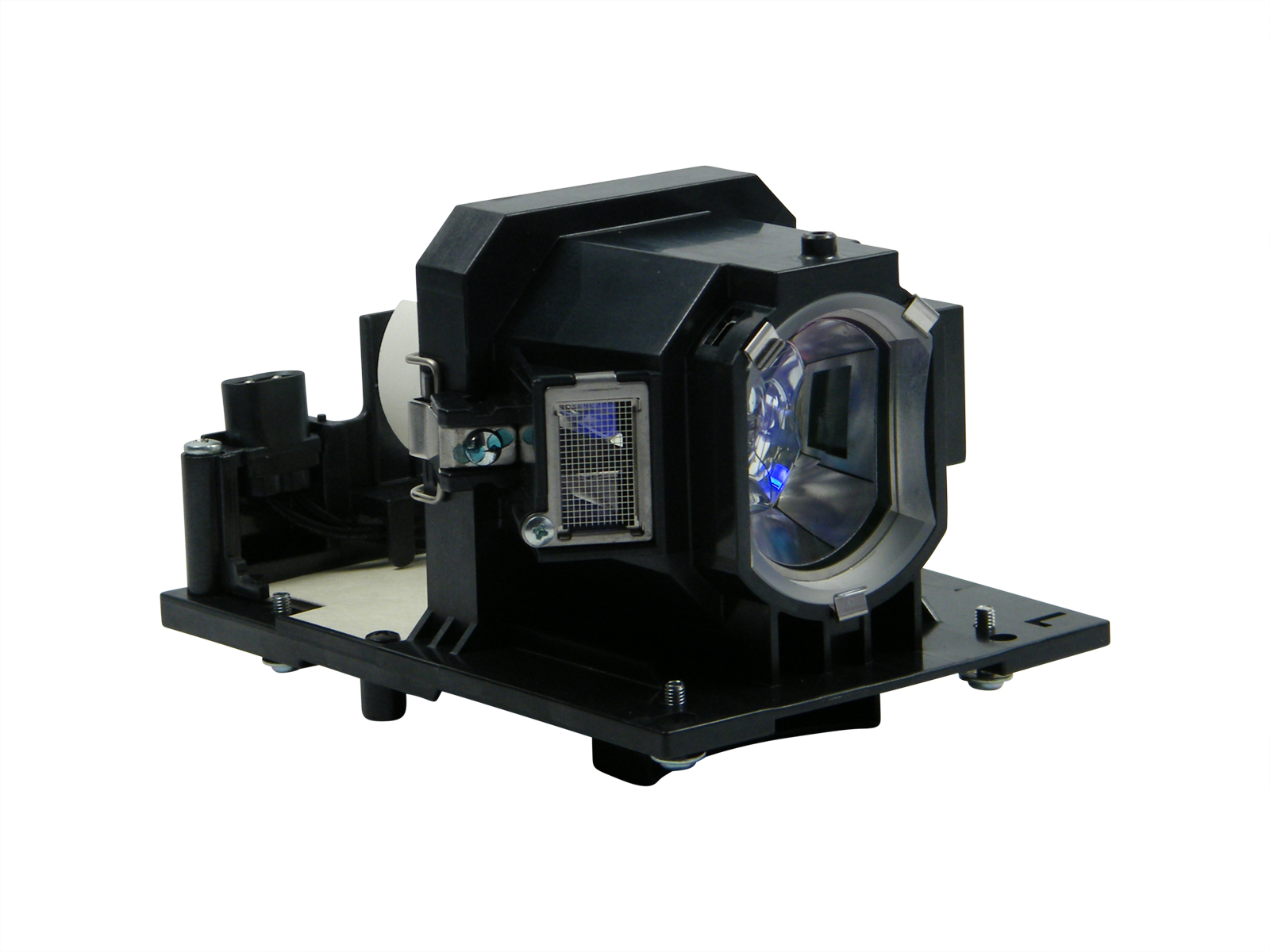

300W Lamp
Article Nr.: DT01931
|
|
| Light Life |
4000 h. 6000 h. in Eco Mode |
| Operating Costs |
|
|
280 - 460 cm
|
 |
|
Lux: |
2311 Lux |
|
Room light max.: |
462 Lux |
|
Candela pro m²: |
737 cd/m² |
|
Foot-Lamberts: |
215 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,7 |
| Objective |
f=19,8-33,9 mm |
| Throw Ratio |
1,4-2,3:1 show |
| Audio |
16W |
| Connections |
2 x HDMI in und 1 x out
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Remote Control in und out |

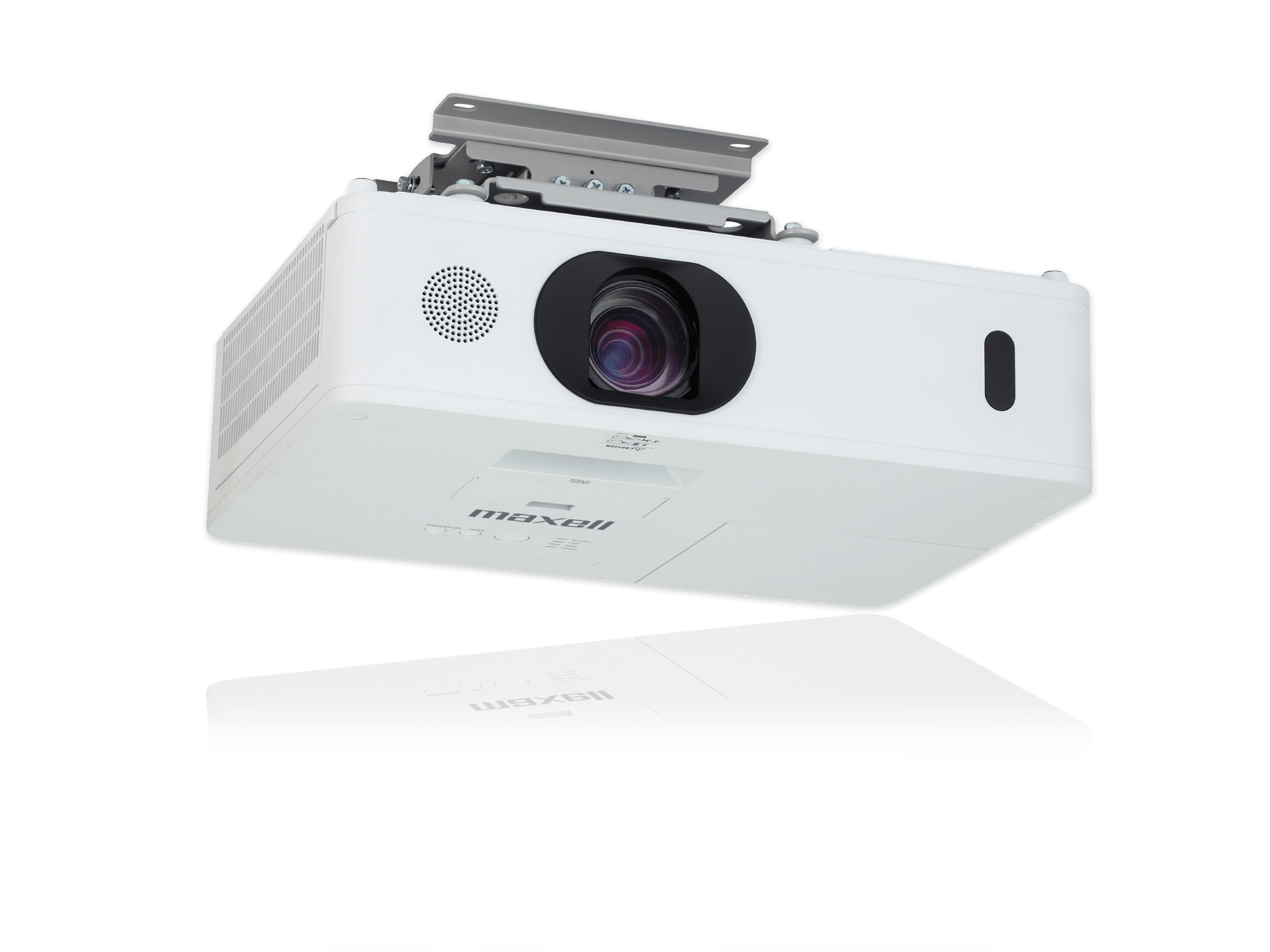

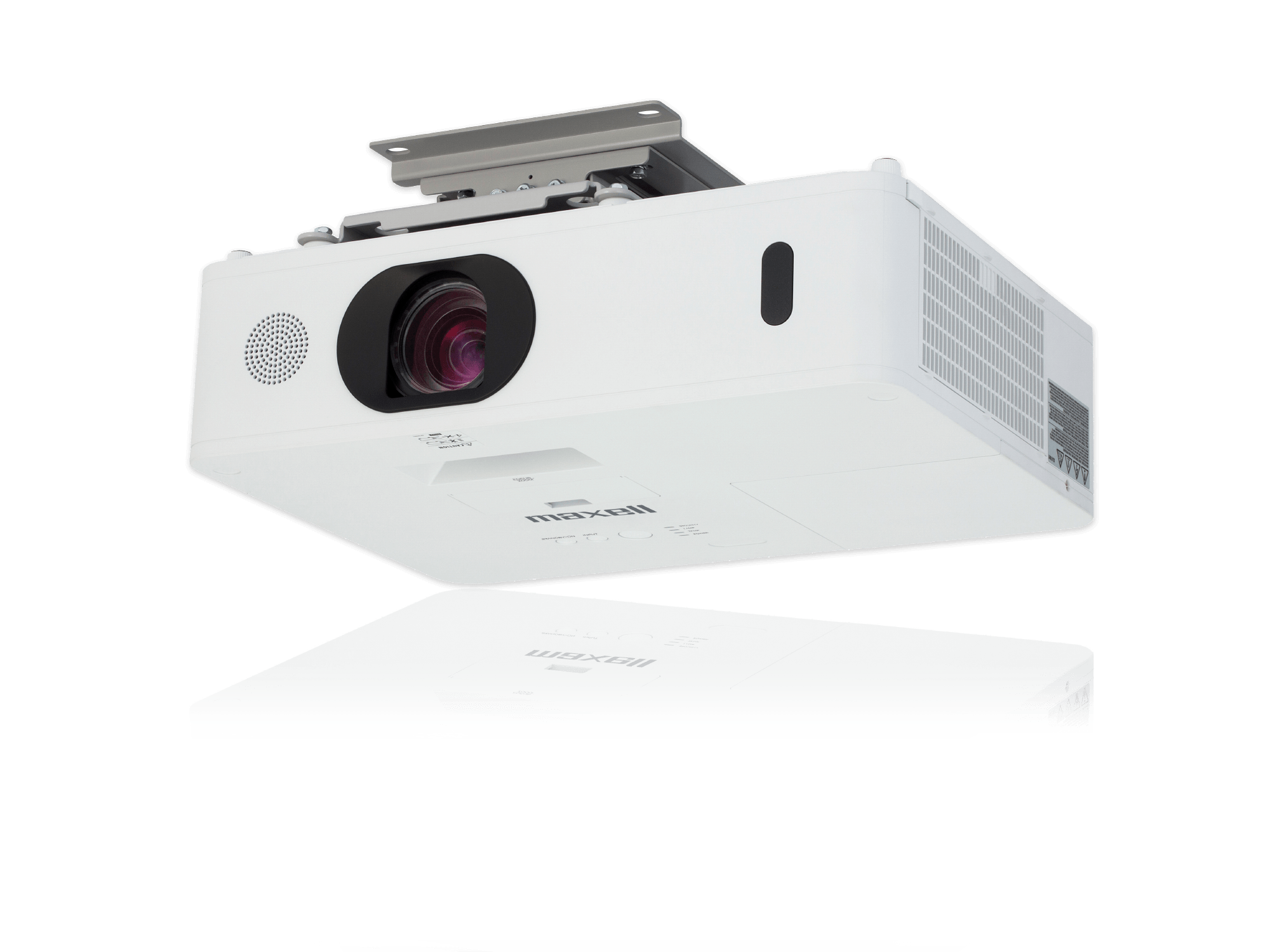

| Ceiling Mounting |
Yes, is possible. |
| Power |
440W 420W in Eco Mode |
| Size WxHxD |
459,7 x 137,2 x 332,7 mm (18,1"x5,4"x13,1") 20,88 L/dm³
|
| Operating Noise |
- |
Key: 162 cm |
Key: 162 cm | | Key: 162 cm |
| |
|
|
| Weight |
6,35 kg / 14 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-106 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
215 fL
/ max. 733 cm screen width |
| Candela m² |
737 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
Warping
Edge Blending
Picture-in-Picture
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
Dicom simulation mode
AMX
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Maxell MC-WU5501 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
51 |
Weight: |
|
97 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
95 |
| Picture Total Points: | 50 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5874 (From: 7662) |
|
|
|
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2019-06-13 17:35:43
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (0.91 MB)

|
