Brief Introduction
Beta 2.5 |
The high-end Homecinema VP 12S2 DLP has 700 Ansi-Lumen, a contrast of 2600:1 and a HDTV 1280 x 720 resolution. The built-in lens shift and keystone correction function provides freedom when setting up. 269 cm image width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 179 cm. This model is no longer offered by Marantz, but is still a very popular projector. Unfortunately, we can no longer offer replacement lamps for this model, neither originals nor replicas.
|
| Display Type |
1 x 0,85" HD2 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
700 |
Screen |
311 Lux (200 cm Screen width) |
| Contrast |
2600:1 full on/off |
2600:1 full on/off
|
| Black Level |
0,2692 min. Lumen |
0,12 min. Lumen |
| Lens shift |
Vert.: +/-50% manuell
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
150W SHP Lamp
Article Nr.: LU12VPS1
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
300 - 346 cm
|
 |
|
Lux: |
311 Lux |
|
Room light max.: |
62 Lux |
|
Candela pro m²: |
99 cd/m² |
|
Foot-Lamberts: |
29 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
f=26,5-30,7 mm |
| Throw Ratio |
1,50-1,73:1 show |
| Audio |
Nein |

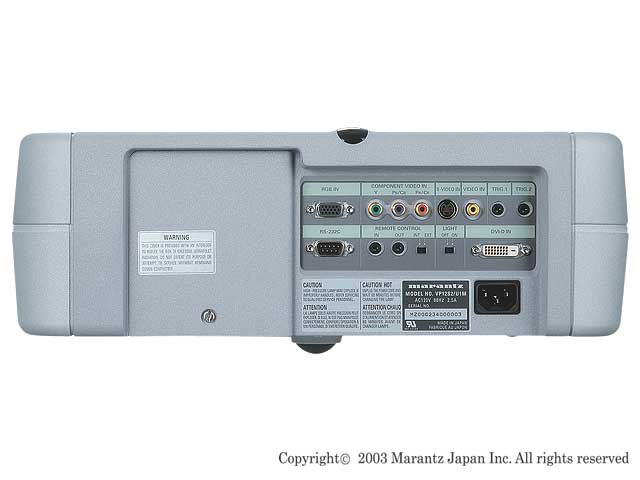

| Connections |
DVI in
D-sub 15pin in
YUV in
S-Video in
Cinch Video
2 x 12V Trigger in
Remote in und out
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
405 x 194 x 471 mm (15,9"x7,6"x18,5") 37,01 L/dm³
|
| Operating Noise |
35dB |
|
| Weight |
13,00 kg / 28,66 lbs. |
| Keystone |
Vertical und horizontal |
| Illumination |
90% |
| Frequenz |
- |
| Foot-Lamberts |
29 fL
/ max. 269 cm screen width |
| Candela m² |
99 cd/m² |
| Features |
 Lens shift Funktion manuell
Eco Mode
Gamma correction
Dynamic iris
Iris diaphragm on the lens
3:2 pulldown progressive scan film detection... DCDi video processor from Faroudja IEEE 1394
DV format adapted for digital video cameras
Light switch for illuminating the connection terminal
6-segment colour wheel
10-bit digital gamma correction
|
|
- |
In Comparison
The Marantz VP 12S2 compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
3 |
Weight: |
|
77 |
| Contrast: |
|
1 |
dB: |
|
45 |
| Black level: |
|
93 |
Power cons.: |
|
94 |
| Picture Total Points: | 32 |
Projector Total Points: | 72 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
351 (From: 499) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2003 Discontinued (EOL) // Last update of the data: 2025-03-03
|
