Brief Introduction
Beta 2.5 |

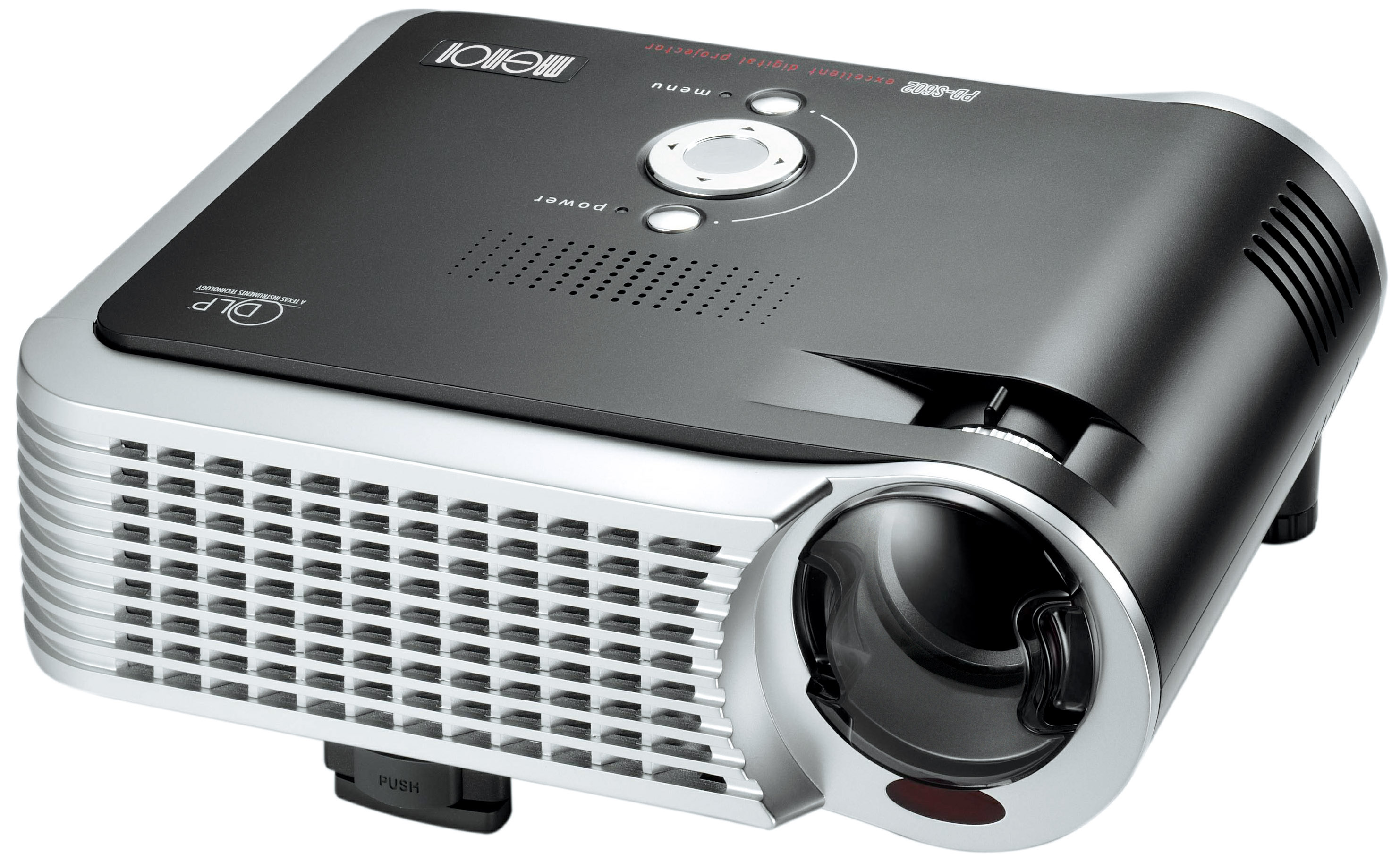

The Maginon DLP 1400S model is a DLP projector with SVGA 800 x 600 resolution and a contrast of 1200:1. 1400 Ansi lumens ensure that a picture width of 326 cm is also possible. However, if room light is available, the picture should be max. 217 cm wide. The model is no longer offered by Maginon. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither originals nor replicas.
|
| Display Type |
1 x 0,55" DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1400 |
Screen |
467 Lux (200 cm Screen width) |
| Contrast |
1200:1 full on/off |
1200:1 full on/off
|
| Black Level |
1,1667 min. Lumen |
0,39 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC,
|
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
200W Lamp
Article Nr.: DLP 1400-SLAMP
|
|
| Light Life |
3000 h. |
| Operating Costs |
-
|
|
362 - 434 cm
|
 |
|
Lux: |
467 Lux |
|
Room light max.: |
93 Lux |
|
Candela pro m²: |
147 cd/m² |
|
Foot-Lamberts: |
43 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
manuell |
| Zoom |
Manual 1,2 |
| Objective |
f=20,2-24,2 mm |
| Throw Ratio |
1,81-2,17:1 show |
| Audio |
2W |
| Connections |
D-sub 15pin in
Cinch Video in
S-Video in
Mini Jack
USB |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
265 x 202 x 97 mm (10,4"x8"x3,8") 5,19 L/dm³
|
| Operating Noise |
34dB |
|
| Weight |
2,40 kg / 5,29 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
80% |
| Frequenz |
H-sync: 31-79 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
43 fL
/ max. 326 cm screen width |
| Candela m² |
147 cd/m² |
| Features |
 Blank (Black screen button)
Kensington Slot
Gamma correction
Picture-in-Picture
-
|
|
- |
In Comparison
The Maginon DLP 1400S compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
15 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
96 |
Power cons.: |
|
0 |
| Picture Total Points: | 37 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5685 (From: 7662) |
|
|
|
| Please note |
-
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
