Brief Introduction
Beta 2.5 |

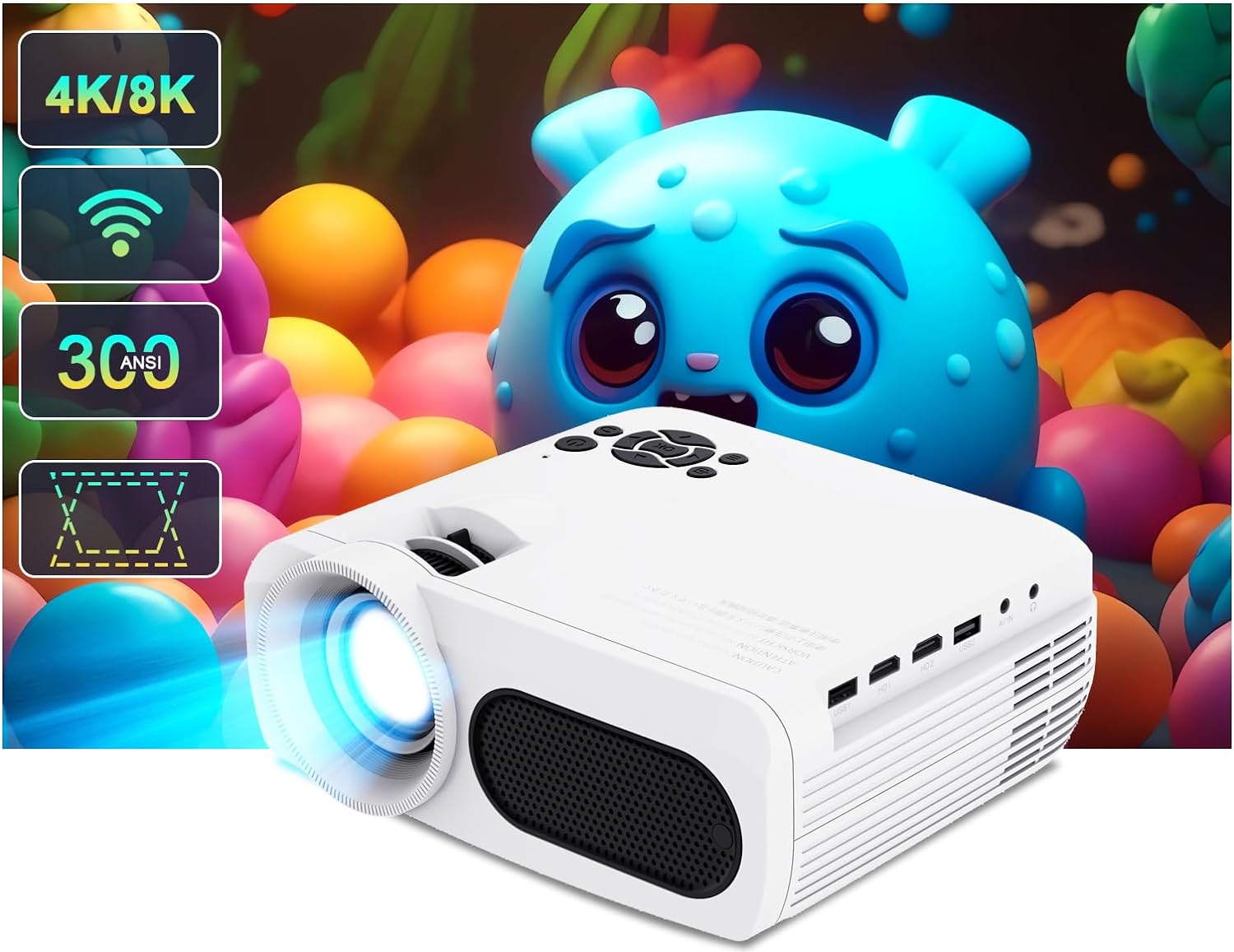

A brief introduction to the Magcubic M7. The standard portable LCD LED projector has an HDTV 1920 x 1080 resolution and a contrast of 15000:1. Due to the LEDs, the projector is specified with a light life of 55000 hours, which converts to over 37.7 years at 4 hours. An image width of up to 176 cm is possible as the projector has 300 Ansi lumens. However, if there is room light, the picture should be max. 117 cm wide. The model recognizes DLNA, Airplay, Miracast Screen Mirroring signals, so it is possible to play videos with high resolution and surround sound directly via WLAN from a smartphone, tablet or PC (Android, Windows and iOS). Playback of 1080P and 4K (compressed) is also no problem for the projector.
|
| Display Type |
1 x 5" LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
300 |
Screen |
133 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,0200 min. Lumen |
0,009 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Very narrow picture width and rooms with very little light. |
| Light Source |
LED
|
|
| Light Life |
55000 h. |
| Operating Costs |
0,00 € LED
|
|
|
 |
|
Lux: |
133 Lux |
|
Room light max.: |
27 Lux |
|
Candela pro m²: |
41 cd/m² |
|
Foot-Lamberts: |
12 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
2 x 5W |
| Connections |
2x HDMI in
2x USB in
SD Karte
D-Sub 15 Pin in
Audio Mini Jack out
 |
| Ceiling Mounting |
- |
| Power |
60W |
| Size WxHxD |
200 x 90 x 220 mm (7,9"x3,5"x8,7") 3,96 L/dm³
|
| Operating Noise |
32dB |
|
| Weight |
1,74 kg / 2,2 lbs. |
| Keystone |
Vert.: +/-50°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
12 fL
/ max. 176 cm screen width |
| Candela m² |
41 cd/m² |
| Features |
 Full HD 1080P compatible
Wi-Fi network compatible.
Android 9.0
|
|
Miracast, Airplay, DLNA |
In Comparison
The Magcubic M7 compared to others current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
1 |
Weight: |
|
96 |
| Contrast: |
|
1 |
dB: |
|
70 |
| Black level: |
|
100 |
Power cons.: |
|
100 |
| Picture Total Points: | 34 |
Projector Total Points: | 89 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
154 (From: 849) |
|
|
|
| Status |
2023 Current model // Last update of the data: 2024-10-18
|
| Data |
 Product Sheet english HC

|
