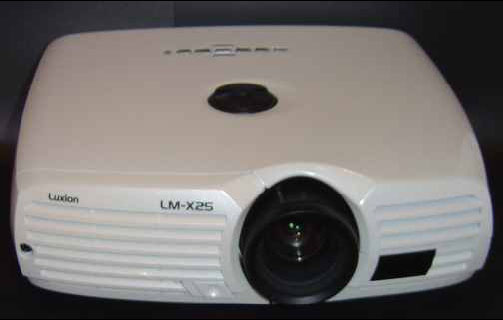

A brief introduction to the LM X25: The Luxion DLP projector offers 2500 Ansi lumens, a contrast of 2500:1 and an SXGA+ 1400 x 1050 resolution. With the lens shift function, the projector can be positioned very freely. The projector will be able to illuminate a picture width of 435 cm well. However, if room light is available, the picture width should ideally not exceed 290 cm. At just 28 decibels, the device is one of the quieter projectors. It was launched on the market in 2006 and is no longer offered by the manufacturer Luxion.
|
| Display Type |
1 x 0,94" LVDS DC3 DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,334 min. Lumen |
| Lens shift |
Vert.: +55% -5% manuell
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
220W UHP Lamp
Article Nr.: 124BN41
|
|
| Light Life |
2000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
350 - 450 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 83 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,26 |
| Objective |
F=2,8-3,0 f=31,1-39,2 mm |
| Throw Ratio |
1,75-2,25:1 show |
| Audio |
1W Mono |

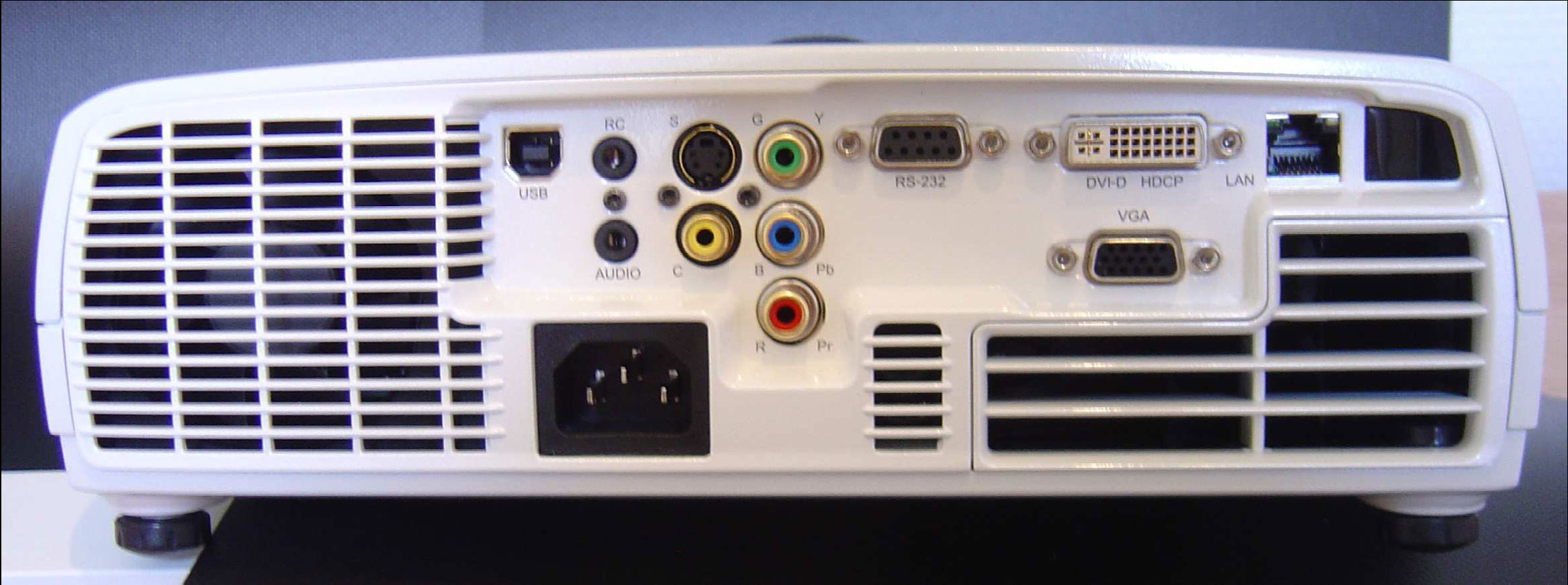

| Connections |
DVI-D mit HDCP
D-sub 15 pin in
YUV in
Cinch Video in
S-Video in
USB
RS232C
RJ45
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
350W |
| Size WxHxD |
278 x 94 x 234 mm (10,9"x3,7"x9,2") 6,11 L/dm³
|
| Operating Noise |
28 / 24 dB in Eco Mode |
Key: 202 cm
Shift: 83 cm |
Key: 94 cm |
| Key: 94 cm |
| |
|
|
| Weight |
2,55 kg / 5,62 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-150 kHz
V-sync: 48-190 Hz
Range max.: 170 MHz |
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Lens shift Funktion manuell
Freeze
Eco Mode
Gamma correction
Remote control with laser pointer und mouse control
Lan network compatible.
Faroudja DCDi
De-interlacer with 3:2 2:2 pull down
Can be installed upright.
Programmable timer
DICOM simulation
|
|
- |
In Comparison
The Luxion LM X25 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
54 |
| Black level: |
|
96 |
Power cons.: |
|
96 |
| Picture Total Points: | 42 |
Projector Total Points: | 79 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
5148 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
Product Sheet Shift

|
