Brief Introduction
Beta 2.5 |

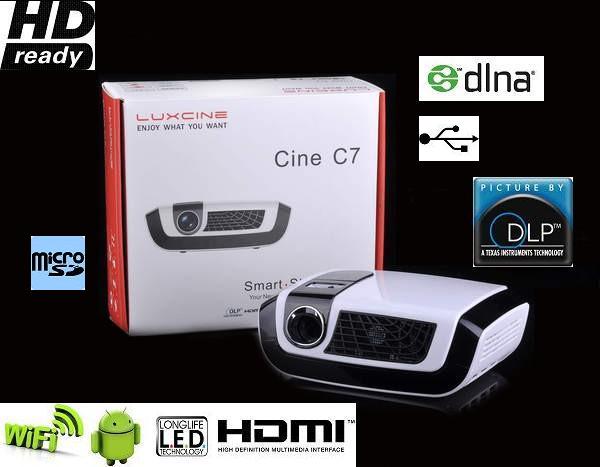

The Cine C7D 3D LED DLP has 500 Ansi-Lumen, a contrast of 2000:1 and a WXGA 1280 x 800 resolution. The manufacturer Luxcine specifies a service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. 500 Ansi lumens ensure that a picture width of 227 cm is also possible. However, if room light is available, the picture should be a maximum of 151 cm wide. The model is also Full HD 1080P compatible. The projector is very quiet compared to others with 28 decibels of operating noise. It was launched in 2013 and is no longer offered by the manufacturer Luxcine.
|
| Display Type |
1 x DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
500 |
Screen |
200 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,2500 min. Lumen |
0,1 min. Lumen |
| Offset |
50% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Micro-Portabel | Small mobile presentations.
Very narrow picture width and rooms with very little light. |
| Light Source |
LED
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € LED
|
|
|
 |
|
Lux: |
200 Lux |
|
Room light max.: |
40 Lux |
|
Candela pro m²: |
65 cd/m² |
|
Foot-Lamberts: |
19 fL |
|
 |
| 63 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
- |
| Zoom |
- |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
- |
| Connections |
2 x HDMI in
D-sub 15pin in
Cinch Video in
S-Video in
Mini Jack Audio in und out
3 x USB in
SD Card Slot |
| Ceiling Mounting |
Yes, is possible. |
| Power |
35W |
| Size WxHxD |
165 x 48 x 125 mm (6,5"x1,9"x4,9") 0,99 L/dm³
|
| Operating Noise |
28dB |
|
| Weight |
1,00 kg / 2,2 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
19 fL
/ max. 227 cm screen width |
| Candela m² |
65 cd/m² |
| Features |
 Full HD 1080P compatible
Android4.0
CPU 2 Dual core 1G
GPU 2 GPU(400)MALI
RAM 768M
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Luxcine Cine C7D compared to others not current "Micro-Portabel" projectors. |
| Ansi-Lumen: |
|
9 |
Weight: |
|
36 |
| Contrast: |
|
1 |
dB: |
|
70 |
| Black level: |
|
96 |
Power cons.: |
|
100 |
| Picture Total Points: | 35 |
Projector Total Points: | 69 |
|
| Popularity Top 100 |
|
| Points: |
|
19 |
| Ranking: |
227 (From: 395) |
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2024-10-02
|
| Data |
 Product Sheet english HC
User Manual english (6.01 MB)
|
