Brief Introduction
Beta 2.5 |

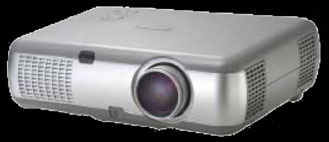

A brief introduction to the LX750: The Lumens LCD projector offers 1600 Ansi lumens, a contrast of 400:1 and an XGA 1024 x 768 resolution. The projector can illuminate an image width of up to 348 cm with its 1600 Ansi lumens. In room light, however, the image width should ideally be less than 232 cm. This model is no longer offered by Lumens.
|
| Display Type |
3 x 0,79" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
1600 |
Screen |
533 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
4,0000 min. Lumen |
1,343 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
HDTV, 480p, 720p, 1080I, NTSC, NTSC4.43PAL/ PAL-M/ PAL-N, SECAM |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
150W NSH Lamp
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
468 - 560 cm
|
 |
|
Lux: |
533 Lux |
|
Room light max.: |
107 Lux |
|
Candela pro m²: |
171 cd/m² |
|
Foot-Lamberts: |
50 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,7 f=37,5-45 mm |
| Throw Ratio |
2,34-2,8:1 show |
| Audio |
1,5W |
| Connections |
(1) Component, RCA x 3
(1) Min DIN 4-pin
(1) S-Video
(1) RCA
composite Video
(1) DVI-I, Digital Visual Interface
(1) Signal: D-sub 15 pin in und out
RS232C
Maus Port |
| Ceiling Mounting |
Yes, is possible. |
| Power |
350W |
| Size WxHxD |
320 x 90 x 220 mm (12,6"x3,5"x8,7") 6,34 L/dm³
|
| Operating Noise |
40dB |
|
| Weight |
3,50 kg / 7,72 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 50-100 Hz
|
| Foot-Lamberts |
50 fL
/ max. 348 cm screen width |
| Candela m² |
171 cd/m² |
| Features |
 Picture-in-Picture
Remote control with laser pointer
Digital Zoom
and picture-by-picture
3:2 pull down
|
|
- |
In Comparison
The Lumens LX750 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
18 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
23 |
| Black level: |
|
85 |
Power cons.: |
|
96 |
| Picture Total Points: | 35 |
Projector Total Points: | 67 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
3052 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
