Brief Introduction
Beta 2.5 |

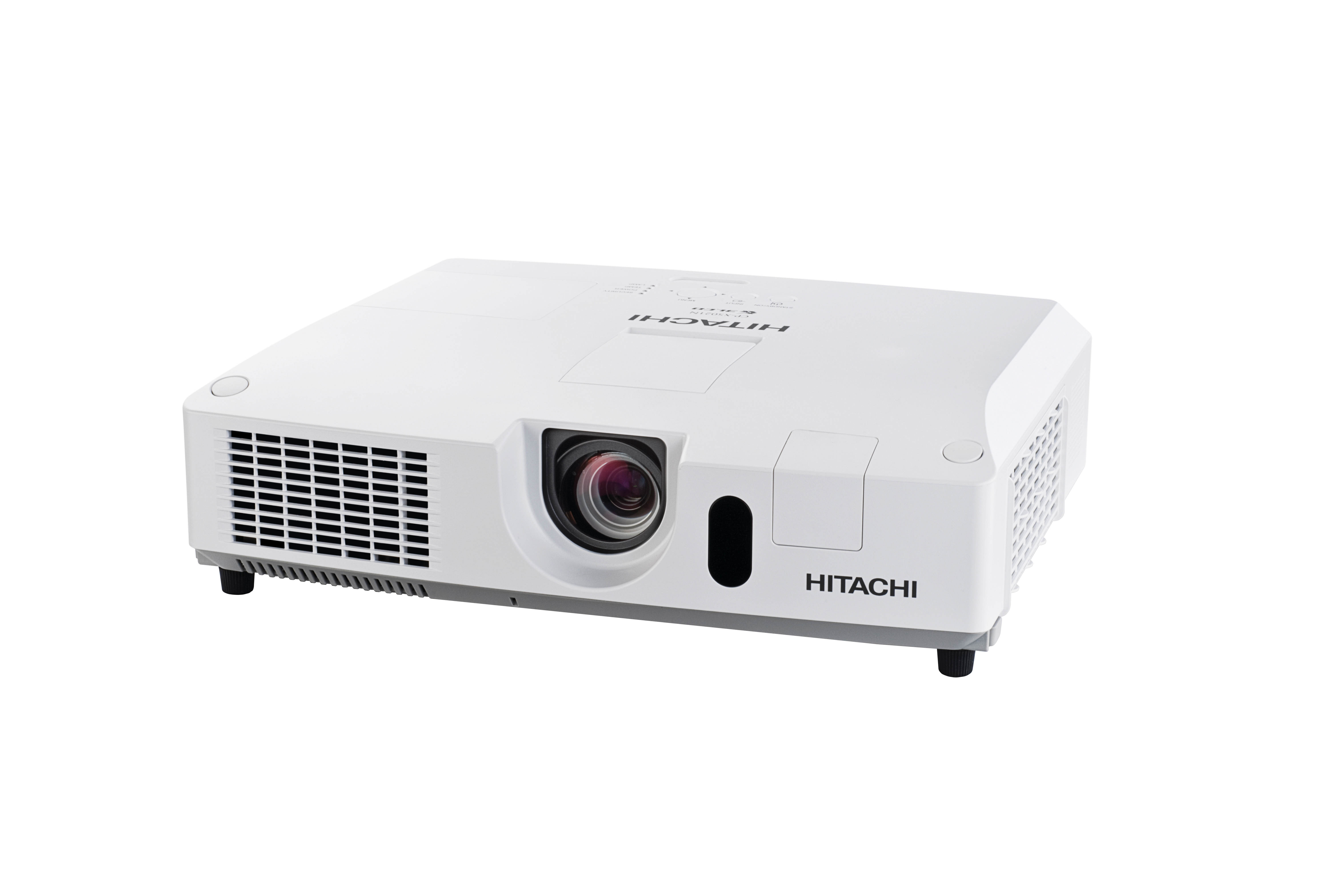

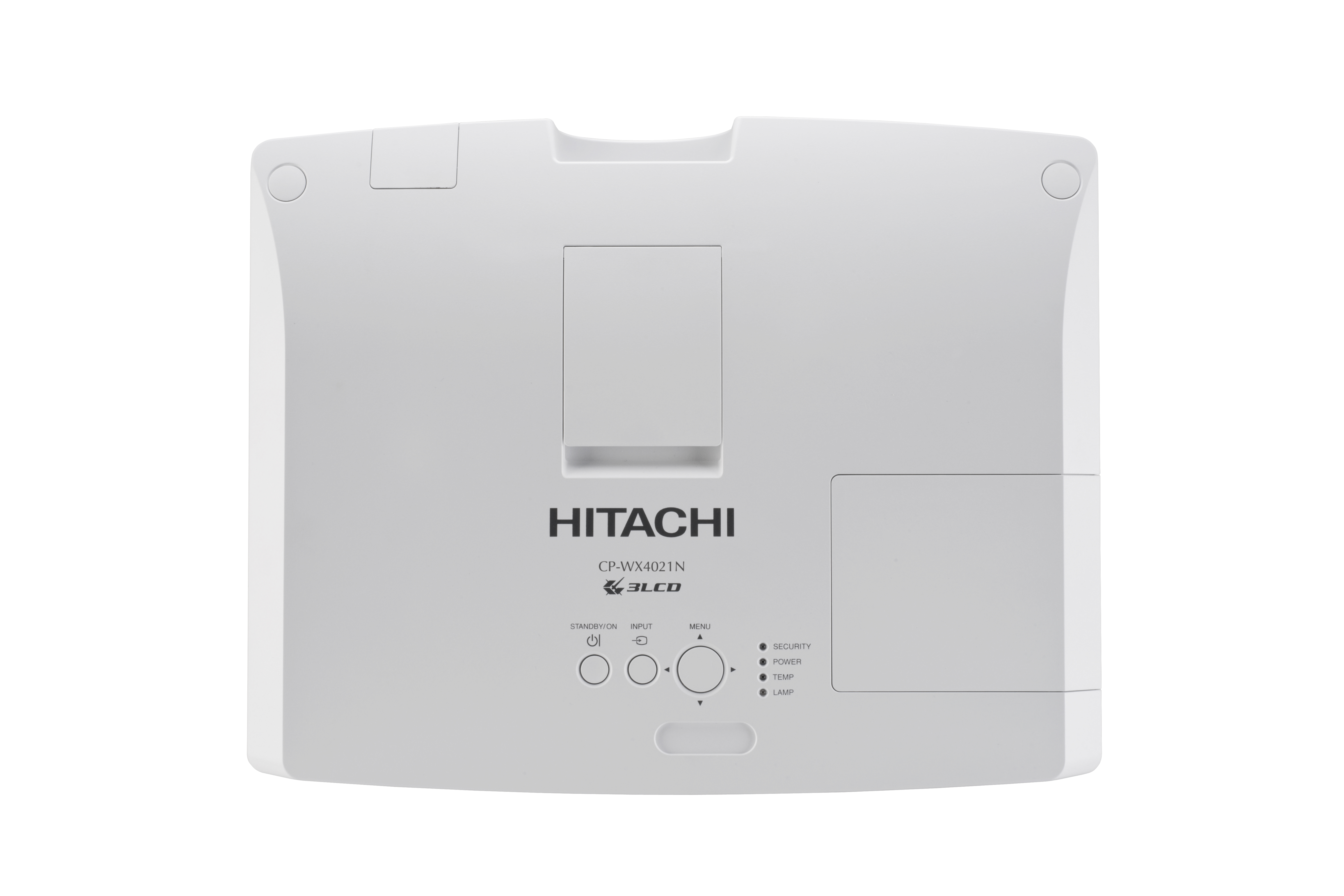

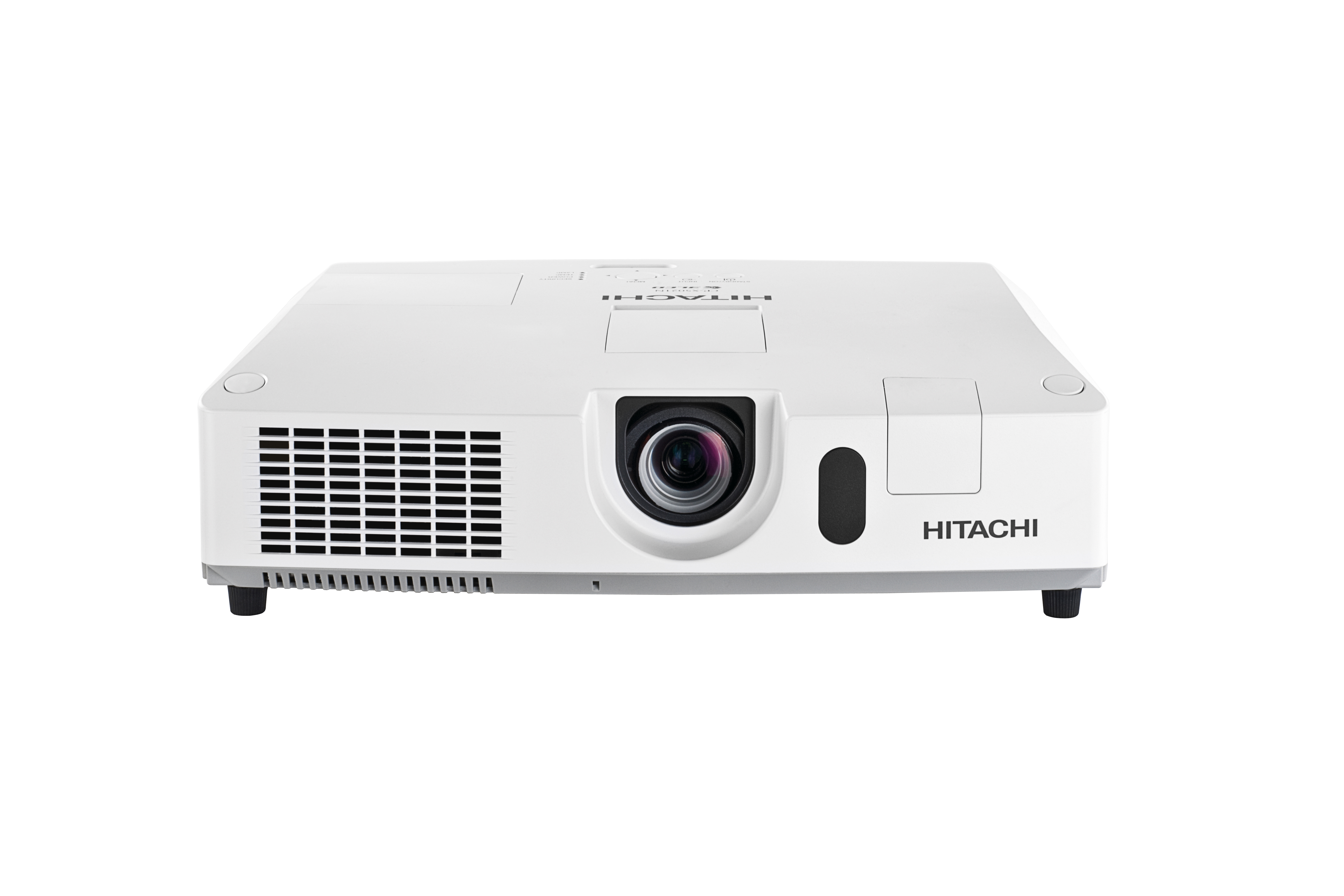

A brief introduction to the CP WX4021N: The Hitachi LCD projector offers 4000 Ansi-Lumen, a contrast of 2000:1 and a WXGA 1280 x 800 resolution. The integrated media player allows files to be played directly. With the lens shift function, the projector can be positioned very freely. As the CP WX4021N is equipped with a microphone jack plug and 16W speakers, no additional audio system is required for presentations or training courses. 643 cm picture width, the projector will be able to illuminate well. The projector can manage rooms with residual light with a smaller image width, we would recommend a maximum of 429 cm here. Playing 1080P is also no problem for the projector. It was launched in 2010 and is no longer offered by the manufacturer Hitachi, but is still very popular in our projector database.
|
| Display Type |
3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
4000 / 2800 im Eco Mode |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
2,0000 min. Lumen |
0,801 min. Lumen |
| Lens shift |
Vert.: +60% -35,7% Hori.: +/-5%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: JPEG BMP PNG GIF |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

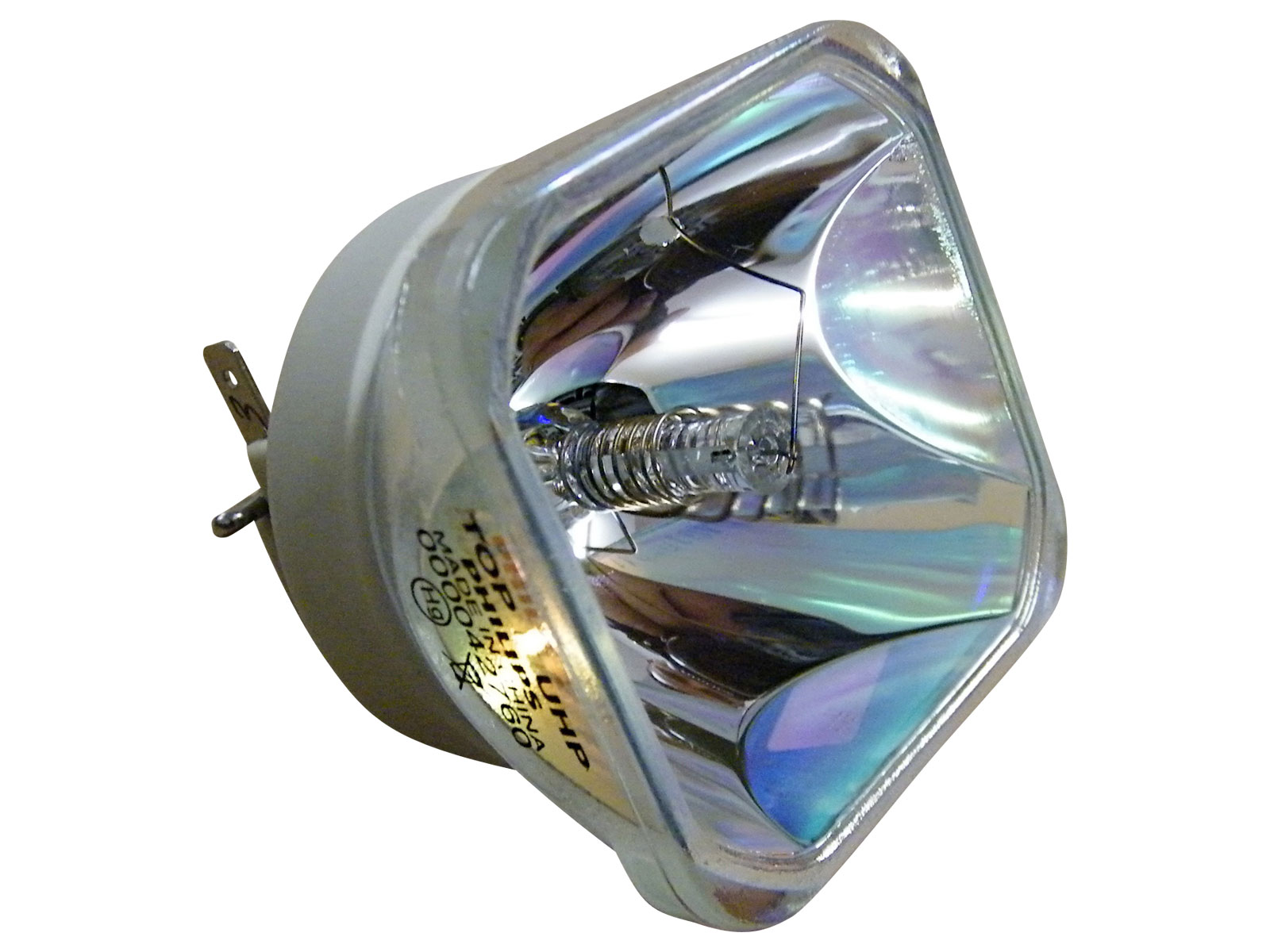

245W UHB Lamp
Article Nr.: DT01171
|
|
| Light Life |
3000 h. 5000 h. in Eco Mode |
| Operating Costs |
|
|
300 - 500 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,6-2,1 f=19-32 mm |
| Throw Ratio |
1,5-2,5:1 show |
| Audio |
16W |

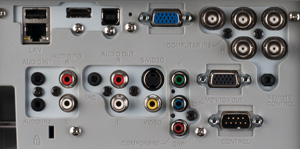

| Connections |
HDMI
D-sub 15 pin in 1 x out
5 x BNC RGBHV in
S-Video in
Cinch Video in
YUV in
Cinch Stereo in
RS232C Din 9pin in
Mini Jack Audio in
USB Typ A,B
RJ45 in
Mikrofon in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
360W / 5W standby |
| Size WxHxD |
400 x 103 x 318 mm (15,7"x4,1"x12,5") 13,1 L/dm³
|
| Operating Noise |
36 / 30 dB in Eco Mode |
Key: 252 cm
Shift: 75 cm |
Key: 252 cm
Shift: 10 cm |
| Key: 252 cm
Shift: 10 cm |
| |
|
|
| Weight |
4,60 kg / 10,14 lbs. |
| Keystone |
Vert.: +/-40° automatisch
Hori.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 31,5-106 kHz
V-sync: 56-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Integrated Mediaplayer
Freeze
Blank (Black screen button)
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Gamma correction
Dynamic iris
Password protection
PJLink™
Control via web browser
Lan network compatible.
Overscan adjustable
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Hitachi CP WX4021N compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
78 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
93 |
Power cons.: |
|
96 |
| Picture Total Points: | 48 |
Projector Total Points: | 69 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3328 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (3.24 MB)

|
Hitachi Website
