Brief Introduction
Beta 2.5 |
A brief introduction to the compact 660: The Geha LCD projector offers 1200 Ansi lumens, a contrast of 300:1 and an XGA 1024 x 768 resolution. 1200 Ansi lumens ensure that a picture width of 302 cm is also possible. However, if room light is available, the picture should be a maximum of 201 cm wide. This model is no longer offered by Geha.
|
| Display Type |
3 x 0,9" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
1200 |
Screen |
400 Lux (200 cm Screen width) |
| Contrast |
300:1 full on/off |
300:1 full on/off
|
| Black Level |
4,0000 min. Lumen |
1,347 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC 3.58/4.43 |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

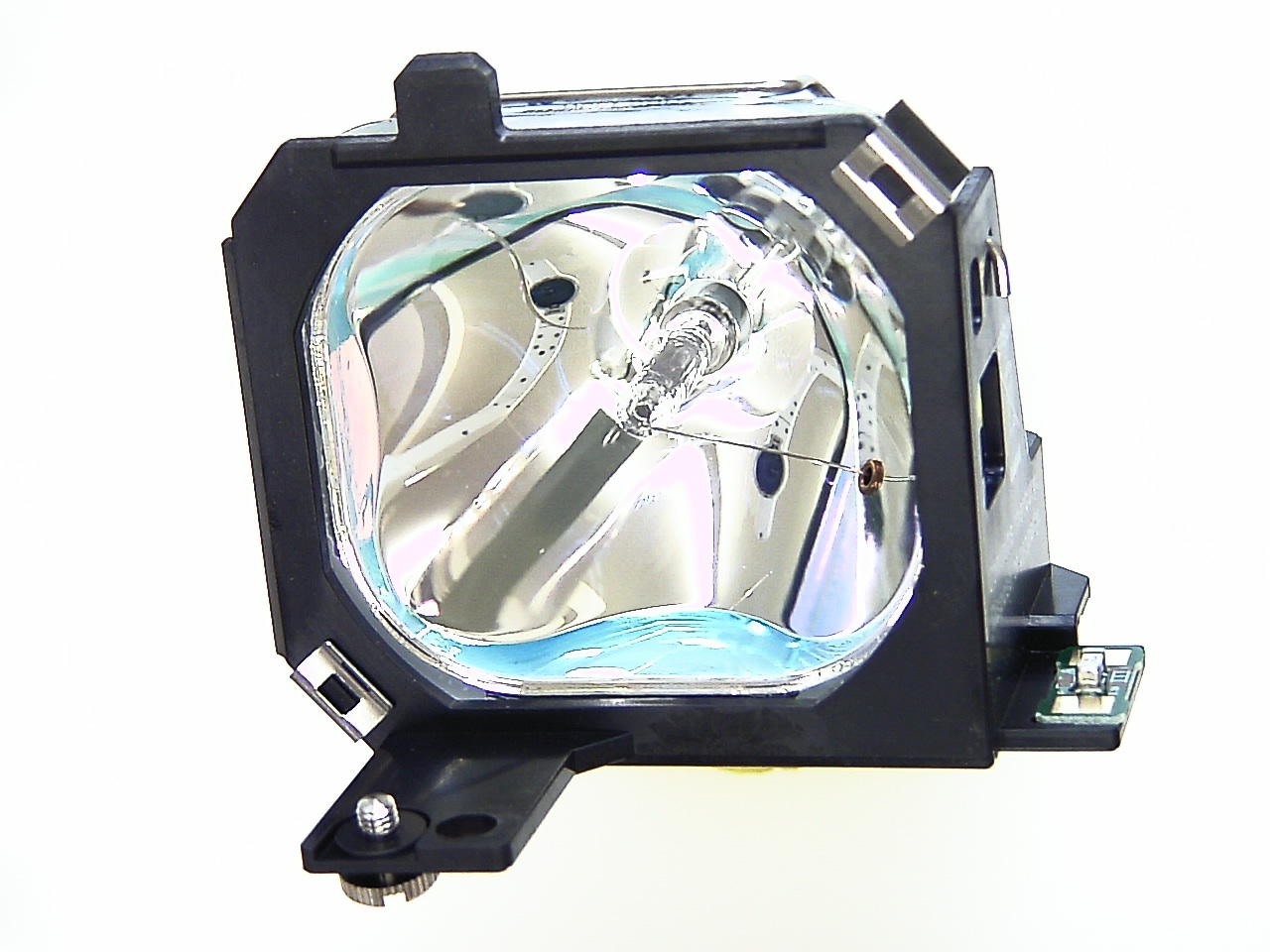

120W UHP Lamp
Article Nr.: 60 244793
|
|
| Light Life |
2500 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
400 Lux |
|
Room light max.: |
80 Lux |
|
Candela pro m²: |
127 cd/m² |
|
Foot-Lamberts: |
37 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
- |
| Connections |
2 x D-sub 15pin
1 x USB in
RS232C
S-Video in
Cinch Video in
2x Mini Jack in 1 x out
Cinch Stereo in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
272 x 154 x 412 mm (10,7"x6,1"x16,2") 17,26 L/dm³
|
| Operating Noise |
38dB |
|
| Weight |
4,90 kg / 10,8 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 43-130 Hz
|
| Foot-Lamberts |
37 fL
/ max. 302 cm screen width |
| Candela m² |
127 cd/m² |
| Features |
 Stepless digital zoom
|
|
- |
In Comparison
The Geha compact 660 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
13 |
Weight: |
|
76 |
| Contrast: |
|
1 |
dB: |
|
28 |
| Black level: |
|
85 |
Power cons.: |
|
0 |
| Picture Total Points: | 33 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
6696 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
|
Geha Website
