Brief Introduction
Beta 2.5 |

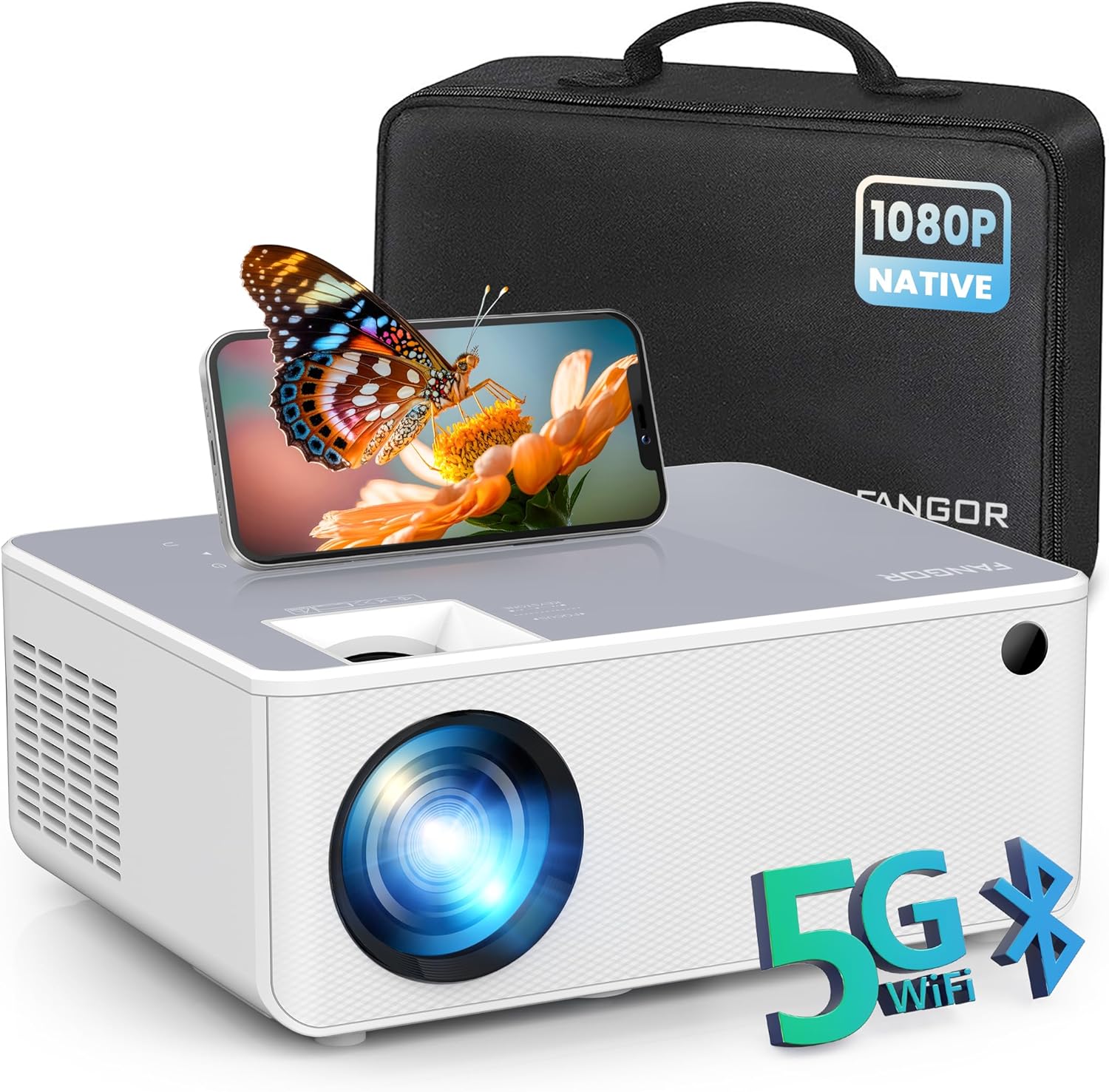

The FANGOR model F-506 is an LCD LED projector with HDTV 1920 x 1080 resolution and a contrast of 10000:1. Due to the LEDs, the projector is specified with 65000 hours of light life, which converts to over 44.5 years at 4 hours per day. The projector can illuminate a picture width of up to 223 cm well thanks to the 480 Ansi lumens. In room light, however, the picture width should ideally be less than 149 cm. As the projector recognizes Airplay and Miracast screen mirroring signals, it is possible to play videos with high resolution and surround sound directly from a smartphone, tablet or PC (Android, Windows and iOS) via Wi-Fi. Thanks to the Bluetooth function, the projector can also be flexibly paired with other speakers. The model is also Full HD 1080P compatible.
|
| Display Type |
1 x LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
480 |
Screen |
213 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,0480 min. Lumen |
0,021 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Game-Portabel | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light. |
| Light Source |
LED
|
|
| Light Life |
65000 h. |
| Operating Costs |
0,00 € LED
|
|
|
 |
|
Lux: |
213 Lux |
|
Room light max.: |
43 Lux |
|
Candela pro m²: |
69 cd/m² |
|
Foot-Lamberts: |
20 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
2 x 5W |
| Connections |
3x HDMI in
2x USB in
Audio Mini Jack in und out
Bluetooth 5.0
 |
| Ceiling Mounting |
- |
| Power |
- |
| Size WxHxD |
235 x 82,8 x 165,4 mm (9,3"x3,2"x6,5") 3,18 L/dm³
|
| Operating Noise |
- |
|
| Weight |
1,27 kg / 2,2 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
20 fL
/ max. 223 cm screen width |
| Candela m² |
69 cd/m² |
| Features |
 Full HD 1080P compatible
Wi-Fi network compatible.
- |
|
Miracast, Airplay |
In Comparison
The FANGOR F-506 compared to others current "Game-Portabel" projectors. |
| Ansi-Lumen: |
|
79 |
Weight: |
|
16 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
0 |
| Picture Total Points: | 59 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
14 |
| Ranking: |
67 (From: 419) |
|
|
|
| Status |
2024 Current model // Last update of the data: 2024-10-18
|
| Data |
 Product Sheet english HC
User Manual english (4.6 MB)

|
