Brief Introduction

Beta 2.5

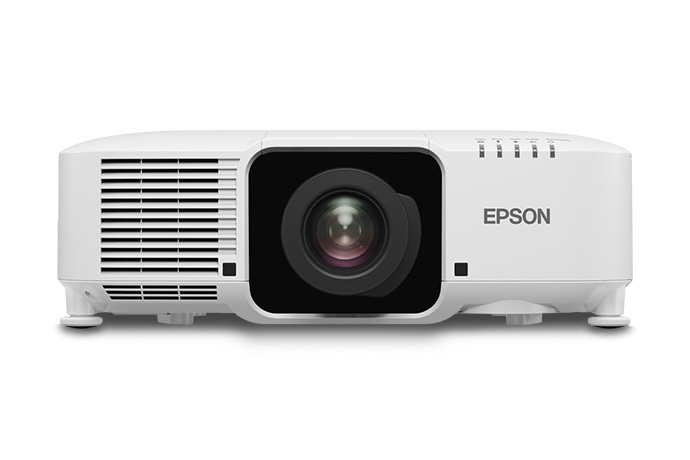

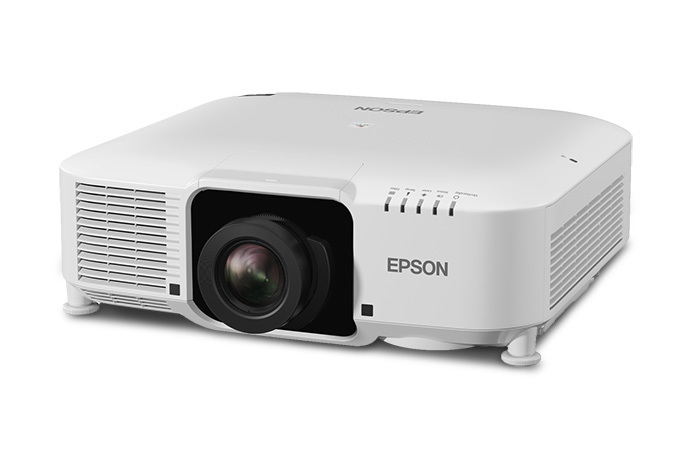

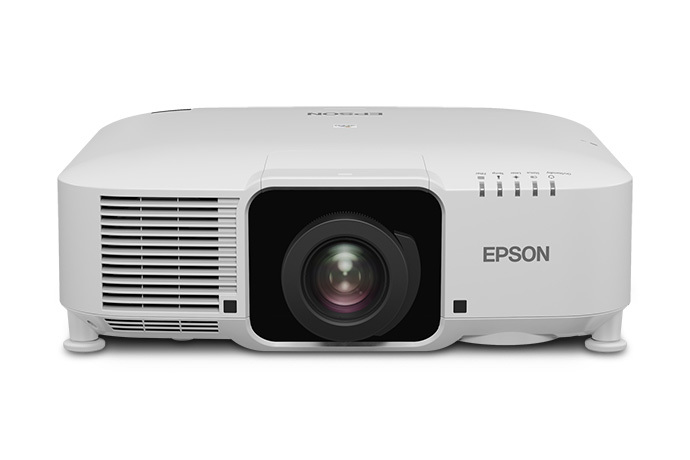

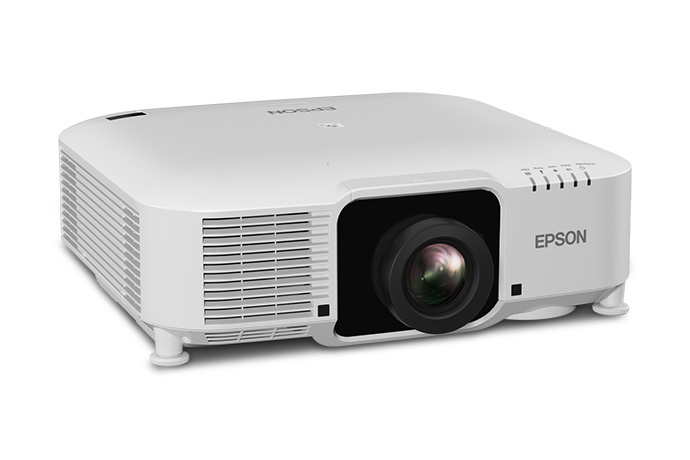

The stationary Pro L1060W laser LCD projector from Epson USA has 6000 Ansi lumens, a contrast of 2500000:1 and a WXGA 1280 x 800 resolution. The manufacturer Epson USA specifies a service life of 20000 hours, which converts to over 13.7 years at 4 hours per day. The integrated lens shift gives freedom when positioning the projector. Thanks to the brightness of 6000 Ansi lumens, an image width of 787 cm is possible. The projector can also handle slightly brighter rooms with a smaller picture width (we recommend max. 525 cm). Playing 1080P and 4K (compressed) is also no problem for the projector. Even projection onto the ceiling is possible thanks to the 360Â° projection. The model built in 2020 is no longer offered by Epson USA.

Display Type

3 x 0,76" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display

Ansi-Lumen

Projector

6000 / 4200 im Eco Mode

Screen

2400 Lux (200 cm Screen width)

Contrast

2500000:1 full on/off

Black Level

0,0024 min. Lumen

0,001 min. Lumen

Lens shift

Vert.: +/-67% Hori.: +/-30%

Resolution

WXGA 1280 x 800
1.024.000 Pixel
UHD (4K2K) 3840 x 2160 compressed

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.

Light Source

Laser

Light Life

20000 h. 30000 h. in Eco Mode

Operating Costs

0,00 € Laser

288 - 466 cm


	Lux:	2400 Lux
	Room light max.:	480 Lux
	Candela pro m²:	764 cd/m²
	Foot-Lamberts:	223 fL

84 cm

Screen width: 200 cm Gain:1

Focus

Powered

Zoom

Powered 1,6

Objective

F=1,7-2,3 f=24-38,20 mm

Throw Ratio

1,44-2,33:1 show

Audio

1 x 10W

Connections

HDMI HDCP 2.2 in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT in

Ceiling Mounting

Yes, is possible.

Power

361W / 263W in Eco Mode

Size WxHxD

545 x 164 x 436 mm (21,5"x6,5"x17,2") 38,97 L/dm³

Operating Noise

34 / 30 dB in Eco Mode

Key: 288 cm Shift: 84 cm
Key: 166 cm Shift: 60 cm		Key: 166 cm Shift: 60 cm
	Key: 288 cm Shift: 84 cm

Weight

16,90 kg / 37,26 lbs.

Keystone

Vert.: +/-45°
Hori.: +/-30°

Illumination

Frequenz

Foot-Lamberts

223 fL / max. 787 cm screen width

Candela m²

764 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion

Eco Mode

360° installable

24/7 continuous operation capable

Optional Wi-Fi network compatible.

Lan network compatible.

Crestron®-Software compatible.

Screen Mirroring

Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads

In Comparison

The Epson USA Pro L1060W compared to others not current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

100

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

164 (From: 2514)

Optional accessories
	object lens Original	V12H004UA3 / ELPLU03S	4.138,56 €
	object lens Original	ELPLU04 / V12H004U04	3.808,74 €
	object lens Original	ELPLW06 / V12H004W06	2.776,57 €
	object lens Original	ELPLW08 / V12H004W08	6.188,00 €
	object lens Original	V12H004Y01 / ELPLX01W	EOL €
	object lens Original	ELPLM15 / V12H004M0F	1.602,94 €
	object lens Original	V12H004M0B / ELPLM11	1.715,47 €
	object lens Original	V12H004M0A / ELPLM10	1.715,47 €
	object lens Original	V12H004M08 / ELPLM08	554,15 €
	object lens Original	V12H004W05 / ELPLW05	1.717,85 €
	object lens Original	V12H004U03 / ELPLU03	EOL €
	object lens Original	ELPLL08 / V12H004L08	2.776,57 €
	ceiling bracket length: 225 mm	Halterung45	85,80 €

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
ELPLM11	4.85-7.38:1	970-1476 m	+/-67%	+/-30%	Powered
ELPLM10	3.32-5.06:1	664-1012 m	+/-67%	+/-30%	Powered
ELPLM15	2.16-3.48:1	432-696 m	+/-67%	+/-30%	Powered
ELPLM08	1.45-2.32:1	290-464 m	+/-67%	+/-30%	Powered
ELPLW06	1.62-2.22:1	324-444 m	+/-67%	+/-30%
ELPLL08	7.21-10.11:1	1442-2022 m	+/-67%	+/-30%	Powered
ELPLW08	1.18-1.86:1	236-372 m	+/-67%	+/-30%	Powered
ELPLW05	1.04-1.46:1	208-292 m	+/-67%	+/-30%
ELPLU04	0.87-1.05:1	174-210 m	+/-67%	+/-30%	Powered
ELPLU03S	0.65-0.78:1	130-156 m	+/-67%	+/-30%
ELPLX01/ELPLX01W	0.35:1	70 m	+/-67%	+/-30%	No Zoom
