Brief Introduction
Beta 2.5 |

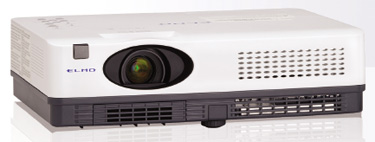

The CRP 26 LCD projector from Elmo has 2600 Ansi lumens, a contrast of 500:1 and an XGA 1024 x 768 resolution. Due to the brightness of 2600 Ansi lumens, a picture width of 444 cm is possible. In room light, the picture should be max. 296 cm wide. The model built in 2010 is no longer offered by Elmo.
|
| Display Type |
3 x 0,55" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2600 / 1606 im Eco Mode |
Screen |
867 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
5,2000 min. Lumen |
1,744 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
220W UHP Lamp
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
324 - 384 cm
|
 |
|
Lux: |
867 Lux |
|
Room light max.: |
173 Lux |
|
Candela pro m²: |
278 cd/m² |
|
Foot-Lamberts: |
81 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,0-2,15 f=18,38-22,06 mm |
| Throw Ratio |
1,62-1,92:1 show |
| Audio |
1W Mono |
| Connections |
D-sub 15 pin in
S-video in
Cinch Video in
RS232C Din 9 pin |
| Ceiling Mounting |
Yes, is possible. |
| Power |
215W in Eco Mode |
| Size WxHxD |
333,5 x 94,2 x 247,0 mm (13,1"x3,7"x9,7") 7,73 L/dm³
|
| Operating Noise |
34 / 29 dB in Eco Mode |
|
| Weight |
2,50 kg / 5,51 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
81 fL
/ max. 444 cm screen width |
| Candela m² |
278 cd/m² |
| Features |
 Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Gamma correction
Password protection
PJLink™
|
|
- |
In Comparison
The Elmo CRP 26 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
31 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
81 |
Power cons.: |
|
98 |
| Picture Total Points: | 38 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
5095 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
