Brief Introduction
Beta 2.5 |

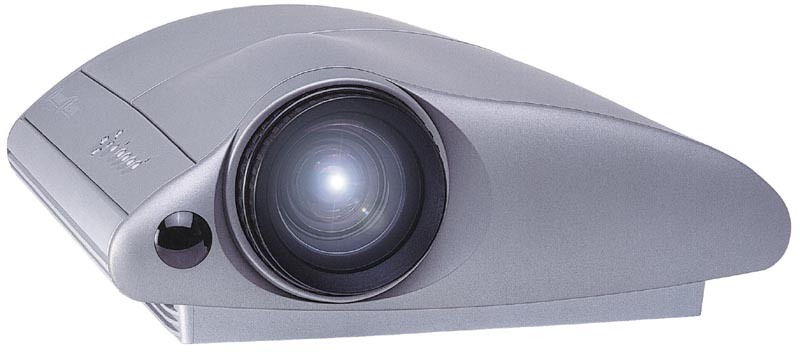

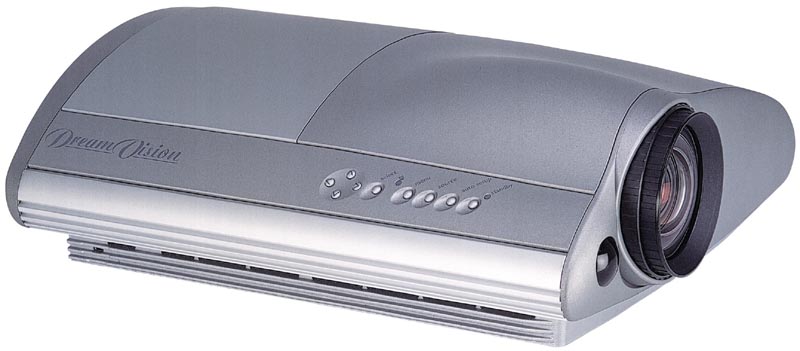

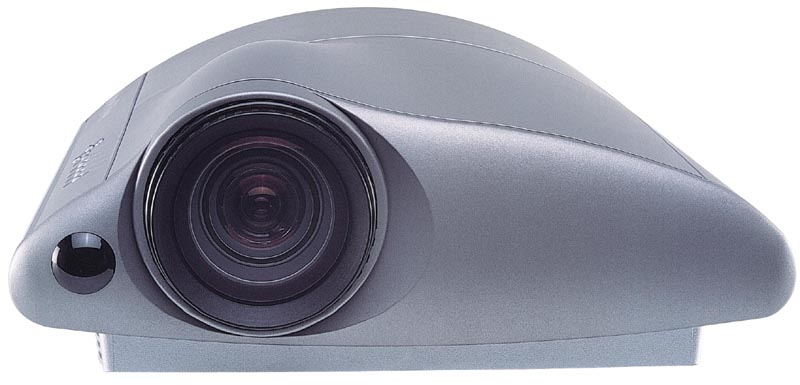

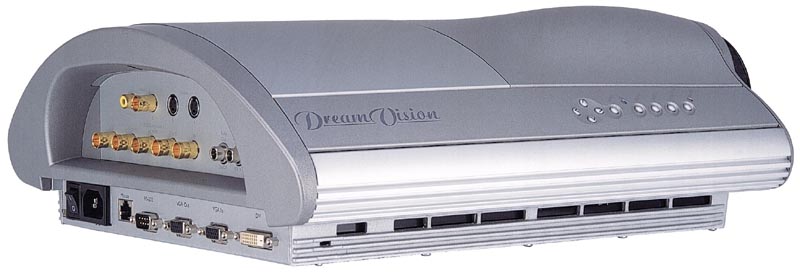

The DreamVision Cinema Ten Pro high-end home cinema DLP projector has 1100 Ansi lumens, a contrast of 1100:1 and an XGA 1024 x 768 resolution. Due to the brightness of 1100 Ansi lumens, a picture width of 289 cm is possible. In room light, the picture should be max. 193 cm wide. The projector was launched in 2002 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,9" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1100 / 720 im Eco Mode |
Screen |
367 Lux (200 cm Screen width) |
| Contrast |
1100:1 full on/off |
1100:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,335 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL /PAL-60 /PAL-M /PAL-N/ NTSC 3.58/ NTSC 4.43 / SECAMDTV 480i / 480p / 720p / 1080i |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

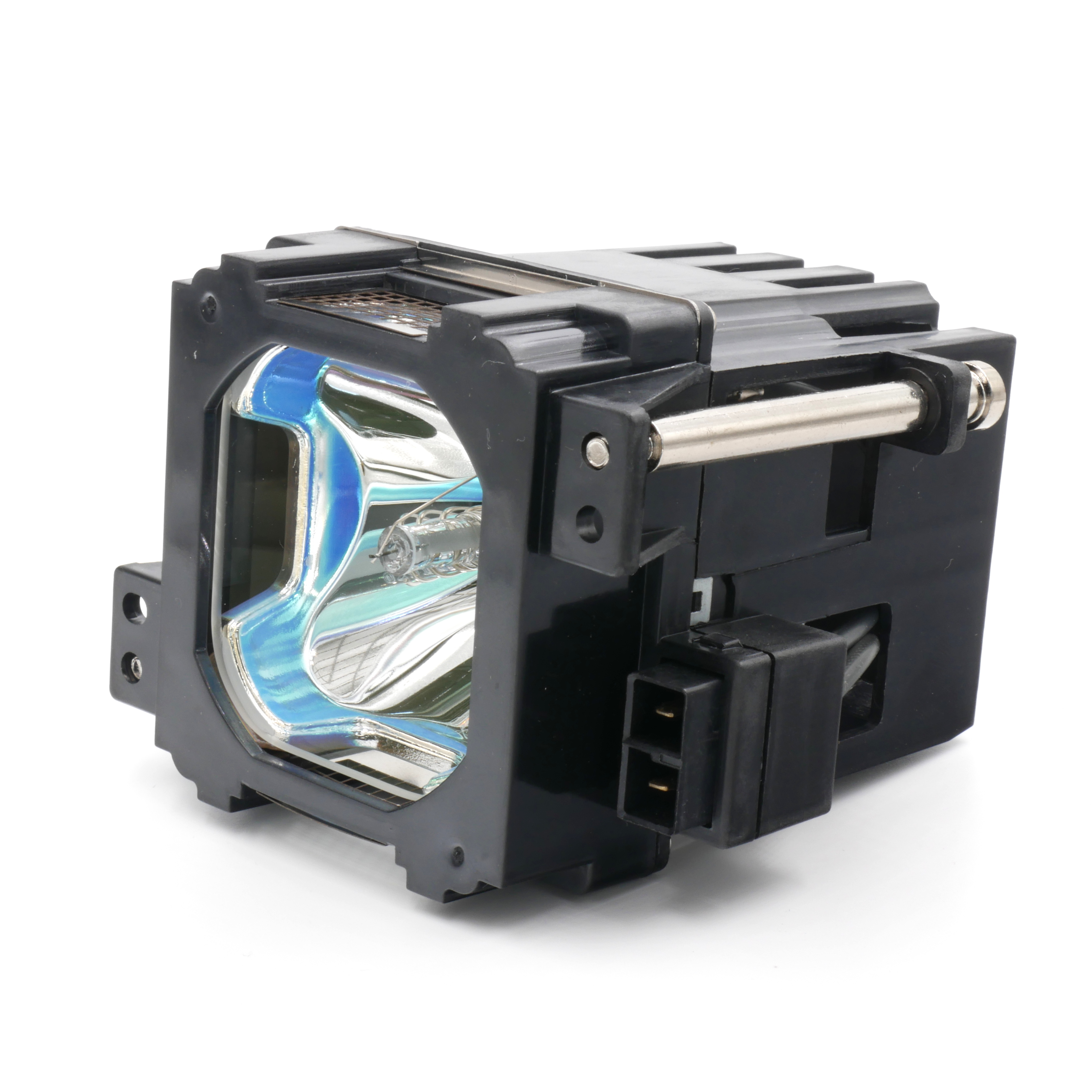

200W UHP Lamp
Article Nr.: LAMPCTP
|
|
| Light Life |
2000 h. |
| Operating Costs |
|
|
288 - 428 cm
|
 |
|
Lux: |
367 Lux |
|
Room light max.: |
73 Lux |
|
Candela pro m²: |
116 cd/m² |
|
Foot-Lamberts: |
34 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,5 |
| Objective |
f=26-39 mm |
| Throw Ratio |
1,44-2,14:1 show |
| Audio |
- |

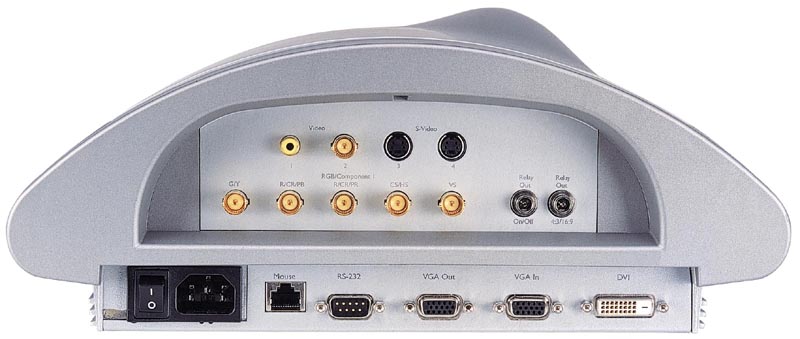

| Connections |
1 x DVI in
D-sub 15pin in
5 x BNC RGBHV in
Cinch Video in
S-Video in
RS232C in
12V Trigger in
Maus Port
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
400 x 130 x 325 mm (15,7"x5,1"x12,8") 16,9 L/dm³
|
| Operating Noise |
- |
|
| Weight |
4,50 kg / 9,92 lbs. |
| Keystone |
Vertical |
| Illumination |
98% |
| Frequenz |
H-sync: 15-85 kHz
V-sync: 43-100 Hz
|
| Foot-Lamberts |
34 fL
/ max. 289 cm screen width |
| Candela m² |
116 cd/m² |
| Features |
 Eco Mode
Gamma correction
|
|
- |
In Comparison
The DreamVision Cinema Ten Pro compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
7 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
72 |
Power cons.: |
|
0 |
| Picture Total Points: | 27 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
389 (From: 499) |
|
|
|
|
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2023-08-04
|
