Brief Introduction
Beta 2.5 |

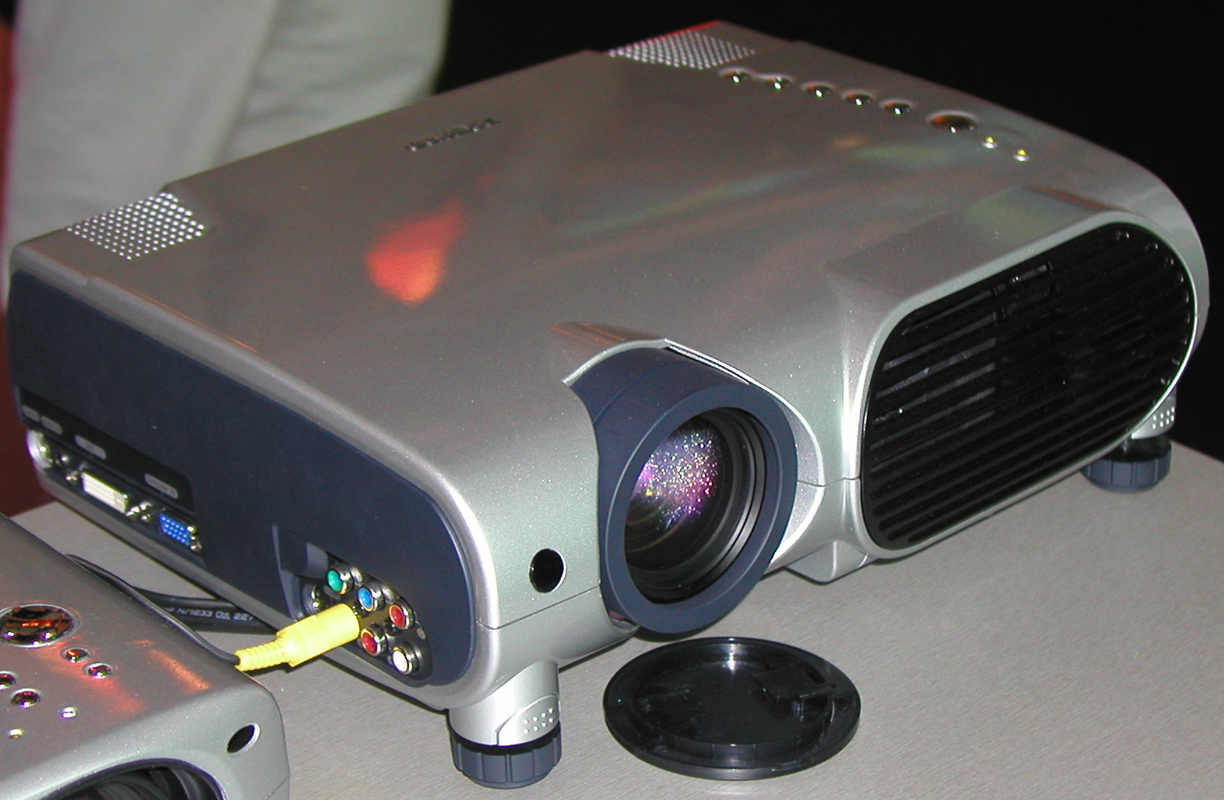

The Daewoo DSR 90P2LX standard portable LCD projector has 1100 Ansi lumens, a contrast of 400:1 and an XGA 1024 x 768 resolution. An image width of up to 289 cm is possible as the projector has 1100 Ansi lumens. However, if room light is available, the picture should be max. 193 cm wide. The projector is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,9" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
1100 |
Screen |
367 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
2,7500 min. Lumen |
0,924 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, PAL, SECAM Pal 60 NTSC 4,43 |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
- Lamp
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
367 Lux |
|
Room light max.: |
73 Lux |
|
Candela pro m²: |
116 cd/m² |
|
Foot-Lamberts: |
34 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
- |

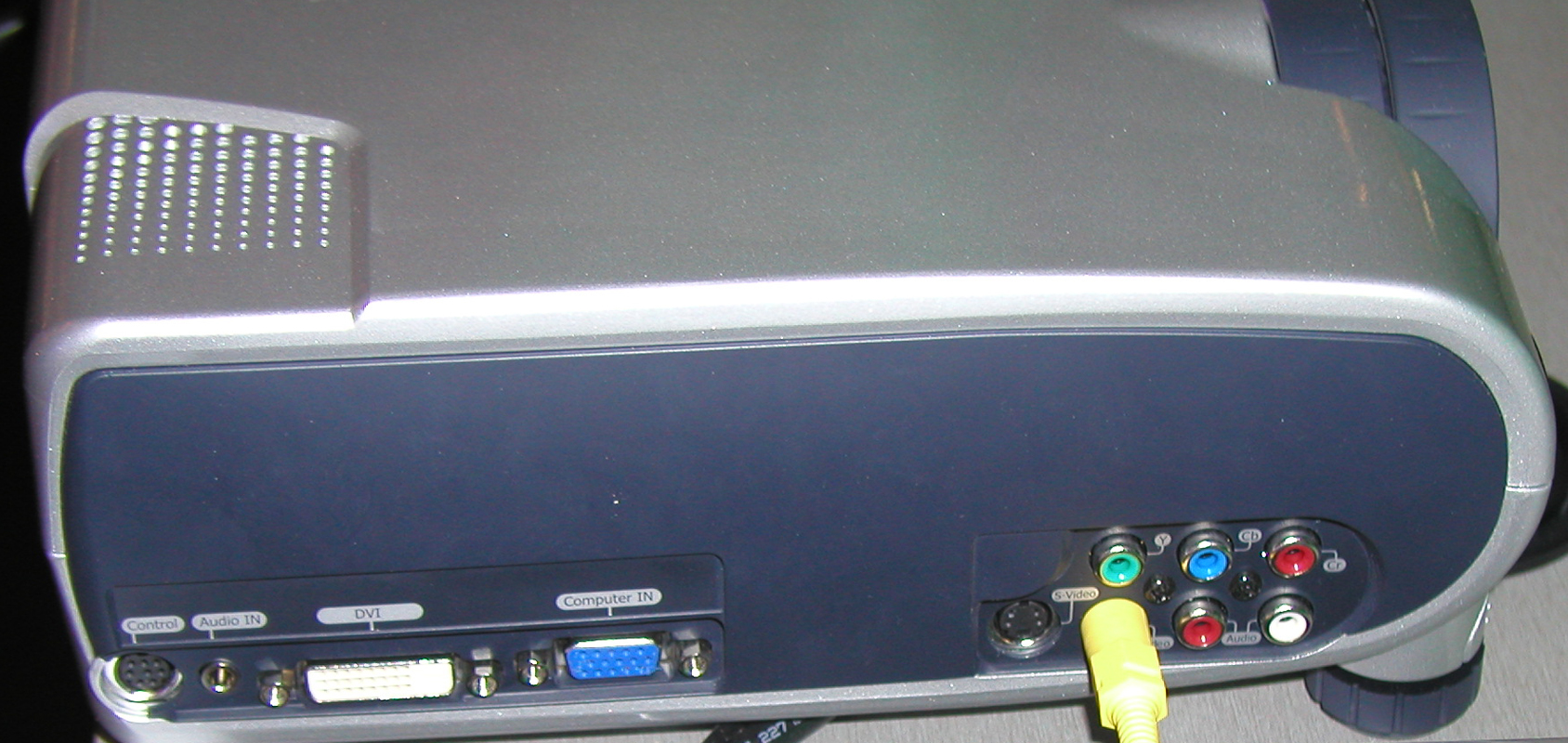

| Connections |
DVI in
YUV in
D-sub 15pin in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack in
Control in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
297 x 96 x 248 mm (11,7"x3,8"x9,8") 7,07 L/dm³
|
| Operating Noise |
- |
|
| Weight |
- |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
34 fL
/ max. 289 cm screen width |
| Candela m² |
116 cd/m² |
| Features |
- |
|
- |
In Comparison
The Daewoo DSR 90P2LX compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
11 |
Weight: |
|
0 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
90 |
Power cons.: |
|
0 |
| Picture Total Points: | 34 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5680 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC

|
