Brief Introduction
Beta 2.5 |
The ASK Proxima A2270 3D DLP projector has 2700 Ansi lumens, a contrast of 2500:1 and an XGA 1024 x 768 resolution. The lamp has a service life of up to 4000 hours, which is over 5.5 years if enjoyed for two hours a day. The projector can illuminate a picture width of up to 453 cm with its 2700 Ansi lumens. In room light, however, the image width should ideally be less than 302 cm. The model built in 2012 is no longer offered by ASK Proxima.
|
| Display Type |
1 x 0,55" DDP2431 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2700 |
Screen |
900 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
1,0800 min. Lumen |
0,36 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

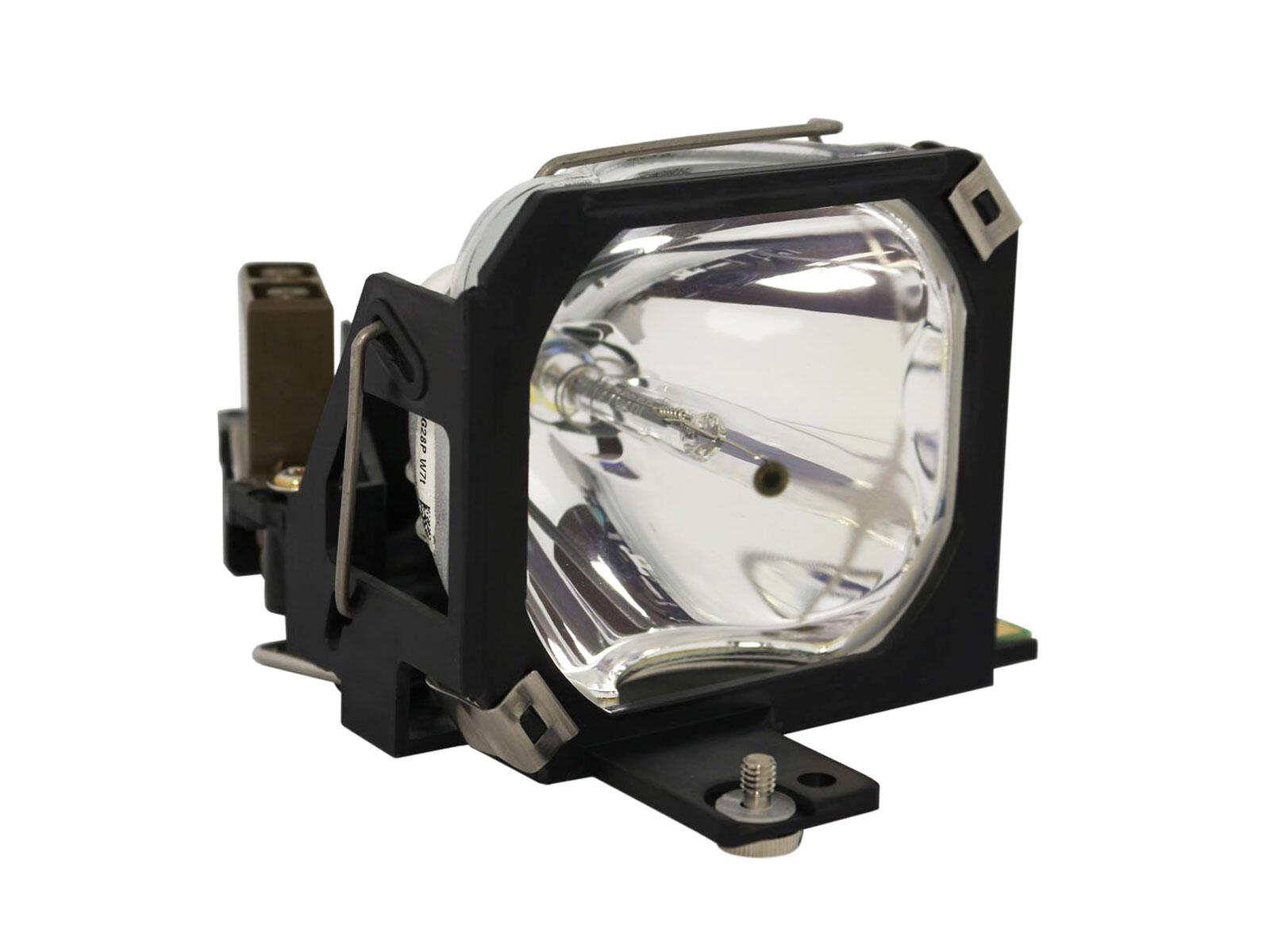

190W Lamp
Article Nr.: LAMP-009
|
|
| Light Life |
4000 h. 6000 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
900 Lux |
|
Room light max.: |
180 Lux |
|
Candela pro m²: |
288 cd/m² |
|
Foot-Lamberts: |
84 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
2 x 3W |
| Connections |
D-sub 15 pin in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in
USB Typ B
RS232C |
| Ceiling Mounting |
- |
| Power |
250W |
| Size WxHxD |
273 x 9235 x 222,5 mm (10,7"x363,6"x8,8") 559,7 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,55 kg / 5,62 lbs. |
| Keystone |
Vert.: +/-40° automatisch
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
84 fL
/ max. 453 cm screen width |
| Candela m² |
288 cd/m² |
| Features |
 Freeze
Blank (Black screen button)
Eco Mode
Automatic and manual vertical keystone correction
Password protection
|
|
- |
In Comparison
The ASK Proxima A2270 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
32 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 43 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2004 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
