Brief Introduction
Beta 2.5 |

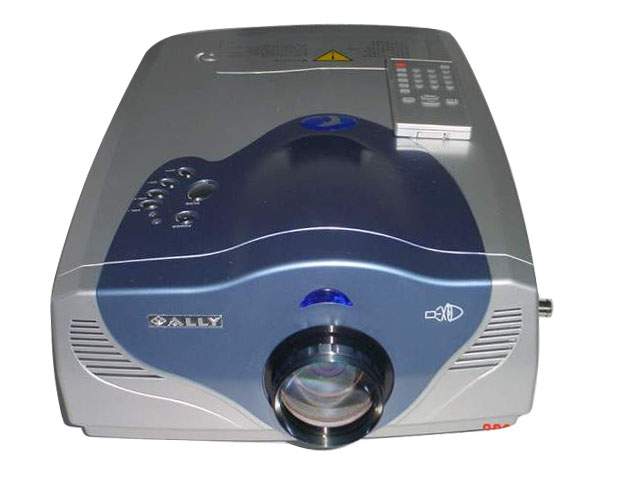

A brief introduction to the PTV01B: The Ally standard portable LCD projector offers 1200 Ansi lumens, a contrast of 500:1 and a WVGA 854 x 480 resolution. The lamp life is specified by the manufacturer as 6000 hours, which is over 8.2 years if enjoyed for two hours every day. 352 cm image width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 235 cm. This model is no longer available from Ally.
|
| Display Type |
LCD TFT Panel
WVGA 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
1200 |
Screen |
533 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
2,4000 min. Lumen |
1,071 min. Lumen |
| Offset |
-
|
| Resolution |
WVGA 854 x 480
409.920 Pixel
XGA 1024 x 768 compressed |
| Video Modes |
PAL, SECAM, NTSC, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |

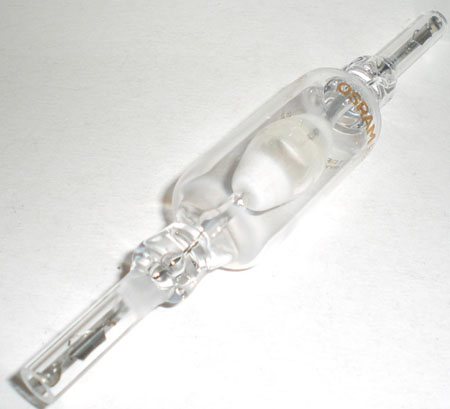

| Light Source |
-
Article Nr.: LMPf236
|
|
| Light Life |
6000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
533 Lux |
|
Room light max.: |
107 Lux |
|
Candela pro m²: |
171 cd/m² |
|
Foot-Lamberts: |
50 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
- |
| Zoom |
- |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
- |

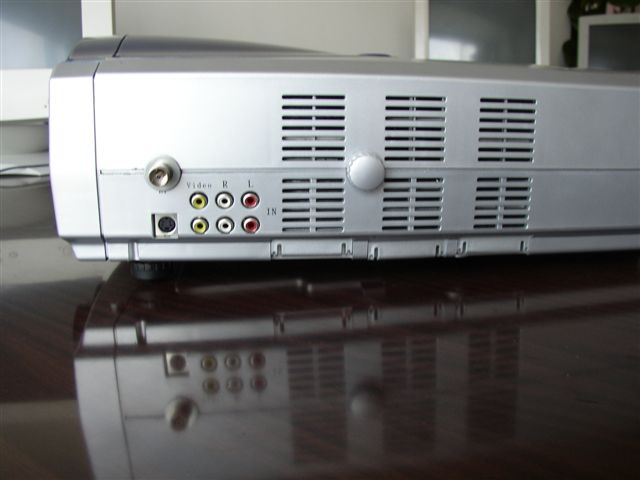

| Connections |
D-sub 15pin in
2 x Cinch Video in
2 x Cinch Stereo in
S-Video in
Antenne in
 |
| Ceiling Mounting |
- |
| Power |
- |
| Size WxHxD |
305 x 360 x 120 mm (12"x14,2"x4,7") 13,18 L/dm³
|
| Operating Noise |
- |
|
| Weight |
6,30 kg / 13,89 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 29-80 kHz
V-sync: 56-120 Hz
|
| Foot-Lamberts |
50 fL
/ max. 352 cm screen width |
| Candela m² |
171 cd/m² |
| Features |
- |
|
- |
In Comparison
The Ally PTV01B compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
13 |
Weight: |
|
70 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
91 |
Power cons.: |
|
0 |
| Picture Total Points: | 35 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5763 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC

|
|
|
Autor:
Manuel Guillen-Niubo 20.01.07 |
|
1 Stars |
Service / Spare parts |
|
Hello can someone help me. Where can I find spare parts for this projector?
Is there a general importer or an official workshop or branch of
Ally Industries in Germany / Europe
Answer:
E-Mail [email protected]
|
|
|
Autor:
cally 22.12.06 |
|
3.3 Stars |
I bought this device |
|
I have to say that there are certainly better ones but the picture is averagely good and if you take into account the cost of the lapse then it is even very good.
so for private use a great device !!!!
|
|
|
Autor:
Jörg 23.04.06 |
|
3.8 Stars |
Information about the projector |
|
According to the operating instructions, the device has 1200 Ansi Lumen and not 1000 as described on this page. I have just bought it as a new device from an Italian Ebay dealer for 440 euros. In my opinion, the device is acceptable if it is permanently installed, e.g. on the ceiling, as the adjustment options are relatively primitive. However, the picture quality is inferior to my Philips Garbo Matchline. However, as the replacement lamp from Philips costs over 500 euros and has only run for a maximum of 900 hours in my home, this projector can be considered a good compromise, as the lamp costs just 35 euros.
|
|
|
Autor:
kingrobbyd 18.01.06 |
|
2.3 Stars |
User manual |
|
Hello.Can someone send me the user manual for the device?
|
|
|
Autor:
matze 02.01.06 |
|
4.5 Stars |
does anyone have experience with the device |
|
does anyone have experience with the device ?
|
|
|
|
