Brief Introduction
Beta 2.5 |
The H5385ABDi 3D DLP has 4000 Ansi lumens, a contrast of 20000:1 and an HDTV 1920 x 720 resolution. The service life of the lamp is up to 15000 hours, which is over 20.5 years if enjoyed for two hours a day. 4000 Ansi lumens ensure that a picture width of 643 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. Video signals 1080P and 3D are also no problem for the projector.
|
| Display Type |
1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 / 3200 im Eco Mode |
Screen |
1778 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2000 min. Lumen |
0,089 min. Lumen |
| Offset |
69% show
|
| Resolution |
HDTV 1920 x 720
1.382.400 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Homecinema | Wide screen width or rooms with plenty of light (over 200 lumens). |

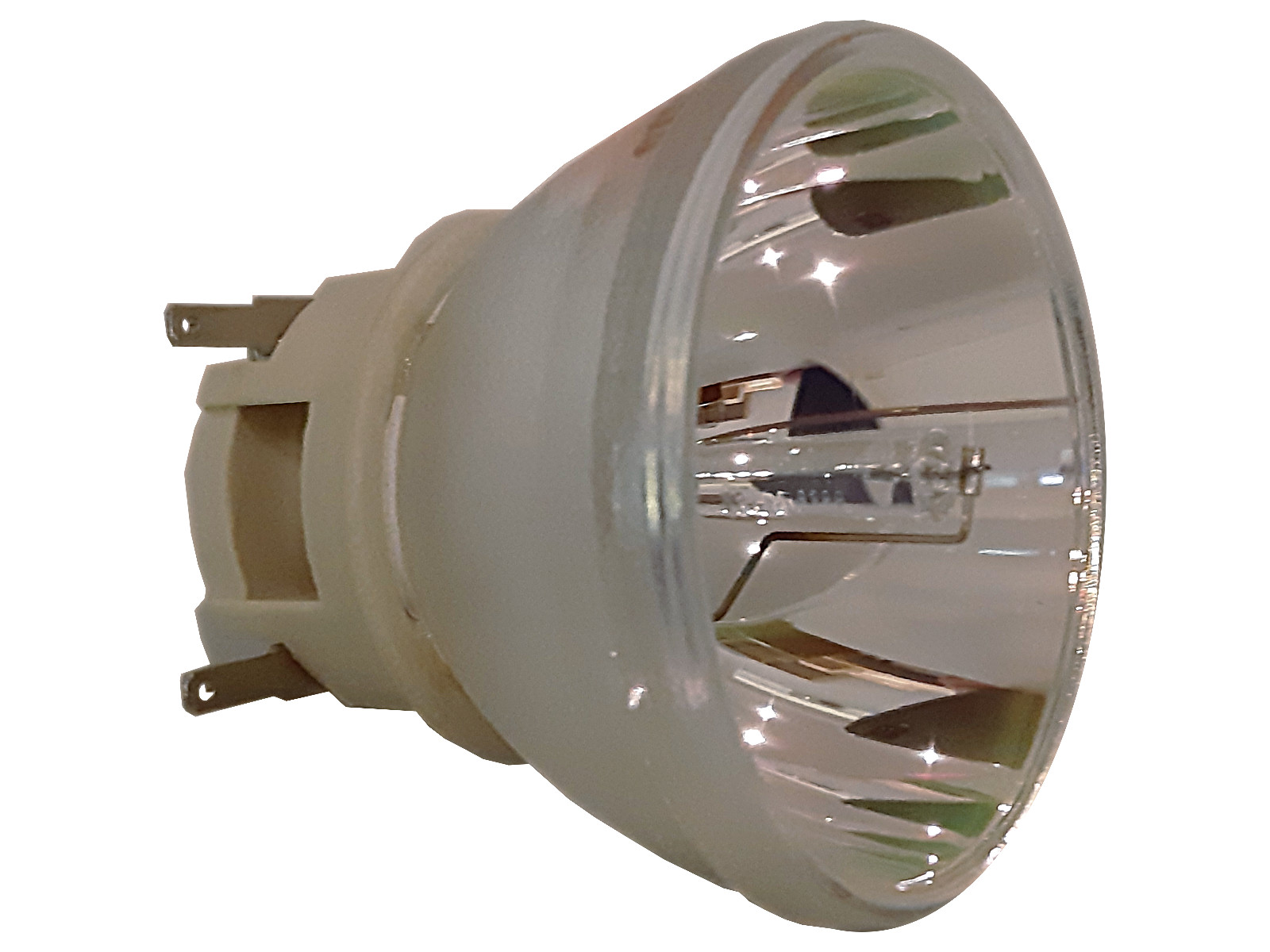

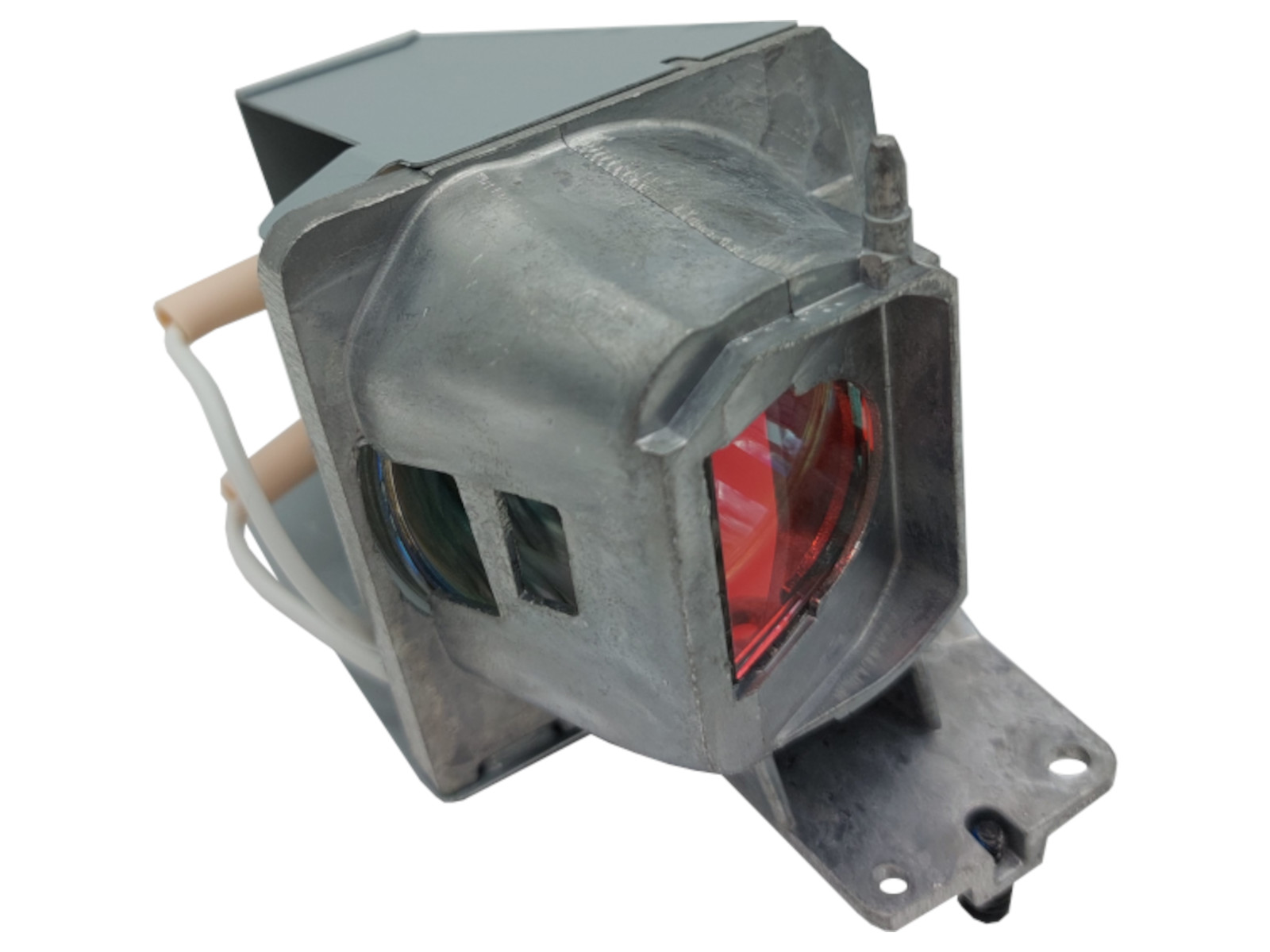

| Light Source |
220W Philips UHP Lamp
Article Nr.: UC.JR711.002
|
|
| Light Life |
6000 h. 15000 h. in Eco Mode |
| Operating Costs |
|
|
308 - 344 cm
|
 |
|
Lux: |
1778 Lux |
|
Room light max.: |
356 Lux |
|
Candela pro m²: |
565 cd/m² |
|
Foot-Lamberts: |
165 fL |
|
 |
| 78 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,12 |
| Objective |
F=2,41-2,53 f=21,85-24,01 mm |
| Throw Ratio |
1,54-1,72:1 show |
| Audio |
1 x 3W |
| Connections |
HDMI 1.4a in
D-sub 15pin in
Cinch Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
265W |
| Size WxHxD |
313 x 113 x 240 mm (12,3"x4,4"x9,4") 8,49 L/dm³
|
| Operating Noise |
35 / 27 dB in Eco Mode |
|
| Weight |
2,75 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40° automatisch
|
| Illumination |
80% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
165 fL
/ max. 643 cm screen width |
| Candela m² |
565 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Blackboard Modus
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Acer H5385ABDi compared to others current "Homecinema" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
43 |
| Black level: |
|
94 |
Power cons.: |
|
77 |
| Picture Total Points: | 44 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
85 (From: 110) |
|
|
|
|
|
| Status |
2020 Current model // Last update of the data: 2025-05-12
Created: 2022-08-18 12:49:15
|
