Vision VS2

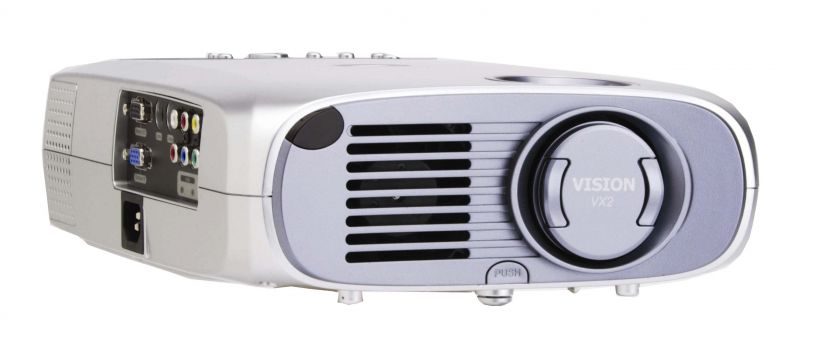

Image Vision VS2
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on LCD technology, the Vision VS2 device delivers 1500 ANSI lumens, a resolution of SVGA 800 x 600 and a contrast of 500:1 as a projector. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
A look at the light output reveals: The 1500 ANSI lumens are sufficient to illuminate an image width of up to 337 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 225 cm.
Since entering the market in 2004, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type       3 x 0,7" LCD TFT Panel
      SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1500
Screen
 500 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 3,0000 min. Lumen 1,006 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC,
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 180W UHE Lamp
Article Nr.: VS2
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Perfect
290 - 386 cm
Lux: 500 Lux
Contrast: 500:1
Candela pro m²: 158 cd/m²
Foot-Lamberts: 46 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,3
Objective f=21,5-28 mm
Throw Ratio 1,45-1,93:1 show
Audio 2 x 1W
Connections D-sub 15pin in und out
YUV in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack
Ceiling Mounting Yes, is possible.
Power 240W
Size WxHxD 240 x 80 x 280 mm (9,4"x3,1"x11") 5,38 L/dm³
Operating Noise 35dB
Key: 78 cm

Without offset

Key: 78 cm
Weight 2,80 kg / 6,17 lbs.
Keystone Vert.: +/-15°  automatisch
Illumination 85%
Frequenz H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 157 MHz
Foot-Lamberts 46 fL / max. 337 cm screen width
Candela m² 158 cd/m²
Features Freeze
Automatic and manual vertical keystone correction
Picture-in-Picture
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Vision VS2 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
17 Weight:
87
Contrast:
1 dB:
36
Black level:
89 Power cons.:
98
Picture Total Points:36 Projector Total Points:74
Popularity Top 100
6 popularity points 4 popularity points 0 popularity points 1 popularity points 2 popularity points 3 popularity points
Points:
3
Ranking: 5790 (From: 7736)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2004 Discontinued (EOL) // Last update of the data: 2026-06-09
