KOGATA AC301 Green

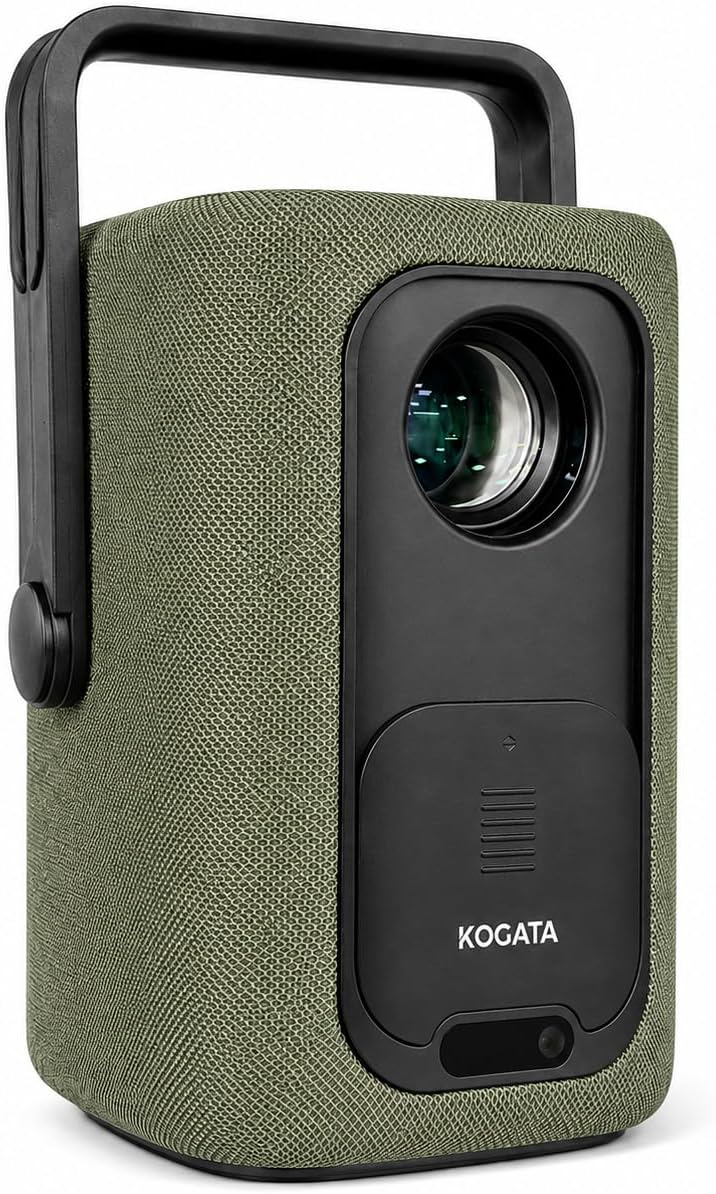

Image KOGATA AC301 Green
Customer review
Offer Ads
Discover the popular projector on Amazon.
Model Overview With the AC301 Green, KOGATA offers a LCD projector that features 1200 ANSI lumens, a contrast of 4000:1 and a resolution of HDTV 1920 x 1080. Thanks to LED technology, the projector is rated for a lifespan of up to 30000 hours, covering an estimated 20.5 years based on a 4-hour daily runtime.
To ensure a rectangular image even with asymmetrical placement, the projector includes digital keystone correction for both the horizontal and vertical axes. With its short projection distance, the short-throw model excels in smaller rooms, requiring only 220 cm of wall distance for an image width of 2 meters.
Looking at practical performance, up to 203 cm can be illuminated with 1200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 135 cm.
For media input, video signals up to 1080P are supported. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type 1 x LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
1200
Screen
533 Lux (200 cm Screen width)
Contrast 4000:1 4000:1
Black Level 0,3000 min. Lumen 0,133 min. Lumen
Offset 0,0% Centre of the screen →
SCREEN
+ Projector
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
Application Short Distance | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source LED
Light Life 30000 h.
Operating Costs 0,00 € LED
Calculated brightness quality Perfect
220 cm (no Zoom)
Lux: 533 Lux
Contrast: 4000:1
Candela pro m²: 171 cd/m²
Foot-Lamberts: 50 fL
0 cm

Screen width:cm
          Room:
•
Focus Automatic
Zoom No Zoom 50%-100% Digital
Objective -
Throw Ratio 1,1:1
Audio -
Connections HDMI (eARC) in
Mini Jack Audio out
USB in
Bluetooth 5.4
Ceiling Mounting -
Size WxHxD 117,1 x 195,1 x 134,9 mm (4,6"x7,7"x5,3") 3,06 L/dm³
Power -
Keystone

+
+
SCREEN

Operating Noise -
Weight 1,40 kg / 2,2 lbs.
Keystone Vertical and horizontal
Illumination 60%
Frequenz -
Foot-Lamberts 50 fL / max. 203 cm screen width
Candela m² 171 cd/m²
Features Full HD 1080P
Lens Shift Function geschätzt
W-Lan Netzwerk kompatibel.
Smart OS
Auto 6D Keystone
Auto Obstacle Avoidance
Auto Screen Fit
Screen Mirroring Miracast, Airplay, Windows
