Brief Introduction
Beta 2.5 |
The Sharp PG F325W BrilliantColor DLP projector has 3000 Ansi lumens, a contrast of 2200:1 and a WXGA 1280 x 800 resolution. 3000 Ansi lumens ensure that a picture width of 556 cm is also possible. However, if room light is available, the picture should be a maximum of 371 cm wide. Playing 1080P is also no problem for the projector. This model is no longer offered by Sharp.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 / 2400 im Eco Mode |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
2200:1 full on/off |
2200:1 full on/off
|
| Black Level |
1,3636 min. Lumen |
0,546 min. Lumen |
| Offset |
51,5% show
|
| Resolution |
WXGA 1280 x 800
1.049.088 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

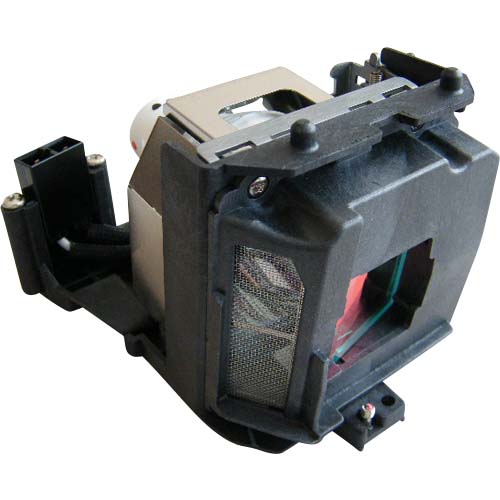

275W Lamp
Article Nr.: AN-F310LP
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
|
|
289 - 330 cm
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 64 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,15 |
| Objective |
F=2,4-2,6 f=20,4-23,5 mm |
| Throw Ratio |
1,445-1,649:1 show |
| Audio |
2W Mono |
| Connections |
DVI-I mit HDCP in
D-sub 15pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
Mini jack Audio in
USB
RJ45
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
316W |
| Size WxHxD |
315 x 119 x 295 mm (12,4"x4,7"x11,6") 11,06 L/dm³
|
| Operating Noise |
35 / 30 dB in Eco Mode |
|
| Weight |
2,90 kg / 6,39 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-110 kHz
V-sync: 45-85 Hz
Range max.: 170 MHz |
| Foot-Lamberts |
111 fL
/ max. 556 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Freeze
Eco Mode
Kensington Slot
sRGB
BrilliantColor™
PJLink™
Control via web browser
Lan network compatible.
|
|
- |
In Comparison
The Sharp PG F325W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
36 |
| Black level: |
|
95 |
Power cons.: |
|
97 |
| Picture Total Points: | 44 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5831 (From: 7662) |
|
|
|
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
|
Sharp Website
