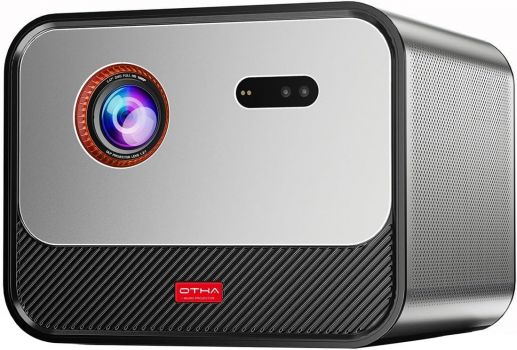

This projector from OTHA utilizes 3D-LED-DLP technology, achieving 2200 ANSI lumens and a contrast of 20000:1 at a resolution of HDTV 1920 x 1080. The built-in LED technology features a light source lifespan of 20000 hours – equivalent to a usable life of 13.7 years at 4 hours a day. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. A look at the light output reveals: The 2200 ANSI lumens are sufficient to illuminate an image width of up to 477 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 318 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Thanks to support for Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
Display Type
1 x 0,47" TI DMD DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2200
Screen
978 Lux (200 cm Screen width)
Contrast
20000:1 FOFO
20000:1 FOFO
Black Level
0,1100 min. Lumen
0,049 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Video Format Support
Support AVI,H.264,VC-1,MPEG-2,MPEG- 4 ,DIVD/DIVX，
PMP,FLV,MP4,M4V,VOB,3GP,MKV，H.265/VP9 1080p
Audio Format Support
MP1,MP2,MP3,OGG,AAC,M4A,FLAC ,AMR,DTS,WAV
Photo Format Support
Supports variety of image formats browsing JPEG png bmp etc
3D Compatibility
Side-by-Side | Top-and-Bottom |
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Light Source
3LED OSRAM RGB
Light Life
20000 h.
Operating Costs
0,00 € LED
Calculated brightness quality The screen width may also be larger. Perfect
240 cm (no Zoom)
Lux:
978 Lux
Contrast:
20000:1
Candela pro m²:
312 cd/m²
Foot-Lamberts:
91 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,2:1
Audio
2 x 10W
Connections
HDMI (eARC) in
S/PDIF
Audio Mini Jack out
2x USB in
RJ45
Bluetooth
Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction High Dynamic Range (HDR) Wi-Fi network compatible. Lan network compatible. Android 11.0 TOF Laser Autofocus
Full HD 1080P compatible
