Brief Introduction
Beta 2.5 |

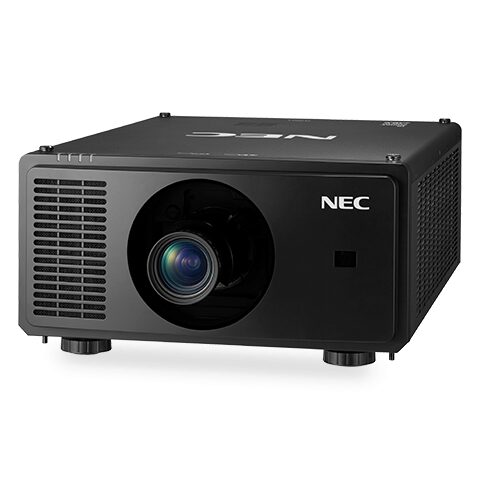

The Nec model PX2201UL is a DLP laser projector with WQXGA 2560 x 1600 resolution and a contrast of 10000:1. It is a laser projector with 20000 hours of light life, which is over 13.7 years with four hours of enjoyment per day. Includes a lens shift and keystone correction function, which provides freedom during installation. An image width of up to 1277 cm is possible, if the image width is smaller (we recommend max. 851 cm), rooms with residual light are also no problem. If the image is still too small, the integrated edge blending software can help to project a large image with additional projectors. It is also Full HD 1080P compatible. Even projection onto the ceiling is possible thanks to the 360° projection.
|
| Display Type |
1 x 0,96" DMD DLP Chip
WQXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
20500 |
Screen |
6833 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
2,0500 min. Lumen |
0,684 min. Lumen |
| Lens shift |
Vert.: +50% -0% Hori.: +/-10%
|
| Resolution |
WQXGA 2560 x 1600
4.096.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
RB Laser
Article Nr.: 7N901322
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
6833 Lux |
|
Room light max.: |
1367 Lux |
|
Candela pro m²: |
2176 cd/m² |
|
Foot-Lamberts: |
635 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual |
| Objective |
optional |
| Throw Ratio |
optional |
| Audio |
Built-in loudspeaker |

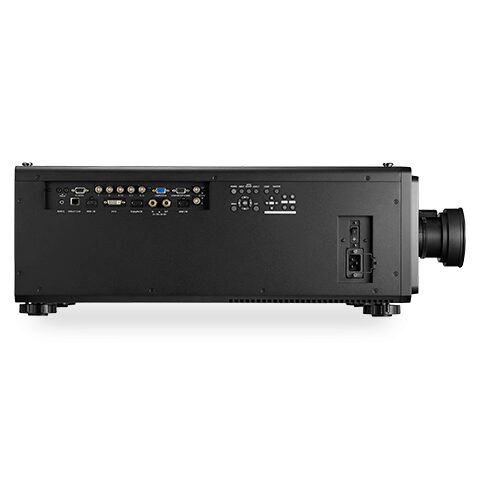

| Connections |
2x HDMI in (V2.0) HDCP(V1.4/2.2)
1x DisplayPort (HDCP(V1.4/2.2)
1x DVI in
1x D-sub 15pin in und out
1x 5BNC
1x HDbaseT (HDCP(V1.4/2.2))
1x USB in
1x RS232C Din 9 pin in
1x RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1900W |
| Size WxHxD |
530 x 248 x 748 mm (20,9"x9,8"x29,4") 98,32 L/dm³
|
| Operating Noise |
48 / 46 dB in Eco Mode |
Shift: 75 cm
|
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
51,00 kg / 112,44 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-60°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-153 kHz
V-sync: 48-120 Hz
|
| Foot-Lamberts |
635 fL
/ max. 1247 cm screen width |
| Candela m² |
2176 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Blackboard Modus
User logo
Eco Mode
Warping
360° installable
24/7 continuous operation capable
Edge Blending
Picture-in-Picture
Remote control with mouse control
Lan network compatible.
Crestron®-Software compatible.
DiCom Simulation
Virtual Remote
AutoSense
Advanced AccuBlend
Lens Memory
Portrait Mode
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Nec PX2201UL compared to others current "Event" projectors. |
| Ansi-Lumen: |
|
22 |
Weight: |
|
78 |
| Contrast: |
|
1 |
dB: |
|
55 |
| Black level: |
|
92 |
Power cons.: |
|
67 |
| Picture Total Points: | 38 |
Projector Total Points: | 67 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
151 (From: 153) |
|
|
|
|
|
| Status |
2022 Current model // Last update of the data: 2025-06-12
Created: 2022-04-28 14:04:36
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
Product Sheet Lens
Quick Start Guide
User Manual english (4.24 MB)

|
Nec Website
