Brief Introduction
Beta 2.5 |

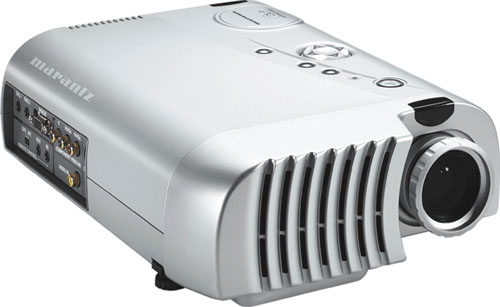

The standard portable VP 8100 DLP projector from Marantz has 700 Ansi lumens, a contrast of 500:1 and an XGA 1024 x 768 resolution. The projector can illuminate a picture width of up to 230 cm well thanks to the 700 Ansi lumens. In room light, however, the picture width should ideally be less than 153 cm. This model is no longer offered by Marantz.
|
| Display Type |
1 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
700 |
Screen |
233 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
1,4000 min. Lumen |
0,469 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC 3.58/4.43 HDTV 1080i 720P und DTV compatibel |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

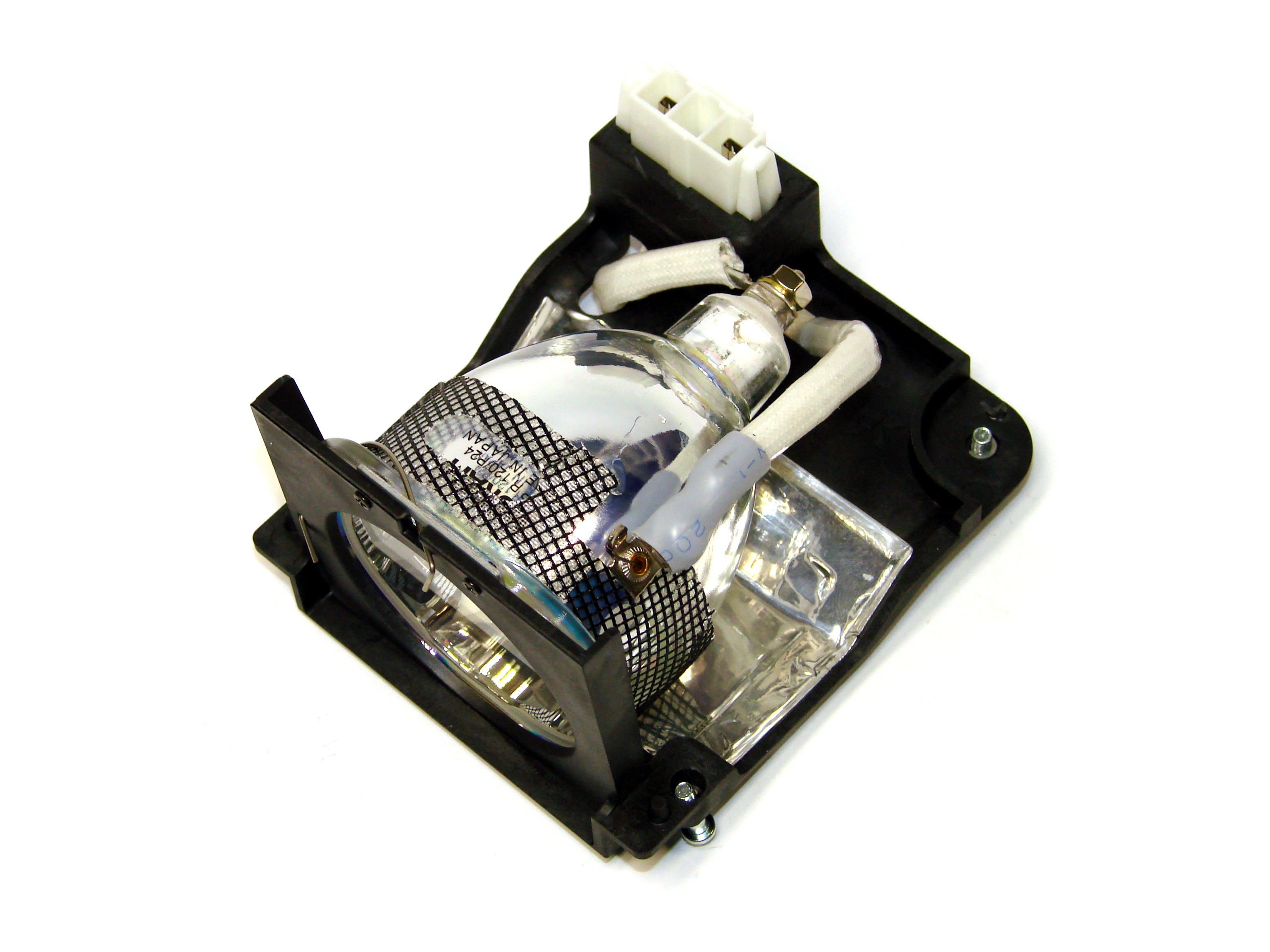

120W P-VIP Lamp
Article Nr.: LMP2264
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
233 Lux |
|
Room light max.: |
47 Lux |
|
Candela pro m²: |
75 cd/m² |
|
Foot-Lamberts: |
22 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,18 |
| Objective |
F=3,0-3,3 f=28-33 mm |
| Throw Ratio |
- |
| Audio |
- |
| Connections |
D-sub 15pin in
YUV über 3 x Cinch
S-Video
Cinch Video in
2 x Trig out
Fernbedienung in und Aus. per Cinch
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
200W |
| Size WxHxD |
235 x 96 x 327 mm (9,3"x3,8"x12,9") 7,38 L/dm³
|
| Operating Noise |
- |
|
| Weight |
3,00 kg / 6,61 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
22 fL
/ max. 230 cm screen width |
| Candela m² |
75 cd/m² |
| Features |
 Freeze
3D Motion Adaptive, Line Doubler
|
|
- |
In Comparison
The Marantz VP 8100 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
6 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
95 |
Power cons.: |
|
98 |
| Picture Total Points: | 34 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4971 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
