Brief Introduction
Beta 2.5 |

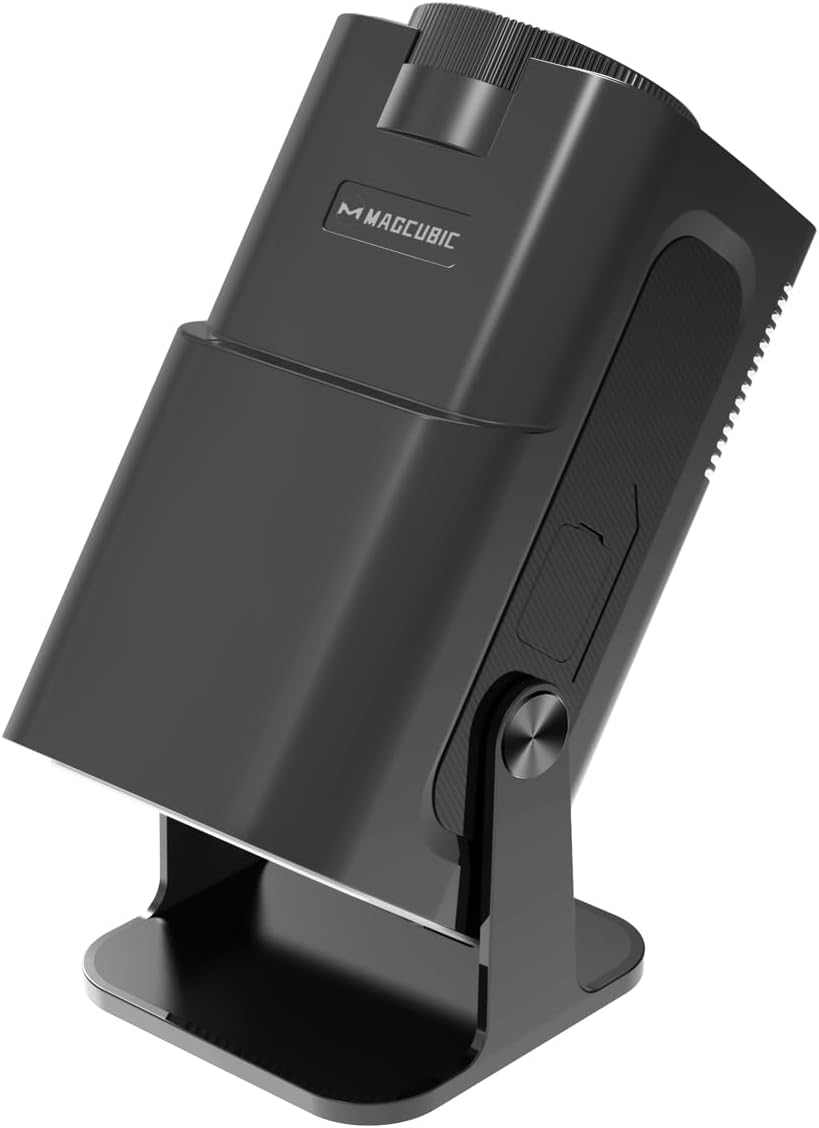

The HY320 LED LCD projector from Magcubic has 390 Ansi lumens, a contrast of 1500:1 and an HDTV 1280 x 720 resolution. The lifespan of the LEDs is 30000 hours, which is over 20.5 years if enjoyed for four hours a day. Includes an integrated media player for direct playback of files. An image width of up to 201 cm is possible as the projector has 390 Ansi lumens. However, if room light is available, the picture should be a maximum of 134 cm wide. As the projector recognizes Airplay, Miracast Screen Mirroring signals, it is possible to play videos with a high resolution and surround sound directly from a smartphone, tablet, PC (Android, Windows and iOS) via WLAN. Another extra is that the Bluetooth function allows the projector to be connected to external wireless speakers. The model is also Full HD 1080P and 4K (compressed) compatible. The operating noise of just 25 decibels makes the projection quiet.
|
| Display Type |
1 x LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
390 |
Screen |
173 Lux (200 cm Screen width) |
| Contrast |
1500:1 full on/off |
1500:1 full on/off
|
| Black Level |
0,2600 min. Lumen |
0,116 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p
Media player formats: Mediaplayer |
| Application |
Game-Portabel | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light. |
| Light Source |
LED
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € LED
|
|
|
 |
|
Lux: |
173 Lux |
|
Room light max.: |
35 Lux |
|
Candela pro m²: |
55 cd/m² |
|
Foot-Lamberts: |
16 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
1 x 3W |
| Connections |
HDMI in
USB in
Audio Mini Jack out
Bluetooth 5.0 |
| Ceiling Mounting |
- |
| Power |
60W |
| Size WxHxD |
218 x 40 x 102 mm (8,6"x1,6"x4") 0,89 L/dm³
|
| Operating Noise |
25dB |
|
| Weight |
1,20 kg / 2,2 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
16 fL
/ max. 201 cm screen width |
| Candela m² |
55 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Automatic and manual vertical keystone correction
Wi-Fi network compatible.
Android 11.0
180° rotatable
|
|
Miracast, Airplay |
In Comparison
The Magcubic HY320 compared to others current "Game-Portabel" projectors. |
| Ansi-Lumen: |
|
53 |
Weight: |
|
21 |
| Contrast: |
|
1 |
dB: |
|
88 |
| Black level: |
|
81 |
Power cons.: |
|
100 |
| Picture Total Points: | 45 |
Projector Total Points: | 70 |
|
| Popularity Top 100 |
|
| Points: |
|
44 |
| Ranking: |
8 (From: 419) |
|
|
|
| Status |
2024 Current model // Last update of the data: 2025-09-09
|
