Brief Introduction
Beta 2.5 |
With the X1, manufacturer InFocus offers a DLP projector with SVGA 800 x 600 resolution and a contrast of 2000:1. The projector will be able to illuminate a 275 cm image width well. However, if room light is available, the picture width should ideally not exceed 183 cm. It was launched in 2002 and is no longer offered by the manufacturer InFocus.
|
| Display Type |
1 x 0,55" DDR DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
333 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,167 min. Lumen |
| Offset |
60% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed |
| Video Modes |
NTSC, PAL, SECAM, EDTV 480p, 576p, HDTV (1080i und 720p) |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |

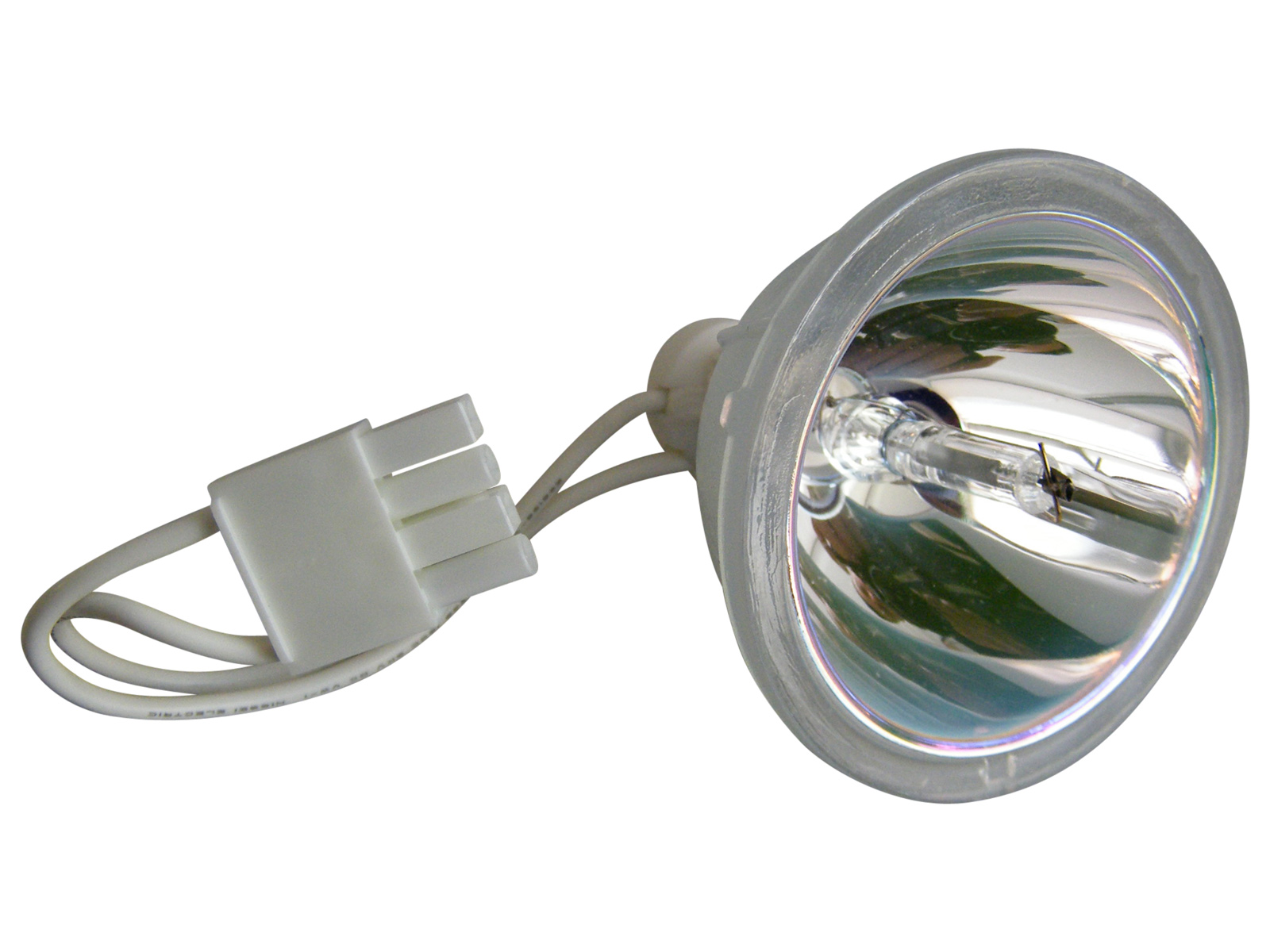

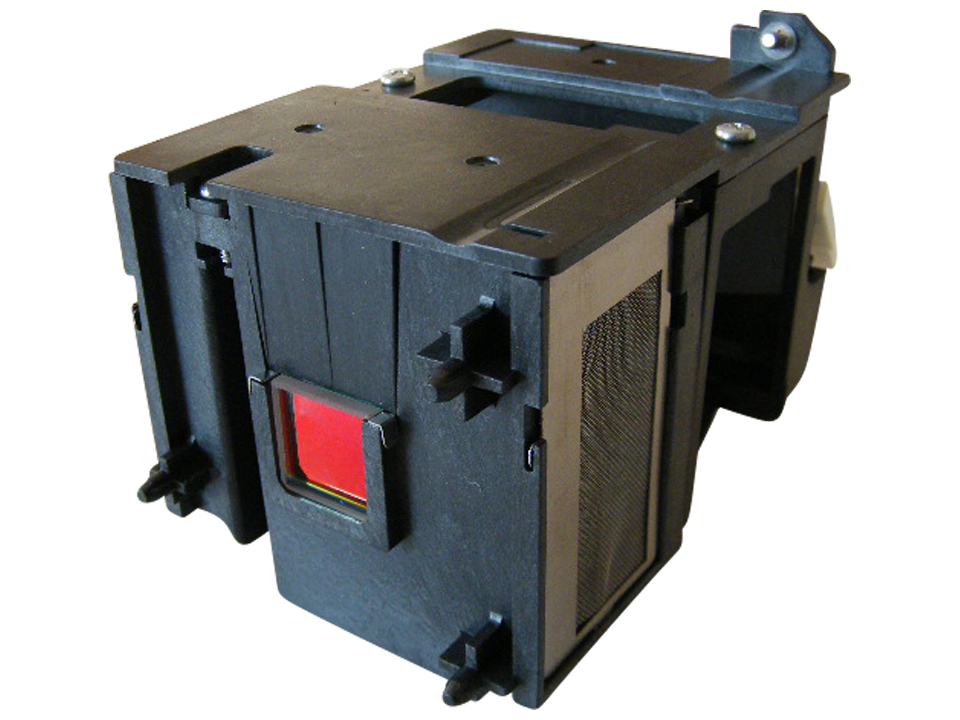

| Light Source |
150W SHP Lamp
Article Nr.: SP-LAMP-009
|
|
| Light Life |
3000 h. |
| Operating Costs |
-
|
|
378 - 454 cm
|
 |
|
Lux: |
333 Lux |
|
Room light max.: |
67 Lux |
|
Candela pro m²: |
106 cd/m² |
|
Foot-Lamberts: |
31 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,19 |
| Objective |
F=2,4 f=21-25 mm |
| Throw Ratio |
1,89-2,27:1 show |
| Audio |
2,5W Mono |

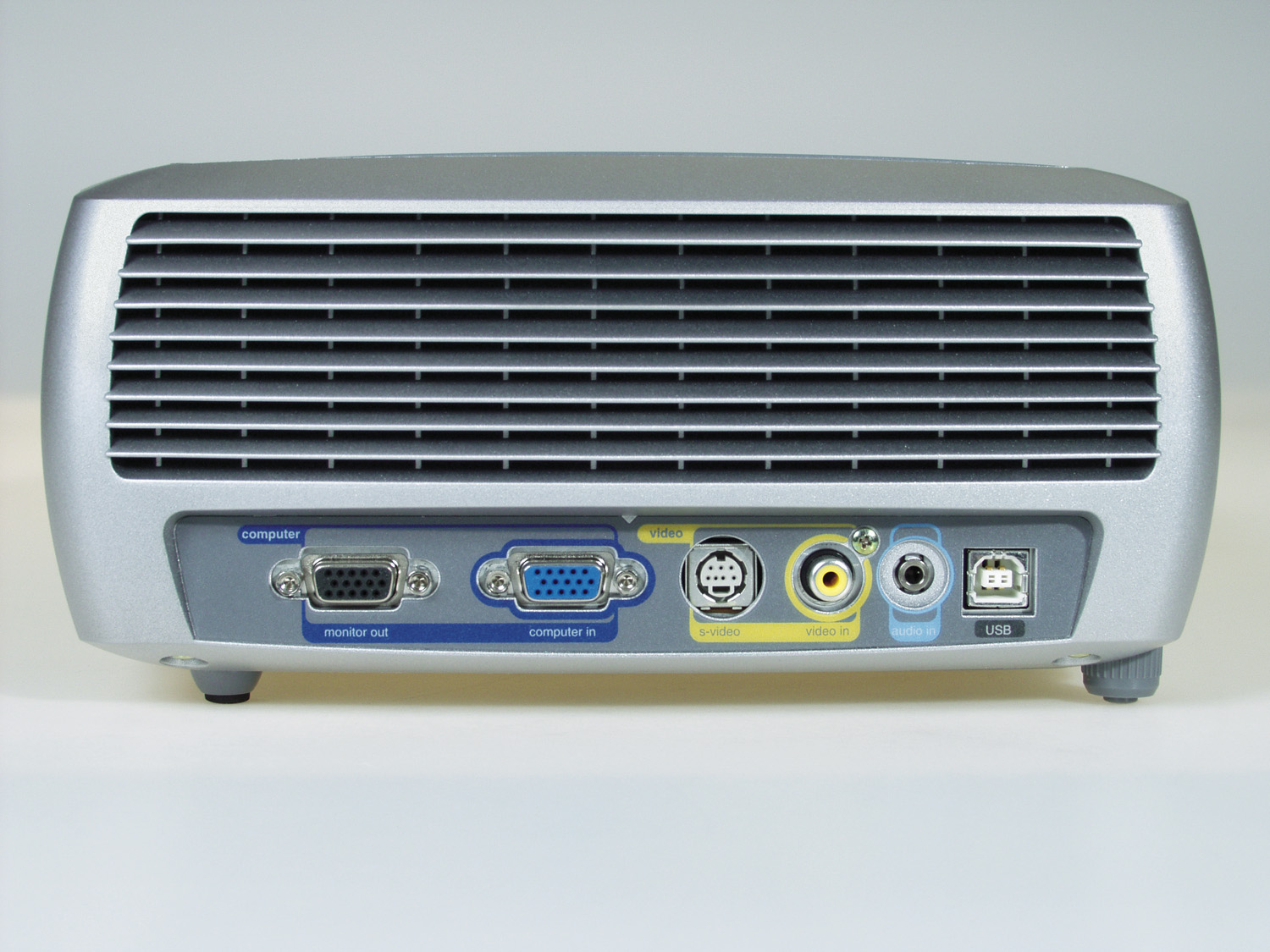

| Connections |
D-sub 15pin in und out
YUV über S-Video 6-pin mini DIN
Cinch Video in
Minijack in
USB in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
200 / 250W maxinum |
| Size WxHxD |
249 x 106 x 318 mm (9,8"x4,2"x12,5") 8,39 L/dm³
|
| Operating Noise |
37dB |
|
| Weight |
3,10 kg / 6,83 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 31,5-80 kHz
V-sync: 50-85 Hz
Range max.: 95 MHz |
| Foot-Lamberts |
31 fL
/ max. 275 cm screen width |
| Candela m² |
106 cd/m² |
| Features |
 Freeze
Blank (Black screen button)
Remote control with mouse control
Remote control with backlight
Overscan adjustable
4-segment colour wheel RGBW white can be set.
YUV signal via adapter
Overscan adjustable 96/99 percent.
Three user memories
DCDi DE-interlacer with film mode detection from Faroudja. Freeze frame
Digital Zoom
|
|
- |
In Comparison
The InFocus X1 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
8 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
43 |
| Black level: |
|
94 |
Power cons.: |
|
97 |
| Picture Total Points: | 34 |
Projector Total Points: | 80 |
|
| Popularity Top 100 |
|
| Points: |
|
20 |
| Ranking: |
78 (From: 984) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2023-08-04
|
