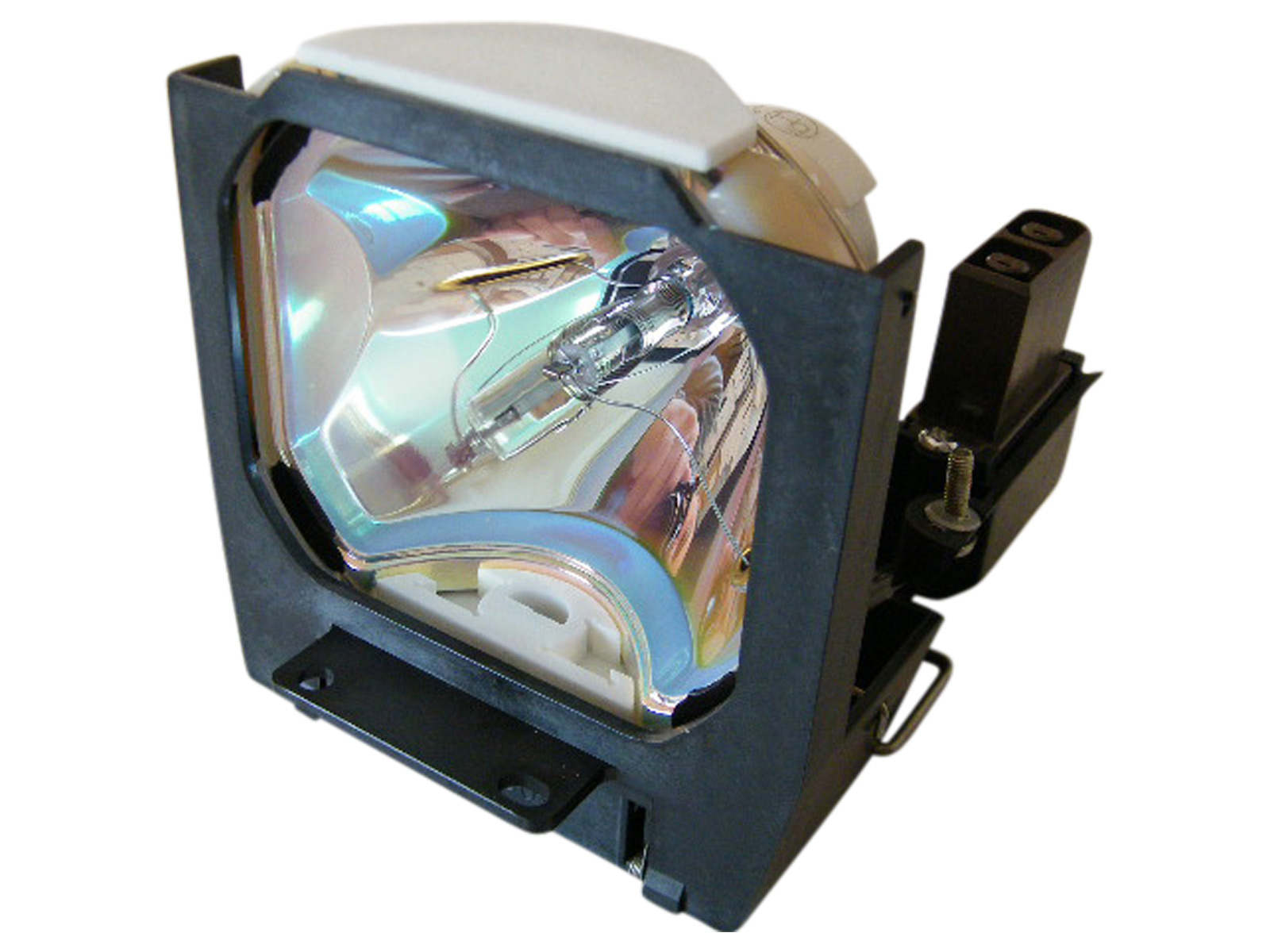

The LP770 model from InFocus combines LCD technology in the Standard-Portabel sector with 2000 ANSI lumens, a contrast of 300:1 and a native XGA 1024 x 768 resolution. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm. This model dates back to 2000 and is no longer part of InFocus's current product range.
Display Type
3 x 1,3" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2000
Screen
667 Lux (200 cm Screen width)
Contrast
300:1 full on/off
300:1 full on/off
Black Level
6,6667 min. Lumen
2,246 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM, PAL 60, component video, HDTV
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Inputs:
RGB; mini D-sub 15pin x 2 PC Audio; stereo mini jack x 2
Video; BNC x 1 + SVHS x 1
Video; RCA x 1 + SVHS x 1
Video Audio; stereo RCA x 2
Outputs:
RGB: mini D-sub 15pin x 1
Audio: Stereo mini jack x 1
RS232C x 1
USB
PS2
Ceiling Mounting
Yes, is possible.
Power
280W
Size WxHxD
299 x 122 x 260 mm (11,8"x4,8"x10,2") 9,48 L/dm³
Operating Noise
36 / 34 dB in Eco Mode
Weight
5,90 kg / 11,02 lbs.
Keystone
-
Illumination
90%
Frequenz
H-sync: 15-92 kHz V-sync: 50-85 Hz Range max.: 160 MHz
saludo
up down enter at the same time then remote control enter and then unfortunately nothing happens
how do I reset the box?
Autor:
Beaman 13.12.06
4
Stars
LP770
That makes two of us...
You can see the lamp hours by pressing the up, down and enter buttons on the device at the same time. Then you can switch through 3 windows with the remote control by pressing OK. You can also see how often the timer has been reset and all that stuff
Do you have an original lamp? You can write to me in the DIY-Community.de under the same nick as here, it‘s easier to chat there...
Autor:
Norman 24.11.06
5
Stars
LP 770
Hello, I think there is a mistake on the page, I didn‘t find an Eco Mode on my LP770. But do you know how to call up the number of hours of the lamp?
Autor:
Beaman 23.10.06
4
Stars
How to switch on Eco Mode?
I also have the LP770 and am very happy with it. But tell me, do you have any idea how to switch to ECO mode? I‘m starting to think there‘s a mistake here on the site and it doesn‘t have one. But I only give it 80 points, it‘s a bit too loud for more...
Mine has already done about 10000 hours, maybe the bearings of the fans are not the best anymore and therefore a bit louder...
Autor:
Norman Bäitz 24.04.06
5
Stars
Review Infocus LP770
Hello, I have an Infocus LP 770 and have to say that despite its age it delivers a razor-sharp picture! I‘ve had the device for 3 years and have never had any problems, simply a top device!
