Brief Introduction
Beta 2.5 |
The EH-TW7400 3D LCD home cinema has 2400 Ansi lumens, a contrast of 200000:1 and HDTV 1920 x 1080 resolution. The lifespan is 3500 hours, which is over 4.8 years if enjoyed for two hours a day. The integrated lens shift gives you freedom when positioning the projector. The projector can illuminate an image width of up to 498 cm thanks to its 2400 Ansi lumens. In room lighting, however, the picture width should ideally be less than 332 cm. Furthermore, it is Full HD 1080P and 4K (compressed) as well as 3D compatible, meaning that all currently available Blu-ray formats can be recognized by the projector. With an operating noise of just 24 decibels, the model is already very quiet compared to others. The model built in 2018 is no longer offered by Epson, but is still very popular in our projector database.
|
| Display Type |
3 x 0,74" LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2400 |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
200000:1 full on/off full on/off |
200000:1 full on/off full on/off
|
| Black Level |
0,0120 min. Lumen |
0,005 min. Lumen |
| Lens shift |
Vert.: +96,3% -47,10%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
HD4K 4096 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) (komprimiert) |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
| Application |
Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

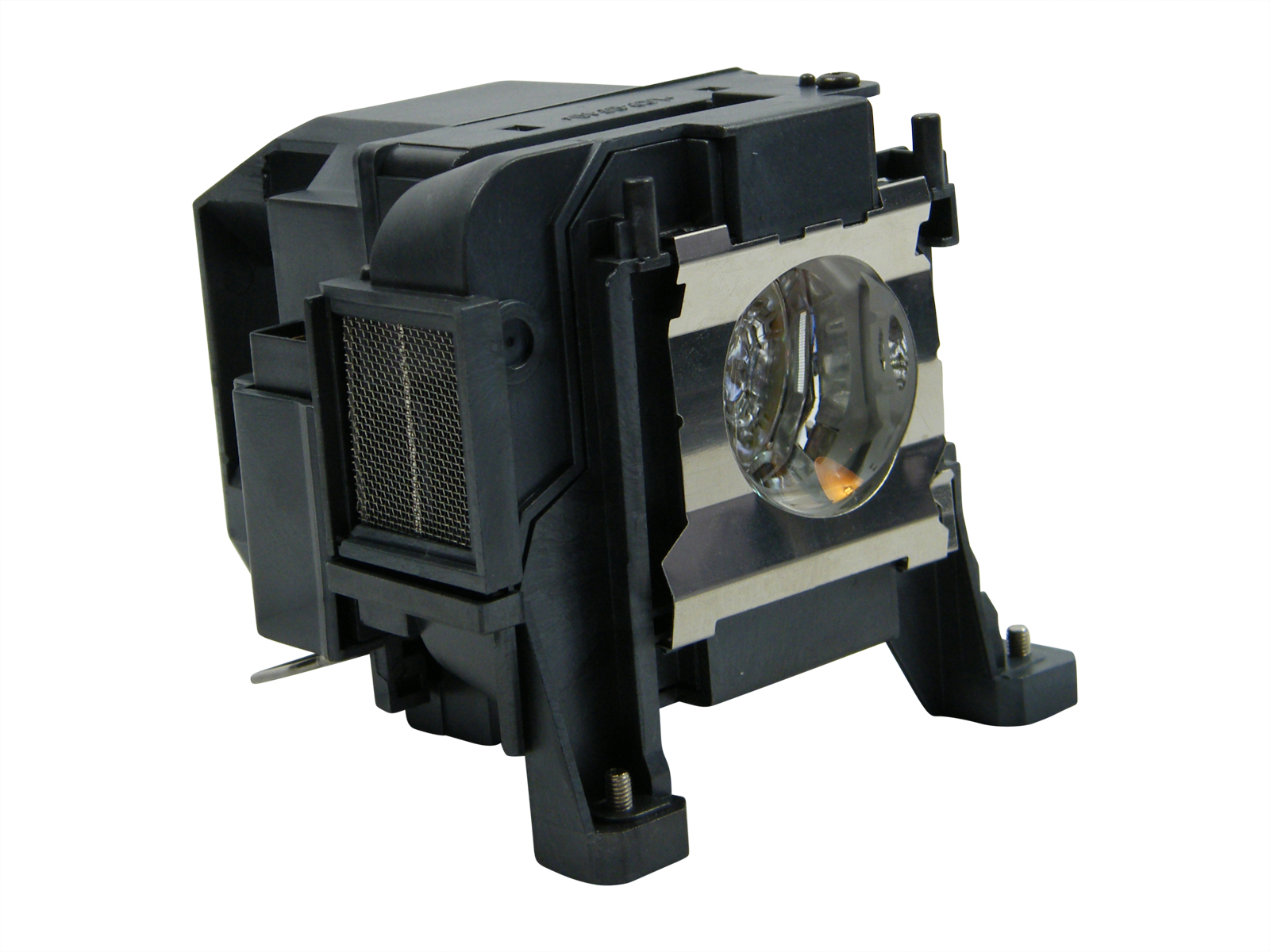

250W Lamp
Article Nr.: ELPLP89 / V13H010L89
|
|
| Light Life |
3500 h. 5000 h. in Eco Mode |
| Operating Costs |
|
|
270 - 568 cm
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
| 108 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 2,1 |
| Objective |
F=2-3 f=22,5-46,7 mm |
| Throw Ratio |
1,35-2,84:1 show |
| Audio |
- |
| Connections |
2 x HDMI 2.0 mit HDCP 2.2 in
D-sub 15pin in
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
355 / 271W in Eco Mode |
| Size WxHxD |
520 x 170 x 450 mm (20,5"x6,7"x17,7") 39,78 L/dm³
|
| Operating Noise |
24 / 20 dB in Eco Mode |
|
| Weight |
11,00 kg / 24,25 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
99 fL
/ max. 498 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
High Dynamic Range (HDR)
Picture-in-Picture
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson EH-TW7400 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
22 |
Weight: |
|
100 |
| Contrast: |
|
7 |
dB: |
|
87 |
| Black level: |
|
100 |
Power cons.: |
|
92 |
| Picture Total Points: | 43 |
Projector Total Points: | 93 |
|
| Popularity Top 100 |
|
| Points: |
|
29 |
| Ranking: |
41 (From: 984) |
|
|
|
| Optional accessories |
 | bulb only | NLMP25057 | 69,32 € |  | lamp ruby | Ruby-LMP25057 | 89,55 € |  | lamp Original | ELPLP89 / V13H010L89 | 124,06 € | | lamp Original | ELPLP89 / V13H010L89 | 124,06 € |  | Compatible lamp | LMP-K24028 | 88,49 € |  | air filter compatible | Alternative zu:ELPAF39 / V13H134A39 | 22,91 € |  | Universal Remote | Fernb-uni-V3 | 22,31 € |  | remote control Original | 1656526 | 38,38 € |  | air filter Original | ELPAF39 / V13H134A39 | 41,95 € | | air filter Original | ELPAF39 / V13H134A39 | 41,95 € |  | Ceiling Mount 220 | Halterung45 | 83,60 € |
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2018-09-04 11:59:47
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (2.83 MB)

|
Epson Website
