Brief Introduction
Beta 2.5 |
The Epson model EB 436WT is an LCD projector with WXGA 1280 x 800 resolution and a contrast of 3000:1. The manufacturer specifies a lamp life of 5000 hours, which is over 6.8 years if enjoyed for two hours a day. The integrated media player can play files directly. As the projector has horizontal and vertical keystone correction, the projector can be set up with plenty of free space in the room. As the EB 436WT is equipped with a microphone jack plug and 16W speakers, no additional audio system is required for presentations or training courses. 556 cm image width, the projector will be able to illuminate well. However, if room lighting is available, the image width should ideally not exceed 371 cm. The projector is equipped with an integrated whiteboard function for interactive training and presentations. Even 1080P video signals are no problem for the projector. The projector was launched in 2013 and is no longer sold by the manufacturer, but is still a popular projector in our database.
|
| Display Type |
3 x 0,59" D8 LCD TFT Panel mit MLA
WXGA 16/10 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1200 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,4 min. Lumen |
| Offset |
61,75% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: JPEG BMP GIF PNG |
| Application |
Whiteboard | Training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

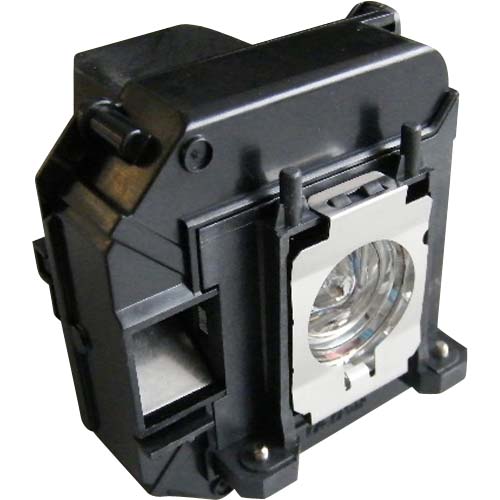

230W UHE Lamp
Article Nr.: ELPLP61 / V13H010L61
|
|
| Light Life |
5000 h. |
| Operating Costs |
-
|
|
96 cm (no Zoom)
|
 |
|
Lux: |
1200 Lux |
|
Room light max.: |
240 Lux |
|
Candela pro m²: |
380 cd/m² |
|
Foot-Lamberts: |
111 fL |
|
 |
| 77 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=1,80 f=6,48mm |
| Throw Ratio |
0,48:1 |
| Audio |
1 x 16W |
| Connections |
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
USB Typ A, B in
RS232C
RJ45 in
Mikrofon in
Mini Jack Audio in und out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
355 / 254W in Eco Mode |
| Size WxHxD |
345 x 105 x 277 mm (13,6"x4,1"x10,9") 10,03 L/dm³
|
| Operating Noise |
35 / 28 dB in Eco Mode |
Key: 103 cm |
Key: 26 cm |
| Key: 26 cm |
| |
|
|
| Weight |
4,10 kg / 9,04 lbs. |
| Keystone |
Vert.: +/-15°
Hori.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
111 fL
/ max. 556 cm screen width |
| Candela m² |
380 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Integrated Mediaplayer
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Password protection
PJLink™
Control via web browser
Optional Wi-Fi network compatible.
Lan network compatible.
Overscan adjustable
Short-throw projector
Digital Zoom x1.35
Whiteboard function.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson EB 436WT compared to others not current "Whiteboard" projectors. |
| Ansi-Lumen: |
|
41 |
Weight: |
|
80 |
| Contrast: |
|
1 |
dB: |
|
52 |
| Black level: |
|
96 |
Power cons.: |
|
96 |
| Picture Total Points: | 46 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
35 |
| Ranking: |
79 (From: 297) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2013-01-24 13:48:08
|
| Data |
 Product Sheet english HC
|
Epson Website
