Brief Introduction
Beta 2.5 |
The DreamVision model DL500 is a DLP projector with SVGA 800 x 600 resolution and a contrast of 230:1 / 500 Ansi. 600 Ansi lumens ensure that a picture width of 213 cm is also possible. However, if room light is available, the picture should be max. 142 cm wide. This model is no longer offered by DreamVision.
|
| Display Type |
1 x DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
600 |
Screen |
200 Lux (200 cm Screen width) |
| Contrast |
230:1 / 500 nach Ansi |
230:1 / 500 nach Ansi
|
| Black Level |
2,6087 min. Lumen |
0,881 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed |
| Video Modes |
NTSC, PAL B/D/G/I/H/N/M, SECAM |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

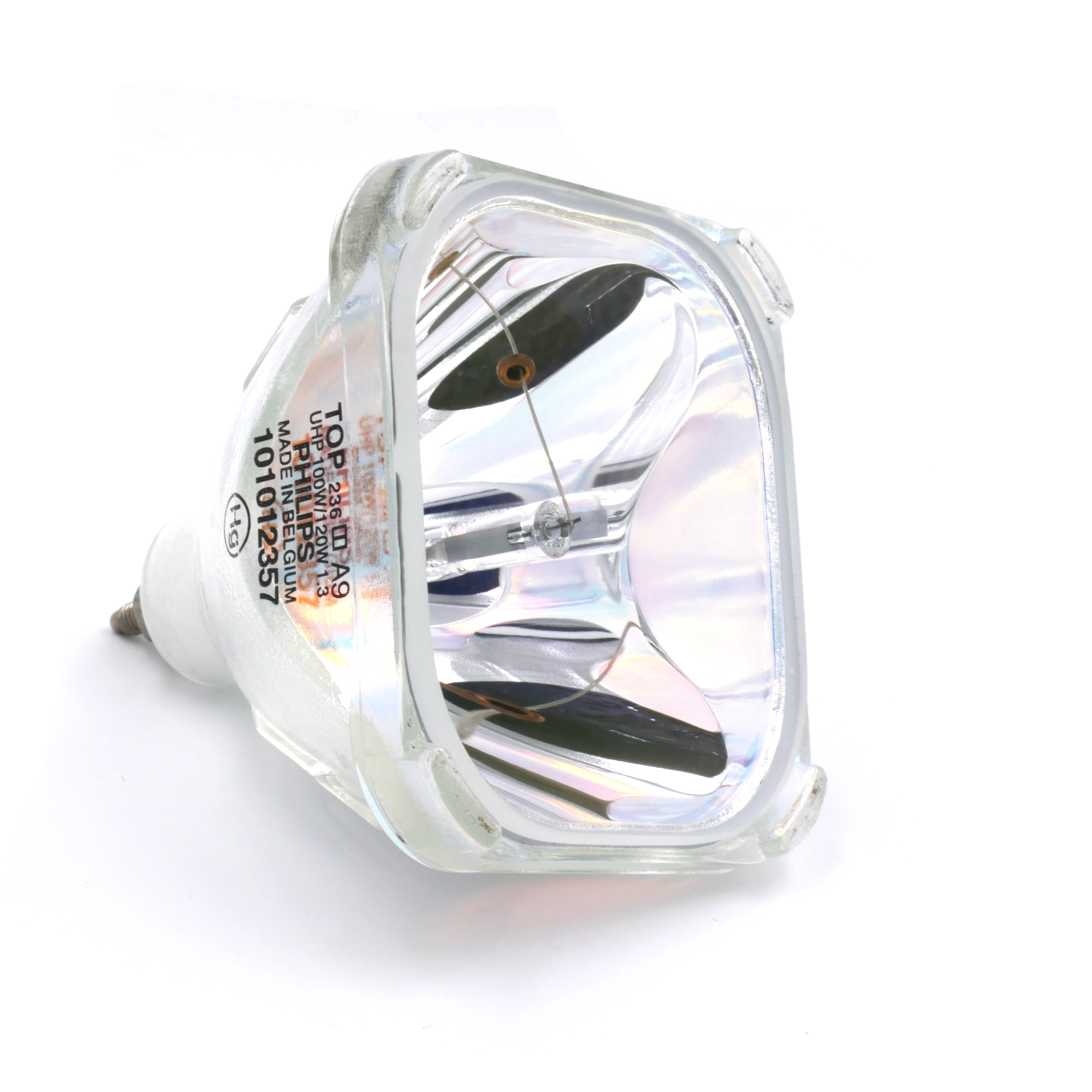

120-W UHP Lamp
Article Nr.: 35840310
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
200 Lux |
|
Room light max.: |
40 Lux |
|
Candela pro m²: |
65 cd/m² |
|
Foot-Lamberts: |
19 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,5 |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
10W |
| Connections |
Computer (EVC plug)
S-video (MiniDIN/4pin)
Composite video (RCA)
Stereo Audio L/R (RCA)
RS232 connectivity
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
225 x 130 x 335 mm (8,9"x5,1"x13,2") 9,8 L/dm³
|
| Operating Noise |
- |
|
| Weight |
4,50 kg / 9,92 lbs. |
| Keystone |
- |
| Illumination |
85% |
| Frequenz |
H-sync: 15-80 kHz
V-sync: 48-100 Hz
|
| Foot-Lamberts |
19 fL
/ max. 213 cm screen width |
| Candela m² |
65 cd/m² |
| Features |
 Freeze
Picture-in-Picture
Remote control with mouse control
TV tuner
|
|
- |
In Comparison
The DreamVision DL500 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
5 |
Weight: |
|
78 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
90 |
Power cons.: |
|
98 |
| Picture Total Points: | 32 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4396 (From: 7662) |
|
|
|
| In Test
|
-
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
User Manual english (0.27 MB)
User Manual english 2 (0.74 MB)
|
DreamVision Website
