Brief Introduction
Beta 2.5 |
The MH606 3D DLP projector from Benq has 3500 Ansi lumens, a contrast of 10000:1 and an HDTV 1920 x 1080 resolution. The manufacturer Benq specifies a lamp life of 10000 hours, which converts to over 13.7 years at 2 hours per day. 3500 Ansi lumens ensure that a picture width of 601 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 401 cm. Furthermore, the projector can play 1080P and 3D without any problems. The model was built by Benq in 2017 and is no longer current.
|
| Display Type |
1 x 0,55" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1556 Lux (200 cm Screen width) |
| Contrast |
10000:1 |
10000:1
|
| Black Level |
0,3500 min. Lumen |
0,156 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

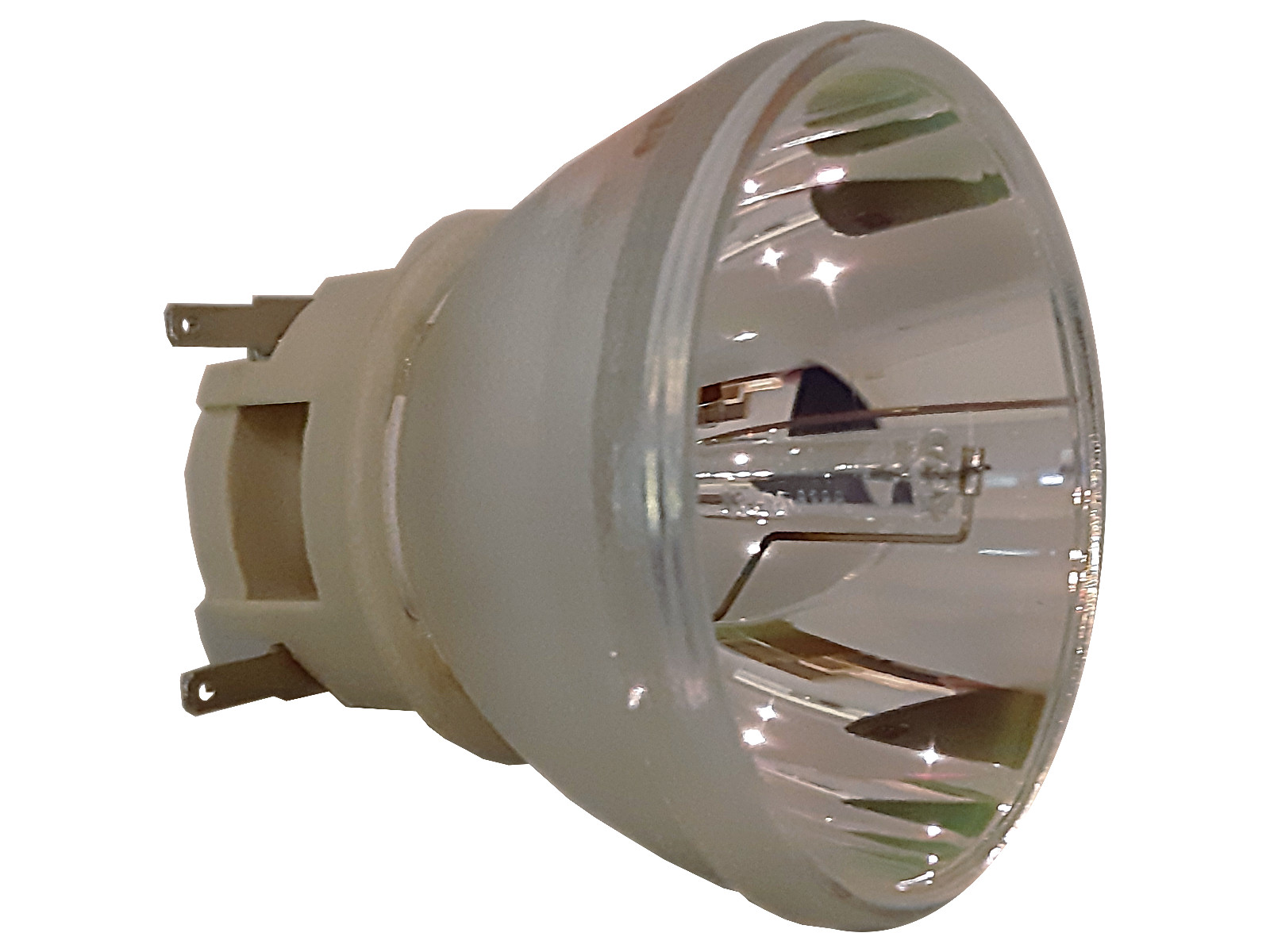

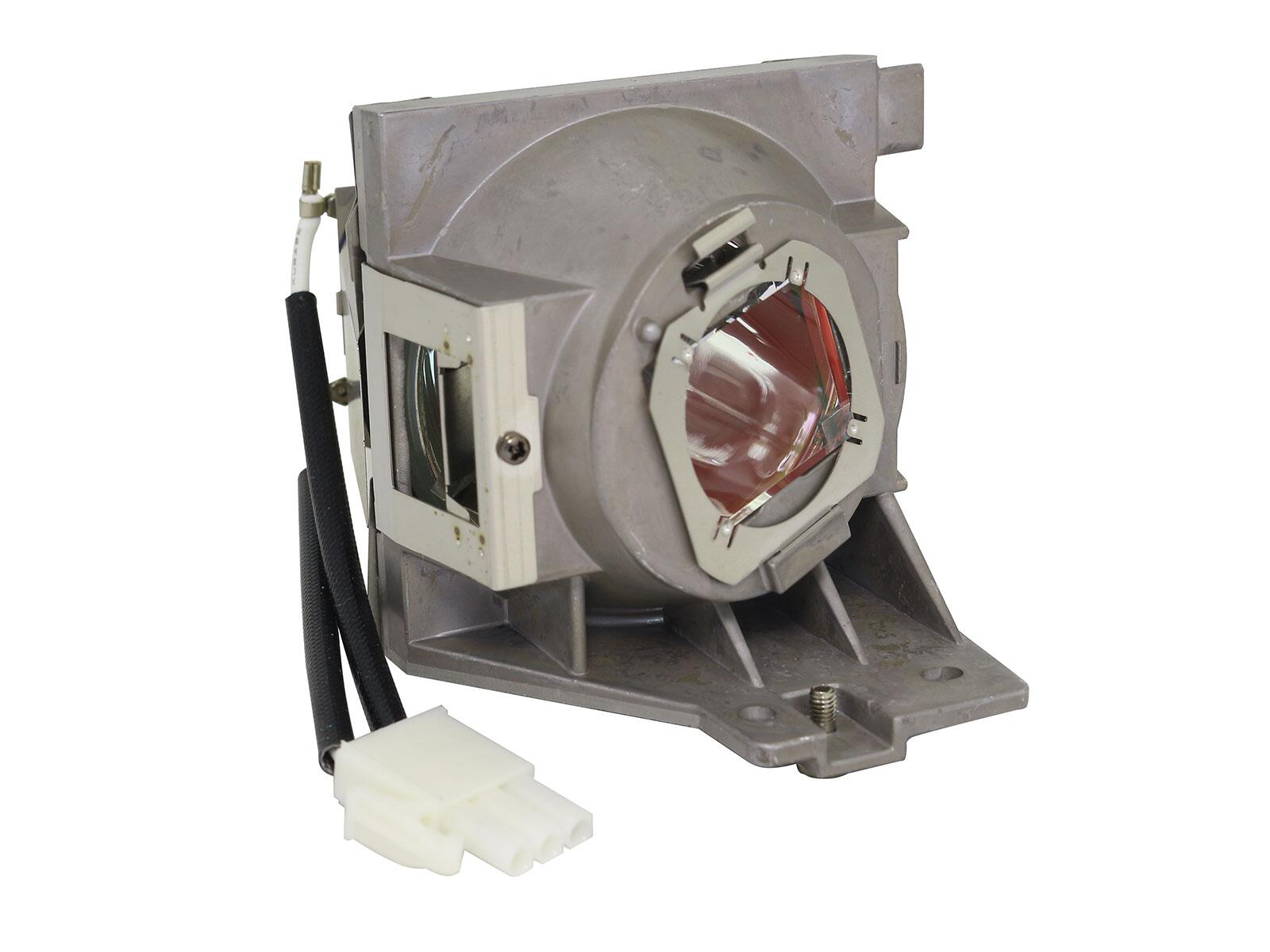

200W Lamp
Article Nr.: 5J.JGX05.001
|
|
| Light Life |
5000 h. / 10000 h. in Eco Mode |
| Operating Costs |
|
|
298 - 328 cm
|
 |
|
Lux: |
1556 Lux |
|
Room light max.: |
311 Lux |
|
Candela pro m²: |
497 cd/m² |
|
Foot-Lamberts: |
145 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,56-2,68 f=22-24 mm |
| Throw Ratio |
1,49-1,64:1 show |
| Audio |
1 x 2W |
| Connections |
2 x HDMI in
D-sub 15pin in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
280W / 210W in Eco Mode |
| Size WxHxD |
296 x 120 x 221 mm (11,7"x4,7"x8,7") 7,85 L/dm³
|
| Operating Noise |
33 / 29 dB in Eco Mode |
|
| Weight |
2,30 kg / 5,07 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 23-120 Hz
|
| Foot-Lamberts |
145 fL
/ max. 601 cm screen width |
| Candela m² |
497 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
Optional Wi-Fi network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq MH606 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 47 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4219 (From: 7662) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2019-09-11 21:55:02
|
