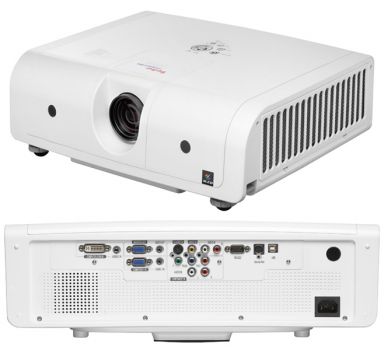

The equipment of the Geha compact 694 / N projector includes 4500 ANSI lumens, a contrast of 500:1 with a XGA 1024 x 768 display. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. Looking at practical performance, up to 584 cm can be illuminated with 4500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 389 cm. The projector was released in 2007 and is officially no longer distributed by Geha.
Display Type
3 x 0,79" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
4500 / 4000 im Eco Mode
Screen
1500 Lux (200 cm Screen width)
Contrast
500:1 full on/off
500:1 full on/off
Black Level
9,0000 min. Lumen
3,018 min. Lumen
Offset
40% 15 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel UXGA 1600 x 1200 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
Pluspoints: brightness, volume
negative: no lens shift --->need to adjust
no BNC & HDMI inputs
in blank mode picture is not black --->bottom right
"blank" is displayed
haven‘t figured out how to change the logo yet (to adjust picture without connecting picture source)
Freeze
