Model Overview

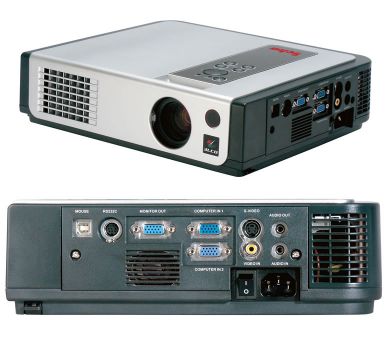

With the compact 238, Geha offers a LED-LCD projector that features 2200 ANSI lumens, a contrast of 500:1 and a resolution of XGA 1024 x 768. According to Geha, the included lamp lasts up to 2000 hours.
Looking at practical performance, up to 408 cm can be illuminated with 2200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 272 cm.
The projector was released in 2005 and is officially no longer distributed by Geha.

Display Type

3 x 0,7" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

2200

Screen

733 Lux (200 cm Screen width)

Contrast

500:1 full on/off

Black Level

4,4000 min. Lumen

1,475 min. Lumen

Offset

50% Exactly on screen top edge →

SCREEN

+ Projector

Resolution

XGA 1024 x 768
786.432 Pixel

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

Light Source

180W UHP Lamp
Article Nr.: 60 200139

Order Lamp
74,21 - 127,08 €

Light Life

2000 h. 3000 h. in Eco Mode

Operating Costs

Calculated brightness quality Perfect

370 - 444 cm


	Lux:	733 Lux
	Contrast:	500:1
	Candela pro m²:	233 cd/m²
	Foot-Lamberts:	68 fL

75 cm

•

Focus

Manual

Zoom

Manual 1,19

Objective

f=26,5-31,5 mm

Throw Ratio

1,85-2,22:1 show

Audio

Connections

2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack in und out
Maus Port
RS232C

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

310 x 96 x 270 mm (12,2"x3,8"x10,6") 8,04 L/dm³

Operating Noise

33dB

Key: 289 cm

	Key: 139 cm

Weight

2,70 kg / 5,95 lbs.

Keystone

Vert.: +/-30°

Illumination

Frequenz

H-sync: 15-100 kHz
V-sync: 43-120 Hz
Range max.: 135 MHz

Foot-Lamberts

68 fL / max. 408 cm screen width

Candela m²

233 cd/m²

Features

Freeze

Eco Mode

Picture-in-Picture

Remote control with laser pointer und mouse control

Screen Mirroring

In Comparison

The Geha compact 238 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

5935 (From: 7736)

Optional accessories

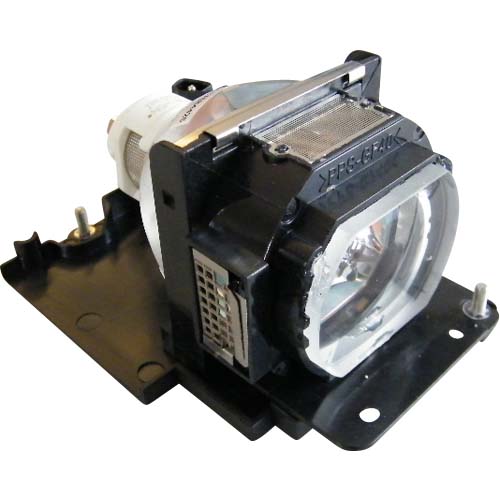

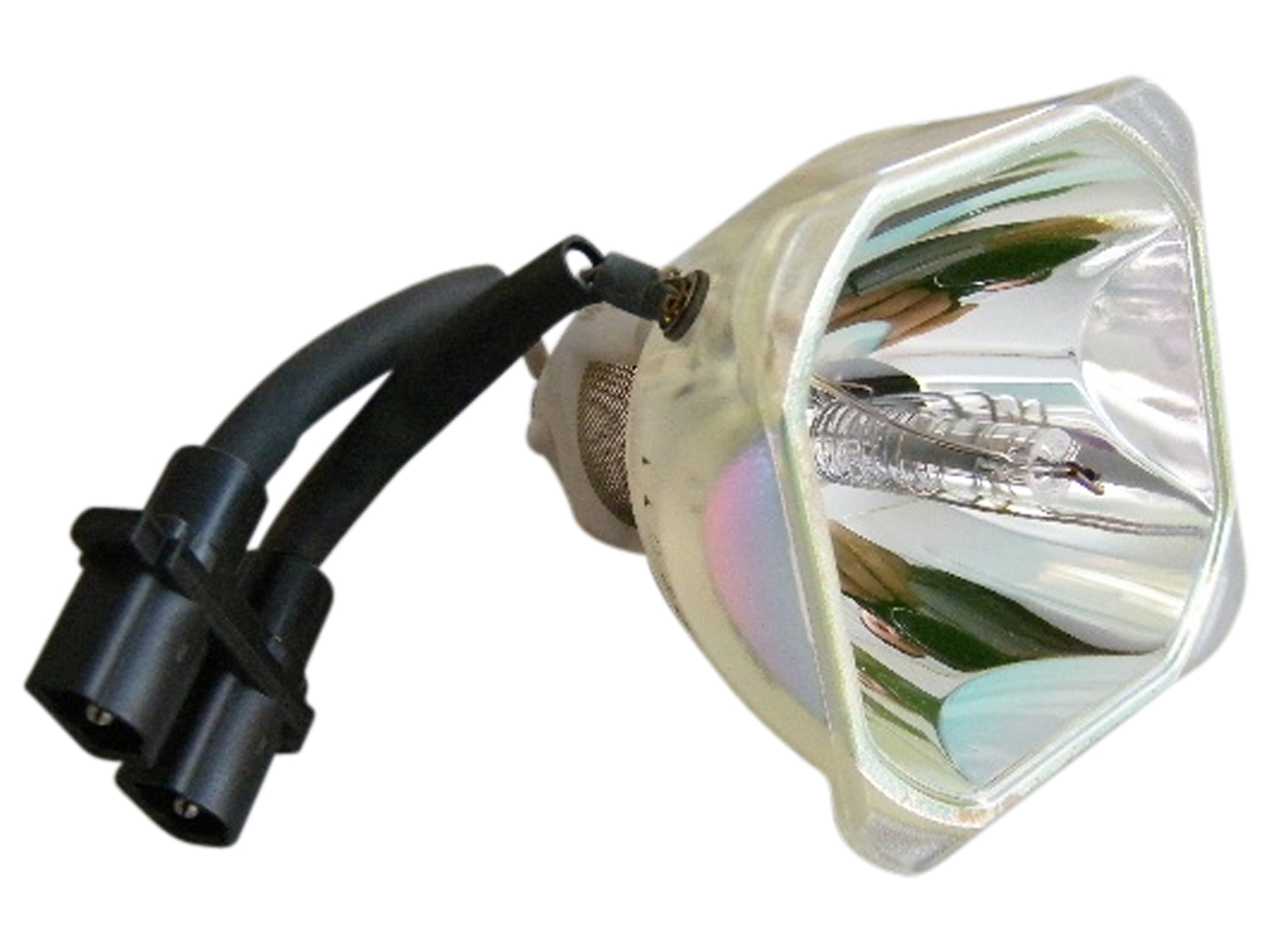

	bulb only	NLMP4495	166,33 €
	lamp ruby	Ruby-LMP4495	127,08 €
	lamp Original	60 200139	EOL €
	Compatible lamp	LMP-K4495	74,21 €
	ceiling bracket length: 100-120mm	Halterung100	47,86 €
	Airfilter universal	uni3mm	18,15 €

Status

2005 Discontinued (EOL) // Last update of the data: 2026-06-09
