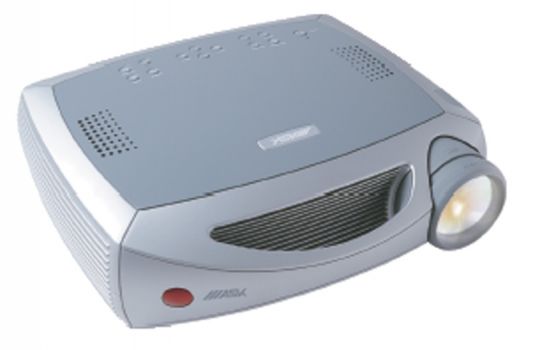

According to ASK, the C200 model provides 2500 ANSI lumens, a contrast ratio of 800:1 alongside a XGA 1024 x 768 resolution. According to ASK, the lamp has a durability of 2000 hours. Regarding projection size, the value of 2500 ANSI lumens allows for an image width of up to 435 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 290 cm. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2002 and is no longer part of ASK's current product range.
Display Type
1 x 0,7" DDR HD2 DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2500 / 2000 im Eco Mode
Screen
833 Lux (200 cm Screen width)
Contrast
800:1 full on/off
800:1 full on/off
Black Level
3,1250 min. Lumen
1,045 min. Lumen
Offset
65% 23 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Computer 1 (M1-DA mit 3,5 mm Audio)
Computer 2 (VESA mit 3,5 mm Audio)
Video 1 (S-Video)
Video 2 (RCA)
Video 3(Komponenten-RCA)
Stereo/Audio (RCA)
RS232C (DB9)
NIC (RJ45)
Ceiling Mounting
Yes, is possible.
Power
350W
Size WxHxD
351 x 110 x 325 mm (13,8"x4,3"x12,8") 12,55 L/dm³
Operating Noise
35 / 33 dB in Eco Mode
Key: 235 cm
Key: 39 cm
Weight
4,24 kg / 8,82 lbs.
Keystone
Vert.: +/-20°
Illumination
-
Frequenz
H-sync: 50-117 kHz V-sync: 50-85 Hz Range max.: 135 MHz
Freeze
Product Sheet english
