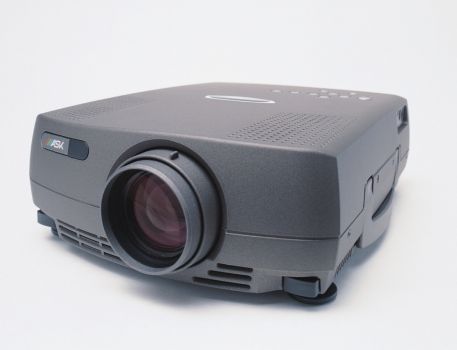

The projector C105 by ASK utilizes LCD technology and, according to the spec sheet, achieves 2000 ANSI lumens, a contrast of 450:1 at a resolution of XGA 1024 x 768. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. Regarding projection size, the value of 2000 ANSI lumens allows for an image width of up to 389 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 259 cm. The projector was released in 2001 and is officially no longer distributed by ASK.
Display Type
3 x 0,9" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2000
Screen
667 Lux (200 cm Screen width)
Contrast
450:1 full on/off
450:1 full on/off
Black Level
4,4444 min. Lumen
1,492 min. Lumen
Offset
50% Exactly on screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
DVI-D
3,5 mm Minibuchse Stereo-Audio
2 x Dsub15pin in 1 x out
3,5 mm Minibuchse Stereo-Audio
USB (Maus 1)
RS232C 8pol Mini-DIN
Cinch Video
S-Video
2 x Cinch Stereo in
Ceiling Mounting
Yes, is possible.
Power
220W
Size WxHxD
249 x 98 x 320 mm (9,8"x3,9"x12,6") 7,81 L/dm³
Operating Noise
34dB
Key: 302 cm
Key: 152 cm
Weight
3,40 kg / 7,5 lbs.
Keystone
Vert.: +/-30°
Illumination
-
Frequenz
H-sync: 15-100 kHz V-sync: 43-130 Hz Range max.: 160 MHz
Eco Mode
