PDF/Print Version: Vivitek DW884ST Projector

Brief Introduction

Beta 2.5

The Vivitek DW884ST short-throw 3D BrilliantColor DLP projector has 3600 Ansi lumens, a contrast of 15000:1 and a WXGA 1280 x 800 resolution. Thanks to the short-throw projection ratio of just 0.521:1, the projector is also not distracting in the room. For a 2m wide image, the projector only needs to be 104 cm away from the screen. The projector is equipped with a microphone jack plug and 10W speakers, so no additional speakers are required for presentations or training sessions. A smartphone with MHL connection can be connected directly to the MHL/HDMI port for 1080p / 60 Hz image mirroring (screen mirroring). The projector can also play 1080P and 3D without any problems. It was launched in 2015 and is no longer offered by the manufacturer Vivitek.

Display Type

1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip

Ansi-Lumen

Projector

3600

Screen

1440 Lux (200 cm Screen width)

Contrast

15000:1 full on/off

Black Level

0,2400 min. Lumen

0,096 min. Lumen

Offset

Resolution

WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p

Disc Recognition

DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | ~~4K UHD Blu-ray~~

3D Compatibility

Frame-Packing (Full HD 3D) | Side-by-Side | Frame Sequential (3D Ready)

Application

Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens.

Light Source

240 / 190W im Eco Mode Lamp
Article Nr.: 5811119560-SVV

Light Life

3500 h. 7000 in Eco Mode

Operating Costs

104 cm (no Zoom)


	Lux:	1440 Lux
	Room light max.:	288 Lux
	Candela pro m²:	459 cd/m²
	Foot-Lamberts:	134 fL

77 cm

Focus

Manual

Zoom

No Zoom

Objective

F=2,8 f=7,51mm

Throw Ratio

0,521:1

Audio

2 x 10W

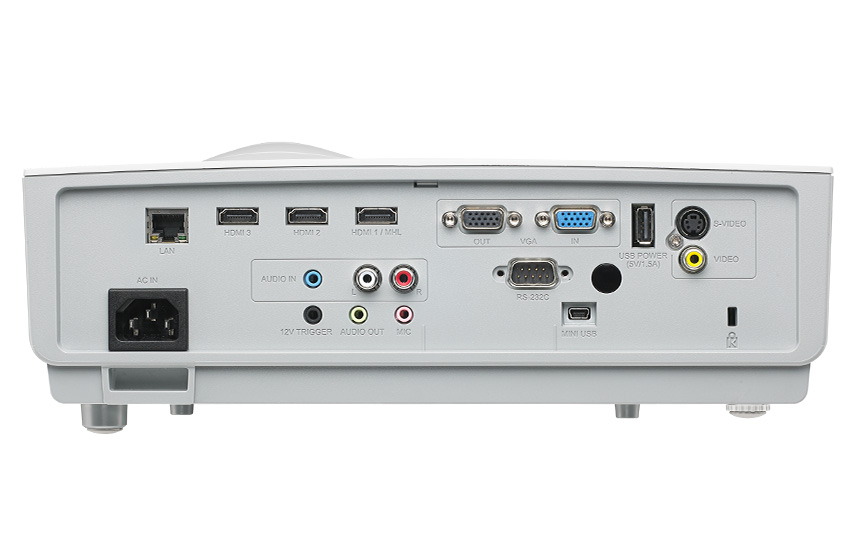

Connections

2 x HDMI 1.4 mit MHL in
DVI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
Mikrofon in
12V Trigge rout

Ceiling Mounting

Yes, is possible.

Power

3100 / 250W in Eco Mode

Size WxHxD

314 x 126 x 241 mm (12,4"x5"x9,5") 9,53 L/dm³

Operating Noise

36 / 32 dB in Eco Mode

Key: 164 cm

	Key: 10 cm

Weight

3,24 kg / 7,14 lbs.

Keystone

Vert.: +/-40°

Illumination

85%

Frequenz

Foot-Lamberts

134 fL / max. 610 cm screen width

459 cd/m²

Features

Real Full HD 3D

Full HD 1080P compatible

Eco Mode

Kensington Slot

BrilliantColor™

Lan network compatible.

Short-throw projector

6-segment colour wheel.

Screen Mirroring

über HDMI MHL

In Comparison

The Vivitek DW884ST compared to others not current "Short Distance" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

100

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

615 (From: 974)

Optional accessories

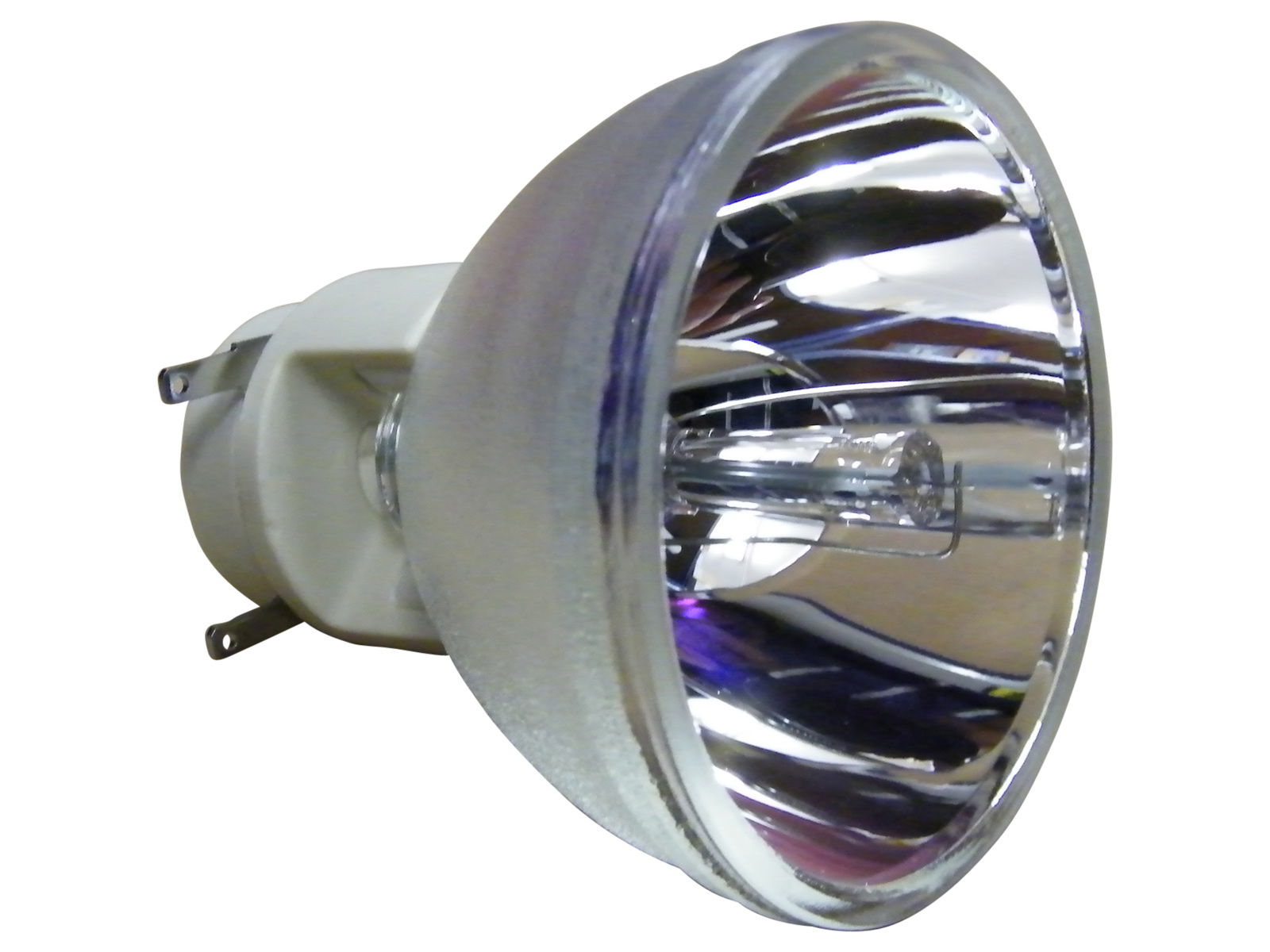

	Nackte Osram Lampe	NLMP22972	61,94 €
	Lampe Ruby	Ruby-LMP22972	96,22 €

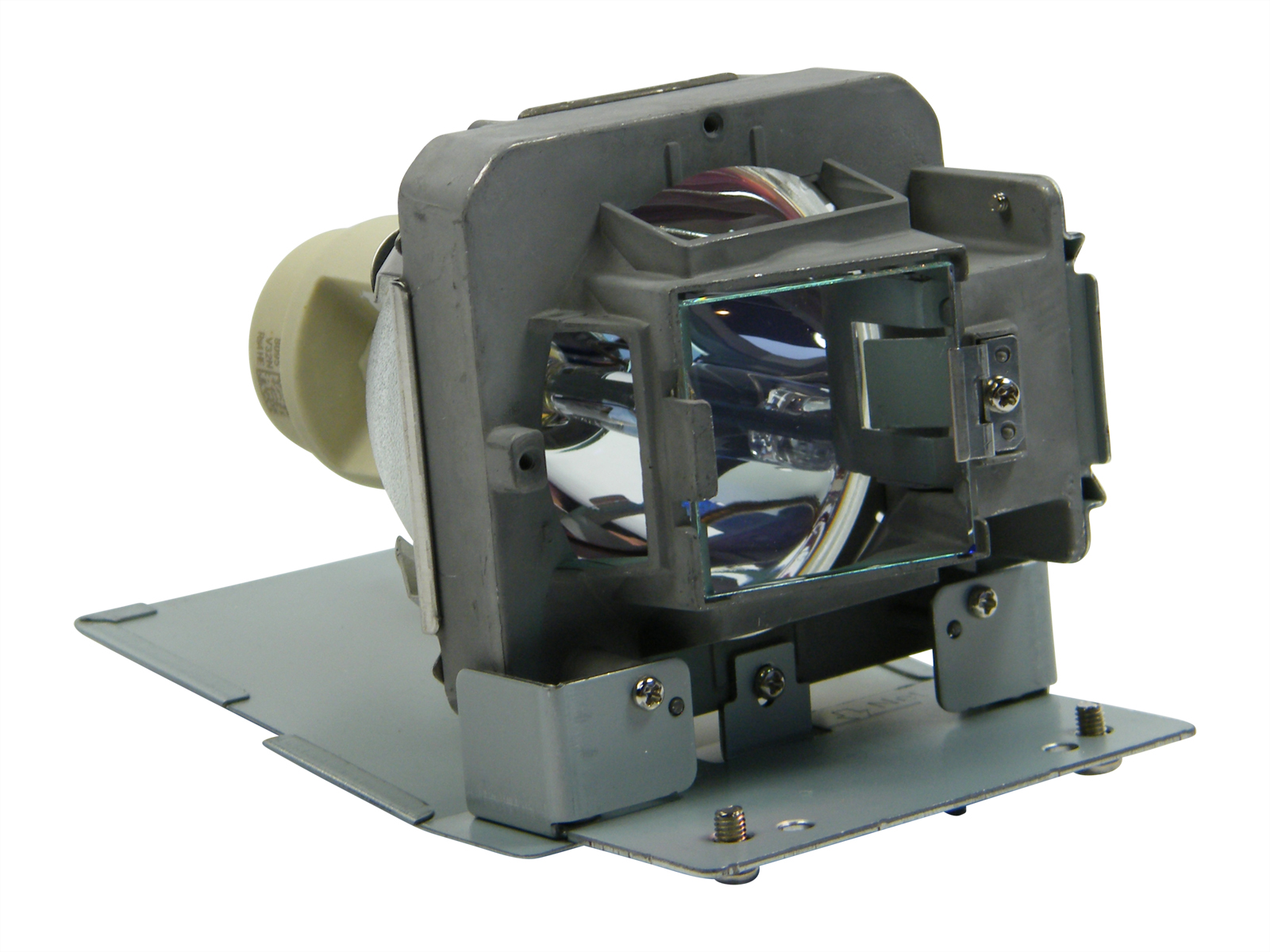

	Lampe Original	5811119560-SVV	130,06 €
	Kompatible Lampe	LMP-K22972	83,11 €
	Fernbedienung mit Laserpointer	5041841300	31,39 €
	Deckenhalterung 100-120	Halterung100	47,86 €

Status

2015 Discontinued (EOL) // Last update of the data: 2023-09-20
