Vivitek DW275
Order
Brief Introduction
Beta 2.5
 A brief introduction to the DW275: The Vivitek standard portable 3D BrilliantColor DLP projector offers 4000 Ansi lumens, a contrast of 15000:1 and a WXGA 1280 x 800 resolution. The lamp in the projector is specified with a lamp life of 10000 hours, which is over 13.7 years if enjoyed for two hours every day. The projector can illuminate a screen width of up to 643 cm thanks to its 4000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. Playing 1080P and 3D is also no problem for the projector.
Display Type 1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 4000
Screen
 1600 Lux (200 cm Screen width)
Contrast 15000:1 15000:1
Black Level 0,2667 min. Lumen 0,107 min. Lumen
Offset
Resolution WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready)
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 210W Lamp
Article Nr.: XX5810005600
Light Life 5500 h. 10000 h. in Eco Mode
Operating Costs
| cheap costly |
1
  7,5% / 0,03 €
310 - 372 cm



Lux: 1600 Lux
Room light max.: 320 Lux
Candela pro m²: 511 cd/m²
Foot-Lamberts: 149 fL
71 cm


16/10 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual 1,2
Objective F=2,42-2,62 f=22,5-25,79 mm
Throw Ratio 1,55-1,86:1
Audio 2W

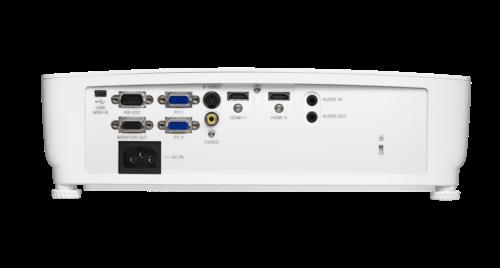

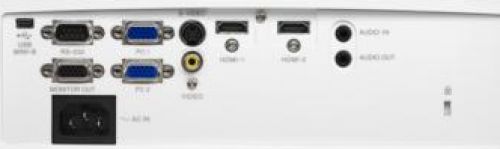

Connections 2x HDMI in
D-sub 15pin in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
Ceiling Mounting Yes, is possible.
Power 250W / 210W in Eco Mode
Size WxHxD 331 x 105 x 244 mm (13"x4,1"x9,6") 8,48 L/dm³
Operating Noise 32 / 29 dB in Eco Mode
Key: 331 cm
Key: 189 cm
Weight 2,60 kg / 4,41 lbs.
Keystone Vert.: +/-40°
Illumination -
Frequenz H-sync: 15-102 kHz
V-sync: 23-120 Hz
Foot-Lamberts 149 fL / max. 643 cm screen width
511 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
BrilliantColor™
Optional Wi-Fi network compatible.
Screen Mirroring -
In Comparison
The Vivitek DW275 compared to others current "Standard-Portabel" projectors.
Ansi-Lumen:
56 Weight:
83
Contrast:
1 dB:
70
Black level:
97 Power cons.:
58
Picture Total Points:51 Projector Total Points:70
Popularity Top 100
5 popularity points 6 popularity points 4 popularity points 3 popularity points 2 popularity points 3 popularity points
Points:
3
Ranking: 533 (From: 849)
Optional accessories

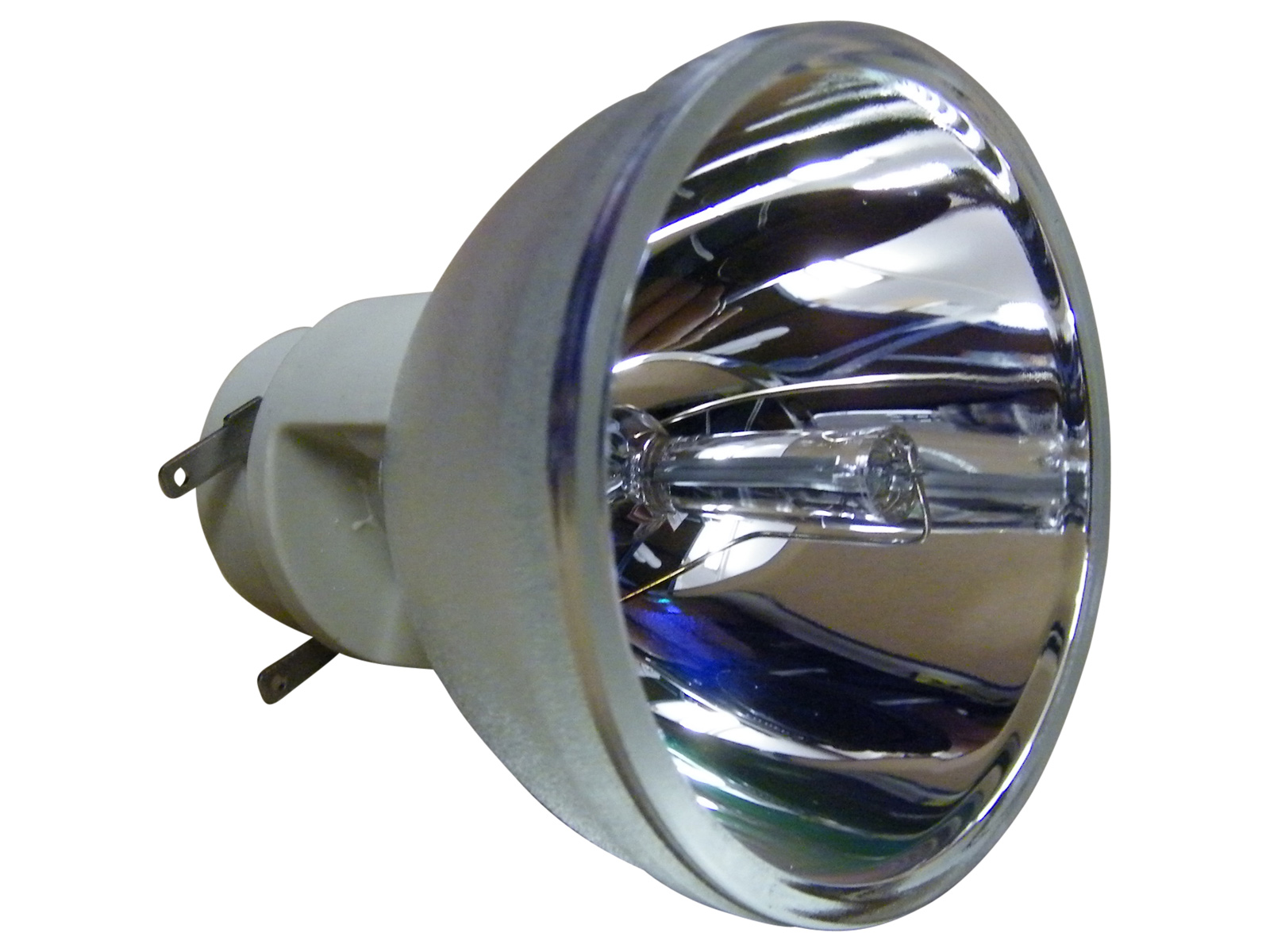

Nackte Osram Lampe NLMP2513777,98 €
Lampe Ruby Ruby-LMP25137110,47 €

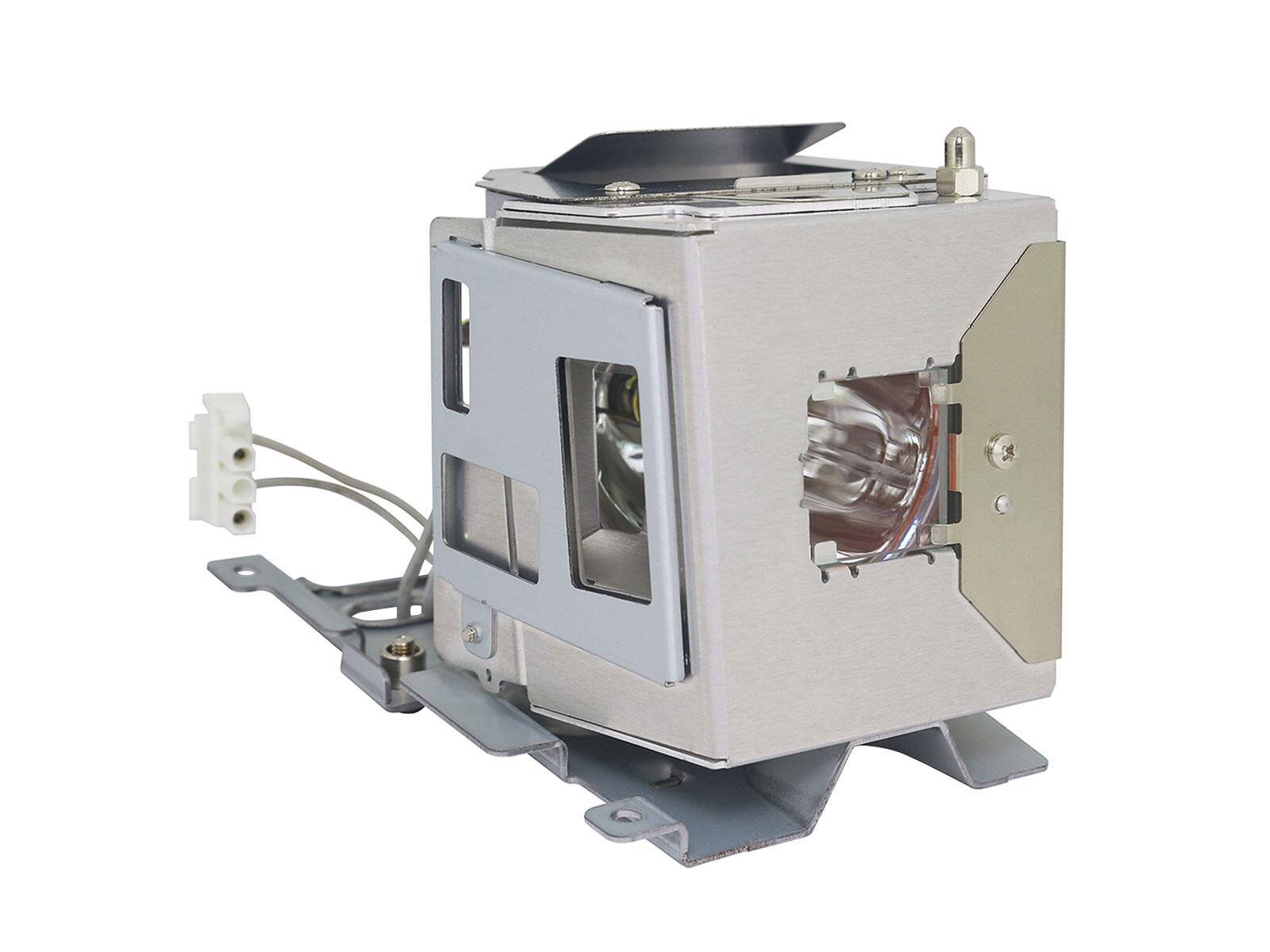

Lampe OriginalXX5810005600180,71 €
Kompatible Lampe LMP-K2513383,11 €
Fernbedienung mit Laserpointer 504184130031,39 €
Deckenhalterung Länge 100-120 mmHalterung12047,86 €
Status 2020 Current model // Last update of the data: 2023-09-20
Created:
Data
Vivitek Website

Projektor Vivitek DW275 Projektor Vivitek DW275 Projektor Vivitek DW275 User Manual english (2.53 MB)
Product Sheet english
Product Sheet english HC
More Details
    https://www.projector-database.com/pro/vivitekdw275-en.html
Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
VIVITEK DW275
