Sony VPL EX253
Bild Sony VPL EX253
Brief Introduction
Beta 2.5
 With the VPL EX253, manufacturer Sony offers an LCD projector with XGA 1024 x 768 resolution and a contrast of 3300:1. As the VPL EX253 is equipped with a microphone jack and 16W speakers, no additional audio system is required for presentations or training courses. Thanks to the brightness of 3300 Ansi lumens, a picture width of 500 cm is possible. In room light, the image should be max. 333 cm wide. Furthermore, the projector can play 1080P without any problems. The model built in 2014 is no longer offered by Sony.
Display Type 3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 3300 / 1700 im Eco Mode
Screen
 1100 Lux (200 cm Screen width)
Contrast 3300:1 full on/off 3300:1 full on/off
Black Level 1,0000 min. Lumen 0,334 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 210W Lamp
Article Nr.: LMP-E212
Light Life 3000 h. 5000 h. in eco Mode
Operating Costs
| cheap costly |
1
  17,5% / 0,07 €
280 - 454 cm



Lux: 1100 Lux
Room light max.: 220 Lux
Candela pro m²: 349 cd/m²
Foot-Lamberts: 102 fL


4/3 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual 1,31
Objective -
Throw Ratio 1,4-2,27:1
Audio 1 x 16W Mono

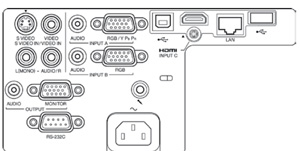

Connections HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in
RS232C
RJ45 in
USB Typ A,B
Mikrofon in
Ceiling Mounting Yes, is possible.
Power 283 / 271W in Eco Mode
Size WxHxD 365 x 96,2 x 252 mm (14,4"x3,8"x9,9") 8,83 L/dm³
Operating Noise 38 / 30 dB in Eco Mode
Key: 162 cm

Without offset

Key: 162 cm
Weight 3,80 kg / 8,38 lbs.
Keystone Vert.: +/-30°
Illumination -
Frequenz H-sync: 14-93 kHz
V-sync: 47-93 Hz
Foot-Lamberts 102 fL / max. 500 cm screen width
349 cd/m²
Features Full HD 1080P compatible
Direkt Power Off
Freeze
Blank (Black screen button)
Eco Mode
Lan network compatible.
Crestron®-Software compatible.
Digital zoom
Automatic dimming mode
Screen Mirroring -
In Comparison
The Sony VPL EX253 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
40 Weight:
82
Contrast:
1 dB:
28
Black level:
96 Power cons.:
97
Picture Total Points:46 Projector Total Points:69
Popularity Top 100
20 popularity points 14 popularity points 17 popularity points 15 popularity points 11 popularity points 17 popularity points
Points:
17
Ranking: 285 (From: 7662)
Optional accessories
Nackte Osram Lampe NLMP2083369,46 €
Lampe Ruby Ruby-LMP2083377,81 €
Lampe OriginalLMP-E212211,76 €
Kompatible Lampe LMP-K2083354,51 €
Luftfilter Kompatibel Alternative zu:44267020126,48 €
Deckenhalterung OriginalPAM-210EOL €
Fernbedienung Original149046311 / RM-PJ826,48 €
Luftfilter Original442670201EOL €
Deckenhalterung 100-120 Halterung10047,86 €
Status 2014 Discontinued (EOL) // Last update of the data: 2023-08-04
Created:
Data
Sony Website
User Manual english (4.66 MB)
Product Sheet english
Product Sheet english HC
