Philips bSure SV1 Impact
PHILIPS LC3135
Brief Introduction
Beta 2.5
 A brief introduction to the bSure SV1 Impact: The Philips standard portable LCD projector offers 1800 Ansi lumens, a contrast of 300:1 and an SVGA 800 x 600 resolution. An image width of up to 369 cm is possible. However, the image should be smaller in room light. We recommend max. 246 cm. The operating noise of only 29 decibels makes the projection quiet. The model built in 2003 is no longer offered by Philips.
Display Type 3 x 0,7 TFT Panel
SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1800
Screen
 600 Lux (200 cm Screen width)
Contrast 300:1 full on/off 300:1 full on/off
Black Level 6,0000 min. Lumen 2,02 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed
Video Modes NTSC, PAL, SECAM Pal 60 NTSC 4,43 HDTV Ready™, HDTV Videoeingang (480p/720p/1080i)
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens.

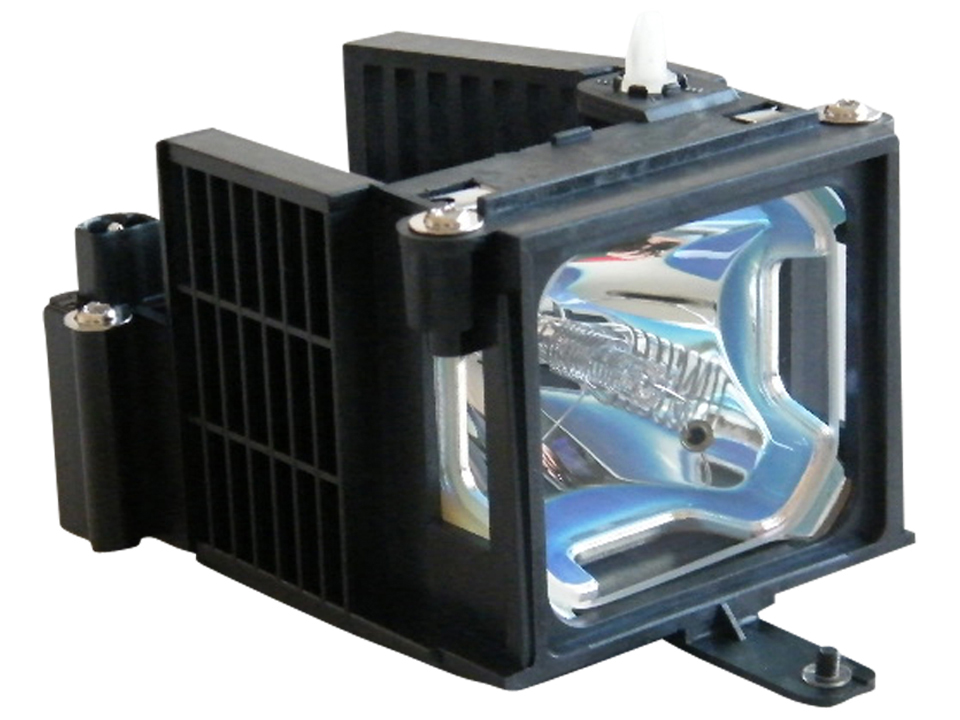

Light Source - Lamp
Article Nr.: LCA 3118
Light Life 3000 h.
Operating Costs
| cheap costly |
1
  10% / 0,04 €
400 - 478 cm



Lux: 600 Lux
Room light max.: 120 Lux
Candela pro m²: 192 cd/m²
Foot-Lamberts: 56 fL


4/3 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual 1,2
Objective F=1,8-2,2 f=28,4-34 mm
Throw Ratio 2-2,39:1
Audio -
Connections Component (YUV) in (3x RCA)
1x S-Video (Y/C DIN)
1x CVBS Video (RCA)
YUV in
Computer 1x Data in (D-sub 15pin)
Video Audio L/R (2x RCA)
Data 1x Stereo Audio (3.5 mm stereo jack)
Maus PS/2 (Mini Din)
Ceiling Mounting Yes, is possible.
Power 210W
Size WxHxD 235 x 105 x 335 mm (9,3"x4,1"x13,2") 8,27 L/dm³
Operating Noise 29dB

Weight 3,70 kg / 6,61 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-108 kHz
V-sync: 50-120 Hz
Range max.: 140 MHz
Foot-Lamberts 56 fL / max. 369 cm screen width
192 cd/m²
Features Freeze
Kensington Slot
Remote control with mouse control
Digital Zoom
Antidiebstahl-Software SecurityMax, SmartSet, Colour Tracking
Screen Mirroring -
In Comparison
The Philips bSure SV1 Impact compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
20 Weight:
82
Contrast:
1 dB:
51
Black level:
78 Power cons.:
98
Picture Total Points:33 Projector Total Points:77
Popularity Top 100
24 popularity points 16 popularity points 15 popularity points 19 popularity points 12 popularity points 7 popularity points
Points:
7
Ranking: 3778 (From: 7662)
Optional accessories
Nackte Philips Lampe NLMP286549,68 €
Lampe Ruby Ruby-LMP2865129,26 €
Lampe OriginalLCA3118EOL €
Kompatible Lampe LMP-K279862,15 €
Universal Fernbedienung Fernb-uni-V322,31 €
Deckenhalterung Länge 100-120 mmHalterung12047,86 €
Luftfilter universaluni3mm18,15 €
Status 2003 Discontinued (EOL) // Last update of the data: 2023-09-25
Data
Philips Website

Projektor Philips bSure SV1 Impact User Manual (1.39 MB)
Press release english
Product Sheet
Product Sheet
Product Sheet english HC
