Panasonic PT AE700E/U
PANASONIC PT-AE700U | PANASONIC TH-AE700
Brief Introduction
Beta 2.5
 The PT AE700E/U LCD projector from Panasonic has 1000 Ansi lumens, a contrast of 2000:1 and an HDTV 1280 x 720 resolution. The integrated lens shift gives you freedom when positioning the projector. The projector can illuminate an image width of up to 321 cm thanks to the 1000 Ansi lumens. In room light, however, the image width should ideally be less than 214 cm. With an operating noise of just 26 decibels, the model is very quiet compared to others. It was launched in 2004 and is no longer offered by the manufacturer Panasonic, but is still very popular in our projector database.
Display Type 3 x 0,7" LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
 1000
Screen
 444 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 0,5000 min. Lumen 0,222 min. Lumen
Lens shift Vert.: +/-63% Hori.: +/-25% manuell
Resolution HDTV 1280 x 720
921.600 Pixel
HDTV 1920 x 1080 compressed
Video Modes PAL, SECAM, NTSC, EDTV
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
Application Homeciname | Small screen width, rooms with very little ambient light below 100 lumens.
Light Source 130W UHM Lamp
Article Nr.: ET-LAE700
Light Life 3000 h.
Operating Costs -
282 - 556 cm



Lux: 444 Lux
Room light max.: 89 Lux
Candela pro m²: 140 cd/m²
Foot-Lamberts: 41 fL
71 cm


16/9 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual 1,99
Objective F=1,9-3,1 f=21,7-43,1 mm
Throw Ratio 1,41-2,78:1
Audio Nein
Connections HDMI
D-sub 15pin in
YUV in
Cinch Video in
S-Video in
Scart in (nur Europa Modell)
D4-Schnittstelle (nur das Japan Modell "TH")
Ceiling Mounting Yes, is possible.
Power 180W
Size WxHxD 335 x 104 x 270 mm (13,2"x4,1"x10,6") 9,41 L/dm³
Operating Noise 26dB
Key: 163 cm
Shift: 71 cm

Shift: 50 cm

Shift: 50 cm
Key: 163 cm
Shift: 71 cm
Weight 3,60 kg / 7,94 lbs.
Keystone Vert.: +/-30°
Illumination 85%
Frequenz H-sync: 30-70 kHz
V-sync: 50-87 Hz
Foot-Lamberts 41 fL / max. 321 cm screen width
140 cd/m²
Features Lens shift Funktion manuell
Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
Dynamic iris
Remote control with backlight
De-interlacer
Smooth Screen technology
Screen Mirroring Optional only Chromecast / Fire TV / Apple TV / Mi Box Ads
In Comparison
The Panasonic PT AE700E/U compared to others not current "Homeciname" projectors.
Ansi-Lumen:
8 Weight:
100
Contrast:
1 dB:
80
Black level:
94 Power cons.:
97
Picture Total Points:34 Projector Total Points:92
Popularity Top 100
34 popularity points 23 popularity points 26 popularity points 28 popularity points 27 popularity points 28 popularity points
Points:
28
Ranking: 43 (From: 984)
In Test -
Optional accessories

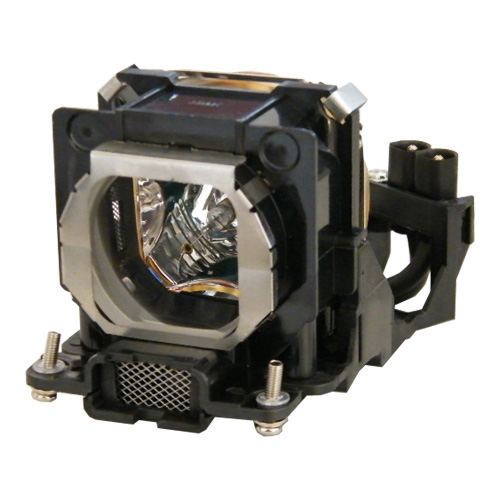

Lampe Ruby Ruby-LMP2661110,92 €
Lampe inkl. Luftfilter OriginalET-LAE700EOL €
Kompatible Lampe LMP-K1546572,44 €

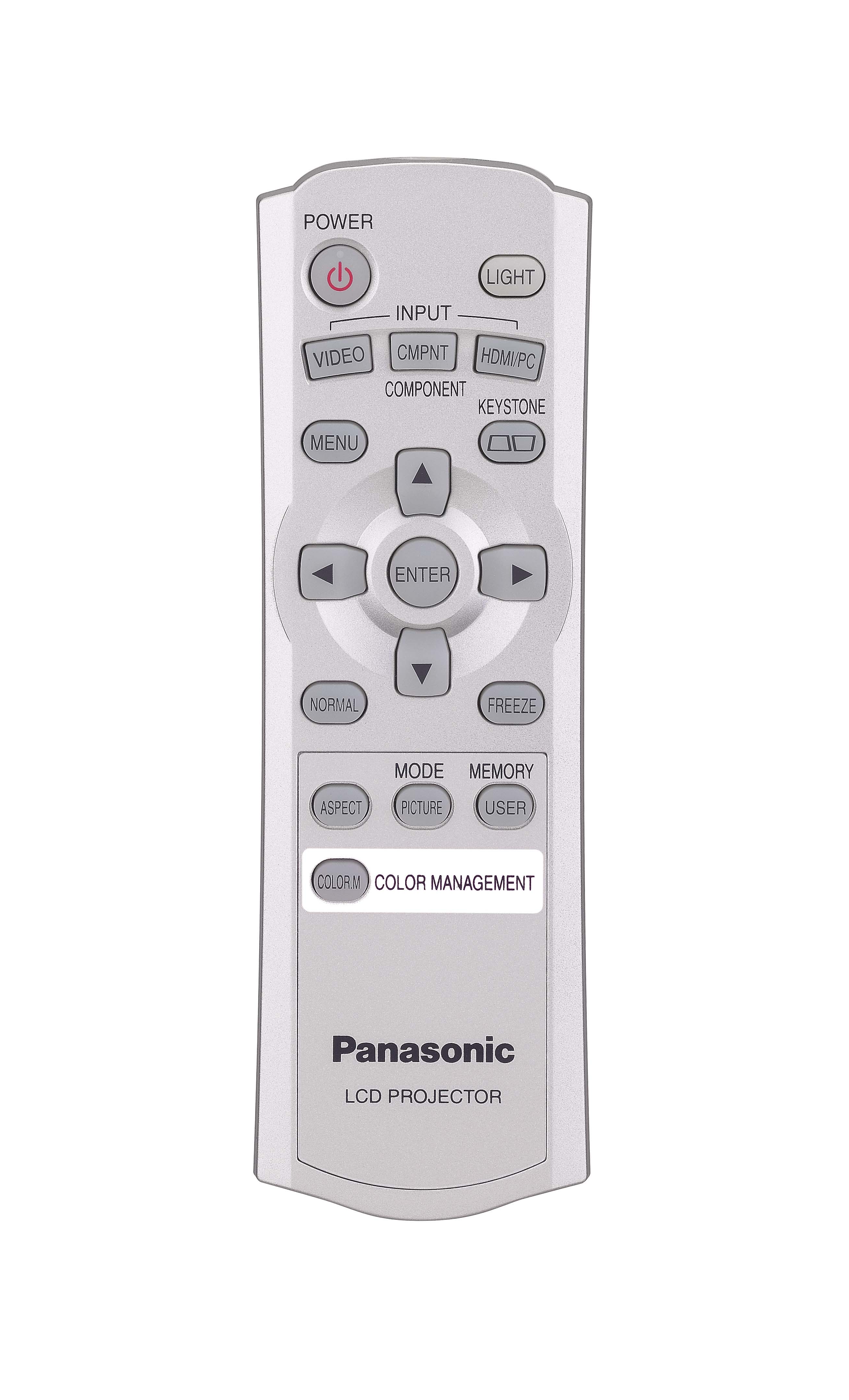

Universal Fernbedienung Fernb-uni-V322,31 €
Luftfilter OriginalTKNE055EOL €
Deckenhalterung 100-120 Halterung10047,86 €
Status 2004 Discontinued (EOL) // Last update of the data: 2025-03-03
Data
Panasonic Website

Projektor Panasonic PT AE700E/U Projektor Panasonic PT AE700E/U Projektor Panasonic PT AE700E/U Projektor Panasonic PT AE700E/U Projektor Panasonic PT AE700E/U Projektor Panasonic PT AE700E/U Projektor Panasonic PT AE700E/U User Manual english (1.67 MB)
Press release english
Product Sheet english
Product Sheet english USA
Product Sheet japanisch
Product Sheet english HC
More Details
