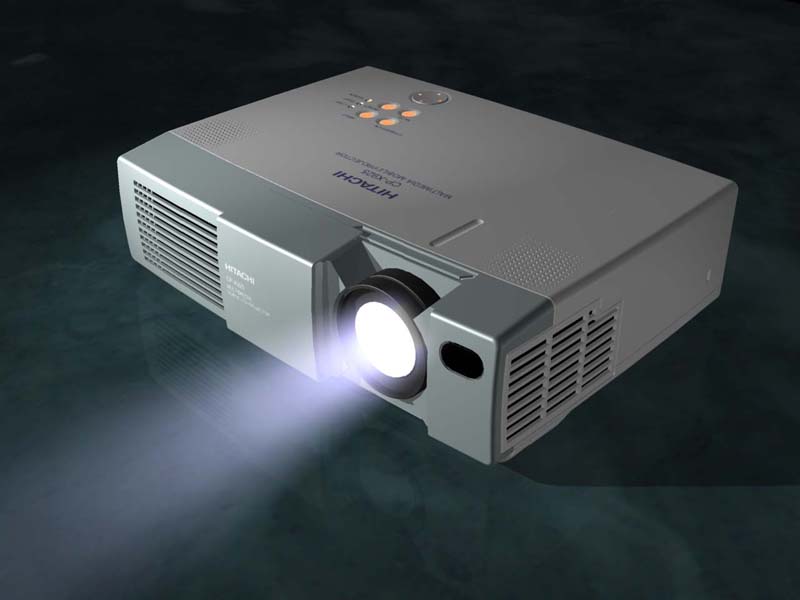

Hitachi CP X320W
Brief Introduction
Beta 2.5
 A brief introduction to the CP X320W: The Hitachi standard portable LCD projector offers 1200 Ansi lumens, a contrast of 200:1 according to Ansi and an XGA 1024 x 768 resolution. Thanks to the brightness of 1200 Ansi lumens, a picture width of 302 cm is possible. In room light, the picture should be max. 201 cm wide. The projector is no longer sold by the manufacturer.
Display Type 3 x 0,9" TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1200
Screen
 400 Lux (200 cm Screen width)
Contrast 200:1 nach Ansi 200:1 nach Ansi
Black Level 6,0000 min. Lumen 2,03 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes Full PAL, NTSC und SECAM
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens.
Light Source 160W UHB Lamp
Article Nr.: DT00331
Light Life 1500 h.
Operating Costs -
410 - 494 cm



Lux: 400 Lux
Room light max.: 80 Lux
Candela pro m²: 127 cd/m²
Foot-Lamberts: 37 fL


4/3 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual 1,2
Objective F=1,7-2,0 f=37,5-45,1 mm
Throw Ratio 2,05-2,47:1
Audio -
Connections 2 x Analogue - D-sub 15-pin
2 x Audio - stereo mini-jack
1 x S-Video - Mini-din 4 pin
1 x Composite - phono
2 x Audio - phono L und R
1 x Analogue - D-sub 15-pin
1 x Audio - stereo mini-jack
1 x RS232C, 1 x D-sub 15-pin
Ceiling Mounting -
Power -
Size WxHxD 298 x 88 x 228 mm (11,7"x3,5"x9") 5,98 L/dm³
Operating Noise -

Weight 3,20 kg / 7,05 lbs.
Keystone Vertical
Illumination -
Frequenz H-sync: 25-80 kHz
V-sync: 56-120 Hz
Foot-Lamberts 37 fL / max. 302 cm screen width
127 cd/m²
Features Freeze
Blank (Black screen button)
Remote control with laser pointer und mouse control
Screen Mirroring -
In Comparison
The Hitachi CP X320W compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
13 Weight:
85
Contrast:
1 dB: 0
Black level:
78 Power cons.: 0
Picture Total Points:31 Projector Total Points:0
Popularity Top 100
15 popularity points 14 popularity points 13 popularity points 13 popularity points 9 popularity points 5 popularity points
Points:
5
Ranking: 5849 (From: 7662)
Optional accessories

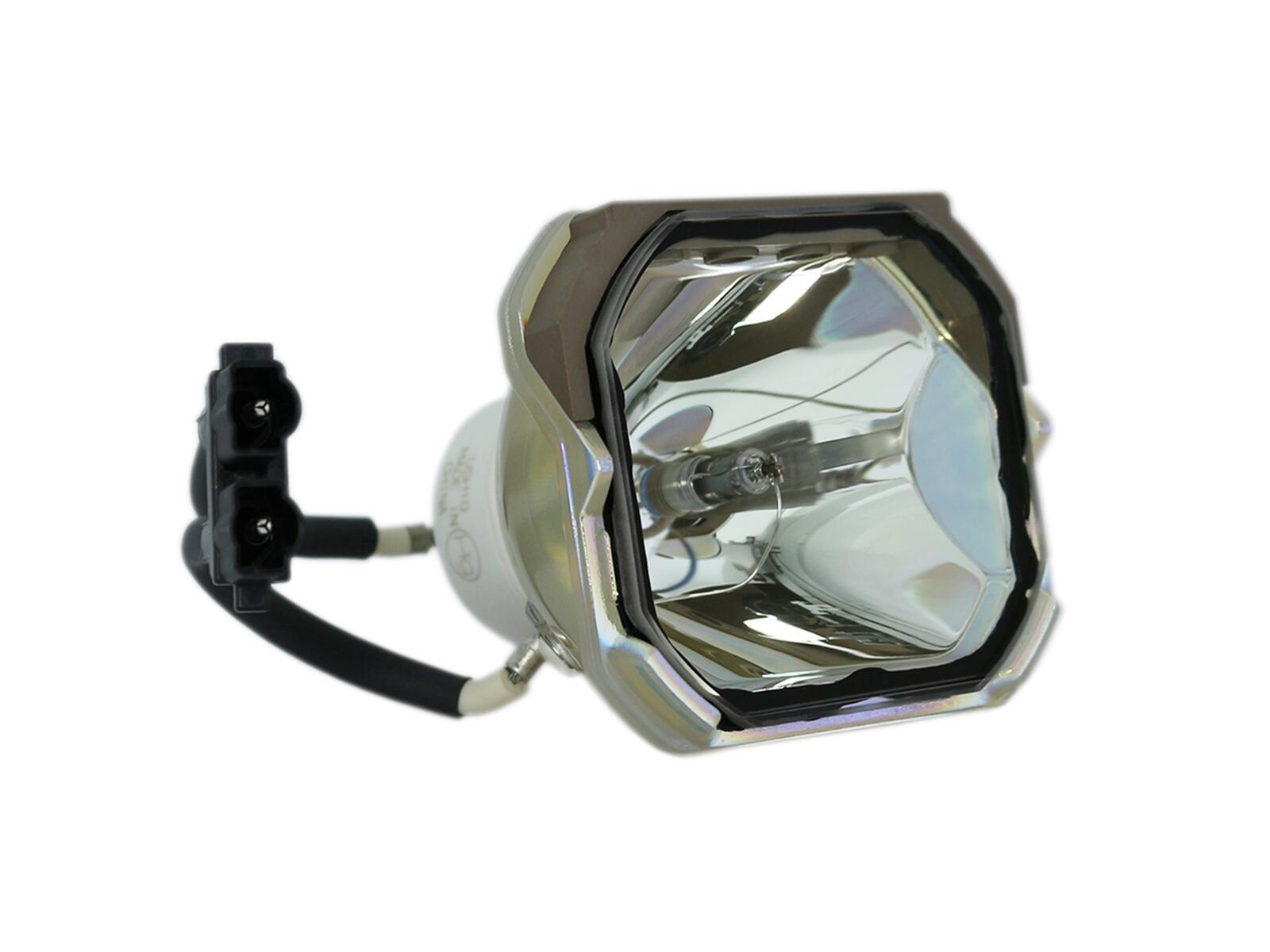

Nackte Lampe NLMP174369,31 €
Lampe Ruby Ruby-LMP174378,42 €
Lampe OriginalDT00331EOL €
Kompatible Lampe LMP-K1728461,17 €
Universal Fernbedienung Fernb-uni-V322,31 €
Fernbedienung OriginalHL01451EOL €
Luftfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2023-08-04
Data
Hitachi Website

Projektor Hitachi CP X320W User Manual english (1.14 MB)
Product Sheet
Product Sheet english HC
More Details
    https://www.projector-database.com/pro/hitachicpx320-en.html
Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
