PDF/Print Version: Epson USA Powerlite 107 Projector

Brief Introduction

Beta 2.5

With the Powerlite 107, manufacturer Epson USA offers an LCD projector with XGA 1024 x 768 resolution and a contrast of 15000:1. The lamp in the projector is specified with a lamp life of 12000 hours, which is over 16.4 years if enjoyed for two hours every day. The integrated media player can play files directly. Horizontal and vertical keystone correction makes picture adjustment childs play. The model offers a microphone jack plug and 16W speakers, so no additional audio devices are required for presentations or training courses. Thanks to the brightness of 3500 Ansi lumens, a picture width of 515 cm is possible. The projector can also handle slightly brighter rooms with a smaller picture width (we recommend max. 343 cm). Even 1080P video signals are no problem for the projector. This model is no longer offered by Epson USA.

Display Type

3 x 0,55" LCD TFT
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

3500

Screen

1167 Lux (200 cm Screen width)

Contrast

15000:1

Black Level

0,2333 min. Lumen

0,078 min. Lumen

Offset

Resolution

XGA 1024 x 768
786.432 Pixel

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: Image (.jpg) Image (.bmp) Image (.gif ) Image (.png) Motion JPEG movie (.avi)

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.

Light Source

210W UHE Lamp
Article Nr.: ELPLP96 / V13H010L96

Light Life

6000 h. / 12000 h. in Eco Mode

Operating Costs

| cheap

costly |

5% / 0,02 €

296 - 354 cm


	Lux:	1167 Lux
	Room light max.:	233 Lux
	Candela pro m²:	370 cd/m²
	Foot-Lamberts:	108 fL

Focus

Manual

Zoom

Manual 1,2

Objective

F=1,49-1,72 f=16,9-20,28 mm

Throw Ratio

1,48-1,77:1

Audio

16W

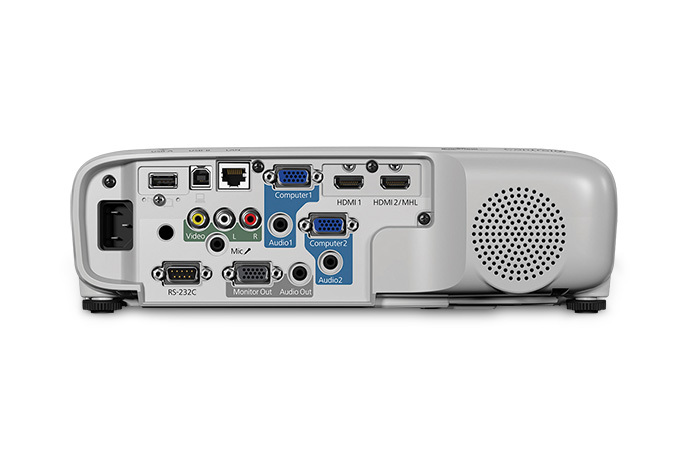

Connections

2 x HDMI in
2 x D-sub 15pin in und 1 x out
Cinch Video in
Cinch Stereo in
Microphone
Mini Jack Audio 2x in und out
USB in
RS232C Din 9 pin in
RJ45 in

Ceiling Mounting

Yes, is possible.

Power

326 / 227W in Eco Mode

Size WxHxD

294,6 x 88,9 x 246,4 mm (11,6"x3,5"x9,7") 6,36 L/dm³

Operating Noise

37 / 28 dB in Eco Mode

Key: 171 cm
Key: 171 cm	Without offset	Key: 171 cm
	Key: 171 cm

Weight

2,80 kg / 4,41 lbs.

Keystone

Vert.: +/-30° automatisch
Hori.: +/-30°

Illumination

Frequenz

V-sync: 50-85 Hz

Foot-Lamberts

108 fL / max. 515 cm screen width

370 cd/m²

Features

Full HD 1080P compatible

Integrated Mediaplayer

Eco Mode

Automatic and manual vertical keystone correction

Kensington Slot

Password protection

Optional Wi-Fi network compatible.

Lan network compatible.

Screen Mirroring

In Comparison

The Epson USA Powerlite 107 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

1105 (From: 7662)

Optional accessories
	Nackte Philips Lampe	NLMP25076	70,82 €
	Lampe Ruby	Ruby-LMP25076	83,03 €
	Lampe Original	ELPLP96 / V13H010L96 / ELPLP97 / V13H010L97	110,22 €
	Kompatible Lampe	LMP-K22619	72,91 €
	Universal Fernbedienung	Fernb-uni-V3	22,31 €
	Fernbedienung Original	2181788	24,91 €
	Einzelner Luftfilter Original	ELPAF32 / V13H134A32 / 1557759	27,07 €
	Deckenhalterung 100-120	Halterung100	47,86 €

Status

2017 Discontinued (EOL) // Last update of the data: 2023-08-30
Created:

2019-08-07 18:41:36

Data

Epson USA Website

User Manual english (11.39 MB)
Product Sheet english
Product Sheet english HC

More Details


	https://www.projector-database.com/pro/epsonusapowerlite107-en.html

Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
