PDF/Print Version: Christie LX650 Projector

Brief Introduction

Beta 2.5

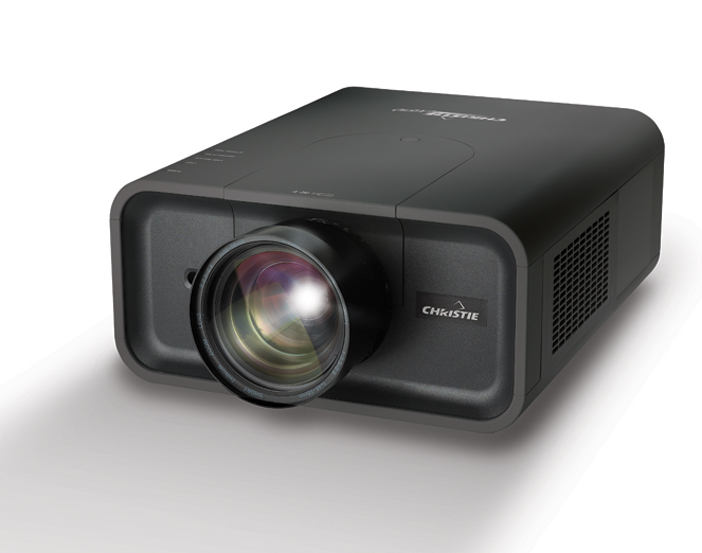

A brief introduction to the LX650: The Christie LCD projector offers 6500 Ansi lumens, a contrast of 2000:1 and an XGA 1024 x 768 resolution. The integrated lens shift gives freedom when positioning the projector. The projector can illuminate an image width of up to 702 cm thanks to its 6500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 468 cm is recommended. Furthermore, the projector can play 1080P without any problems. The model built in 2007 is no longer offered by Christie.

Display Type

3 x 1,3" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

6500

Screen

2167 Lux (200 cm Screen width)

Contrast

2000:1 full on/off

Black Level

3,2500 min. Lumen

1,085 min. Lumen

Lens shift

Vert.: +/-50% Hori.: +/-10% motorisiert

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.

Light Source

330W NSH Lamp
Article Nr.: 003-120333-01

Light Life

1500 h. 2000 h. in Eco Mode

Operating Costs


	Lux:	2167 Lux
	Room light max.:	433 Lux
	Candela pro m²:	689 cd/m²
	Foot-Lamberts:	201 fL

75 cm

Focus

Powered

Zoom

Powered

Objective

optional

Throw Ratio

optional

Audio

1W Stereo

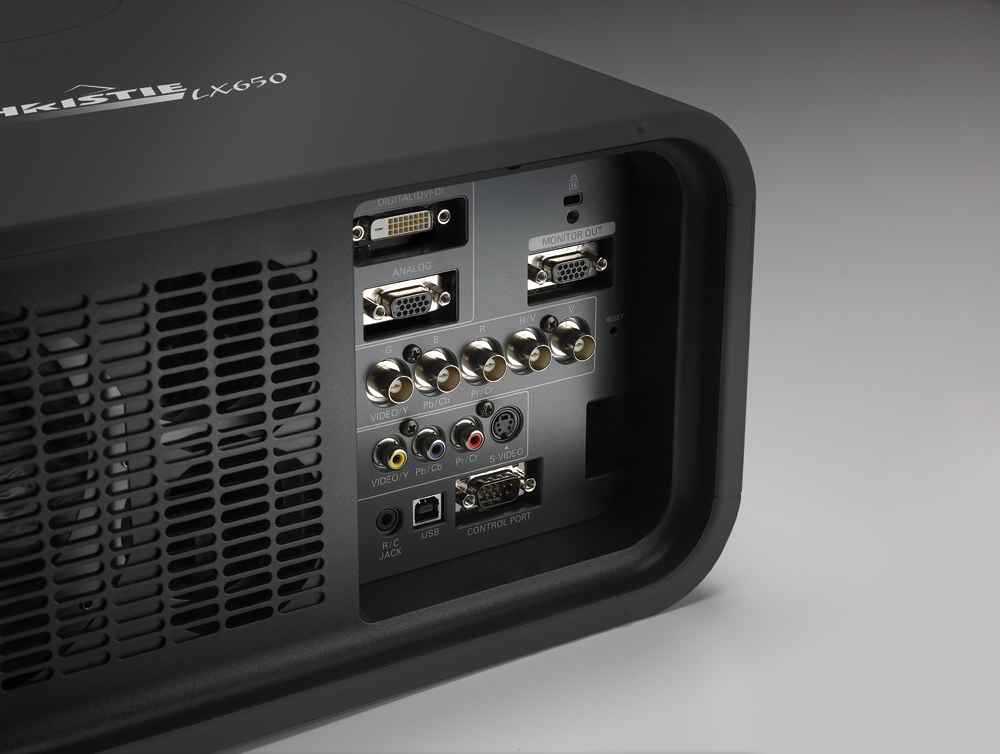

Connections

DVI-D mit HDCP in
D-sub 15 pin in und out
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Video in
RS232C
USB Typ B

Ceiling Mounting

Yes, is possible.

Power

480W

Size WxHxD

370 x 187 x 440 mm (14,6"x7,4"x17,3") 30,44 L/dm³

Operating Noise

38dB

Shift: 75 cm
Shift: 20 cm		Shift: 20 cm
	Shift: 75 cm

Weight

11,20 kg / 24,69 lbs.

Keystone

Illumination

90%

Frequenz

H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 180 MHz

Foot-Lamberts

201 fL / max. 702 cm screen width

689 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion motorisiert

Freeze

User logo

Eco Mode

Kensington Slot

Gamma correction

Remote control with laser pointer

Optional Wi-Fi network compatible.

Optional LAN network compatible.

Screen Mirroring

In Comparison

The Christie LX650 compared to others not current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

796 (From: 2514)

Optional accessories

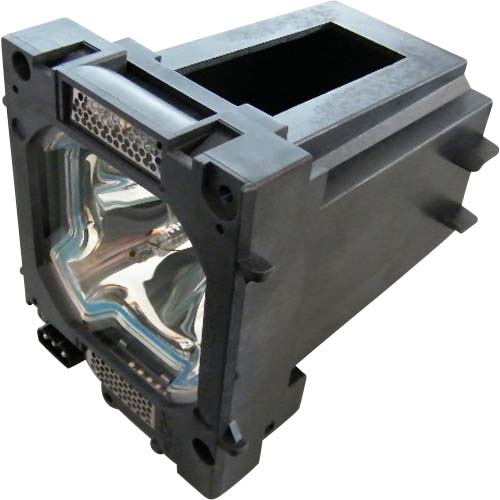

	Nackte Lampe	NLMP16777	147,98 €
	Lampe Ruby	Ruby-LMP16777	176,12 €
	Lampe Original	003-120333-01	EOL €
	Kompatible Lampe	LMP-K16777	69,53 €
	Luftfilter Kompatibel	Alternative zu:ET-SFYL131 / POA-FIL-131 / 610-334-3747 / 003-001726-01	54,44 €
	Universal Fernbedienung	Fernb-uni-V3	22,31 €
	Fernbedienung Original	6450929502 / CXWH	EOL €
	Luftfilter Original	ET-SFYL131 / POA-FIL-131 / 610-334-3747 / 003-001726-01	EOL €
	Deckenhalterung 220	Halterung45	83,60 €

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
Zoom Optional Lenses
4.2-6.0:1	4.2-6:1	8.4-12 m	50%		Powered
2.3-4.2:1	2.31-4.19:1	4.6-8.4 m	50%		Powered
1.8-2.4:1	1.8-2.4:1	3.6-4.8 m	50%		Powered
1.26-1.81:1	1.26-1.81:1	2.5-3.6 m	50%		Powered
Fix Optional Lenses
0.8:1	0.81:1	1.6 m	0.0% Fix		No Zoom

Status

2007 Discontinued (EOL) // Last update of the data: 2023-08-04

Data

Christie Website

User Manual english (6.01 MB)
Product Sheet english
Product Sheet english HC
