PDF/Print Version: Christie DHD599-GS Projector

Brief Introduction

Beta 2.5

A brief introduction to the DHD599-GS: The Christie laser DLP projector offers 5000 Ansi lumens, a contrast of 15000000:1 and HDTV 1920 x 1080 resolution. The manufacturer Christie specifies a service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. The projector also offers a lens shift function that makes image adjustment childs play. An image width of up to 718 cm is possible as the projector has 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. Furthermore, the projector can play 1080P without any problems. The model built in 2017 is no longer offered by Christie.

Display Type

1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip

Ansi-Lumen

Projector

5000

Screen

2222 Lux (200 cm Screen width)

Contrast

15000000:1 full on/off

Black Level

0,0003 min. Lumen

0 min. Lumen

Lens shift

Vert.: +/-60% Hori.: +/-15%

Resolution

HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens).

Light Source

Laser

Light Life

20000 h.

Operating Costs

0,00 € Laser


	Lux:	2222 Lux
	Room light max.:	444 Lux
	Candela pro m²:	706 cd/m²
	Foot-Lamberts:	206 fL

68 cm

Focus

Powered

Zoom

Powered

Objective

optional

Throw Ratio

optional

Audio

Nein

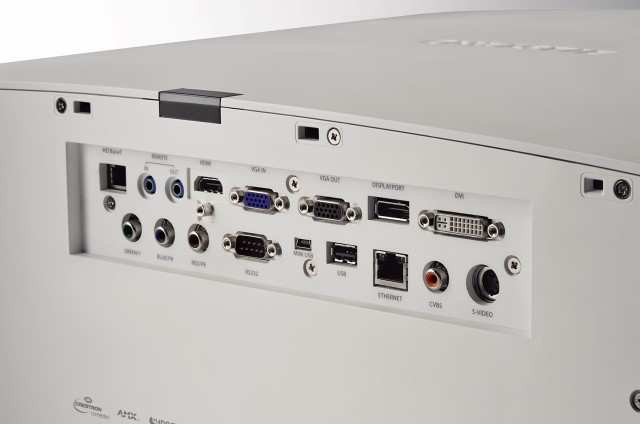

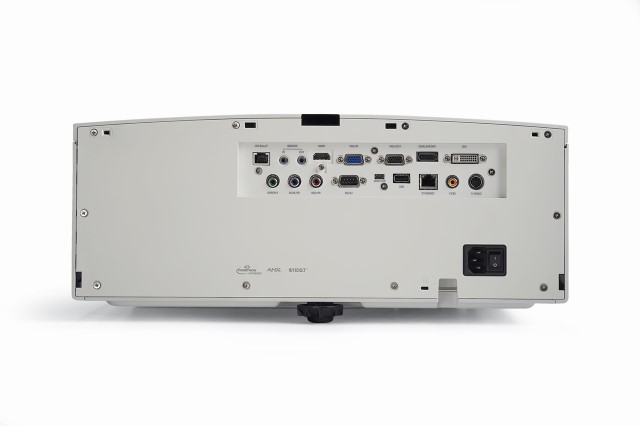

Connections

HDMI in
DVI-D in
D-sub 15pin in
YUV in
Cinch Video in
S-Video in
USB Typ A in
RS232C Din 9 pin in
HDBaseT in
RJ45 in

Ceiling Mounting

Yes, is possible.

Power

550 / 280W in Eco Mode

Size WxHxD

505 x 190 x 517 mm (19,9"x7,5"x20,4") 49,61 L/dm³

Operating Noise

38 / 34 dB in Eco Mode

Shift: 68 cm
Shift: 30 cm		Shift: 30 cm
	Shift: 68 cm

Weight

16,50 kg / 36,38 lbs.

Keystone

Illumination

Frequenz

H-sync: 15-100 kHz
V-sync: 24-85 Hz
Range max.: 162 MHz

Foot-Lamberts

206 fL / max. 718 cm screen width

706 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion

Eco Mode

Lan network compatible.

Screen Mirroring

In Comparison

The Christie DHD599-GS compared to others not current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

100

dB:

Black level:

100

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

924 (From: 2514)

Optional accessories
	Fernbedienung Original	IR1081	41,95 €
	Deckenhalterung 220	Halterung45	83,60 €

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
Zoom Optional Lenses
140-131106-XX	1.22-1.52:1	2.4-3 m	+/-60%	+/-15%	Powered
140-119102-01	0.75-0.95:1	1.5-1.9 m			Powered
140-107109-XX	2.9-5.5:1	5.8-11 m	+/-60%	+/-15%	Powered
140-102104-xx	1.52-2.92:1	3-5.8 m	+/-60%	+/-15%	Powered
140-101103-xx	0.95-1.22:1	1.9-2.4 m	+/-60%	+/-15%	Powered

Status

2017 Discontinued (EOL) // Last update of the data: 2025-03-03
Created:

2017-05-12 10:41:02

Data

Christie Website

User Manual english (8.13 MB)
Product Sheet english
Product Sheet english HC

More Details
