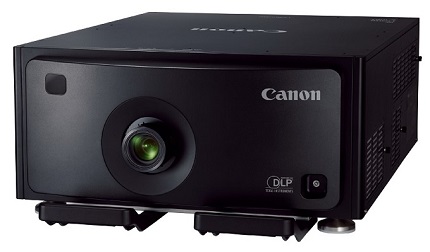

PDF/Print Version: Canon LX-HD1200Z Projector

Brief Introduction

Beta 2.5

The LX-HD1200Z laser DLP projector from Canon has 12000 Ansi lumens, a contrast of 10000:1 and an HDTV 1920 x 1080 resolution. The service life is 20000 hours due to the laser, which is over 13.7 years if enjoyed for four hours a day. With the lens shift function, the projector can be positioned very freely. An image width of up to 1113 cm is possible as the projector has 12000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 742 cm. If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Playing 1080P and 4K (compressed) is also no problem for the projector, and it even has the option of projecting HD 1080P and 4K (compressed) Blu-rays onto the ceiling using 360Â° projection. On the market since 2018, the model is no longer offered by the manufacturer Canon.

Display Type

3 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip

Ansi-Lumen

Projector

12000

Screen

5333 Lux (200 cm Screen width)

Contrast

10000:1 full on/off

Black Level

1,2000 min. Lumen

0,533 min. Lumen

Lens shift

Vert.: +/-50% Hori.: +/-11%

Resolution

HDTV 1920 x 1080
2.073.600 Pixel
HD4K 4096 x 2160 compressed

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p

Application

Event | Very large screen width and rooms with plenty of light and shaded daylight.

Light Source

Laserlichtquelle
Article Nr.: 7N901041 / RD-465E

Light Life

20000 h.

Operating Costs

0,00 € Laser


	Lux:	5333 Lux
	Room light max.:	1067 Lux
	Candela pro m²:	1696 cd/m²
	Foot-Lamberts:	495 fL

56 cm

Focus

Powered

Zoom

Powered

Objective

optional

Throw Ratio

optional

Audio

Nein

Connections

HDMI in
D-sub 15pin in und out
5 x BNC RGBHV in
BNC Video in
S-Video in
USB Typ A 2.0 in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
3D Sync Ausgang: 1 × Mini-DIN 3-polig
1 × Slot für optionale OPS-Module

Ceiling Mounting

Yes, is possible.

Power

1392 / 752W in Eco Mode

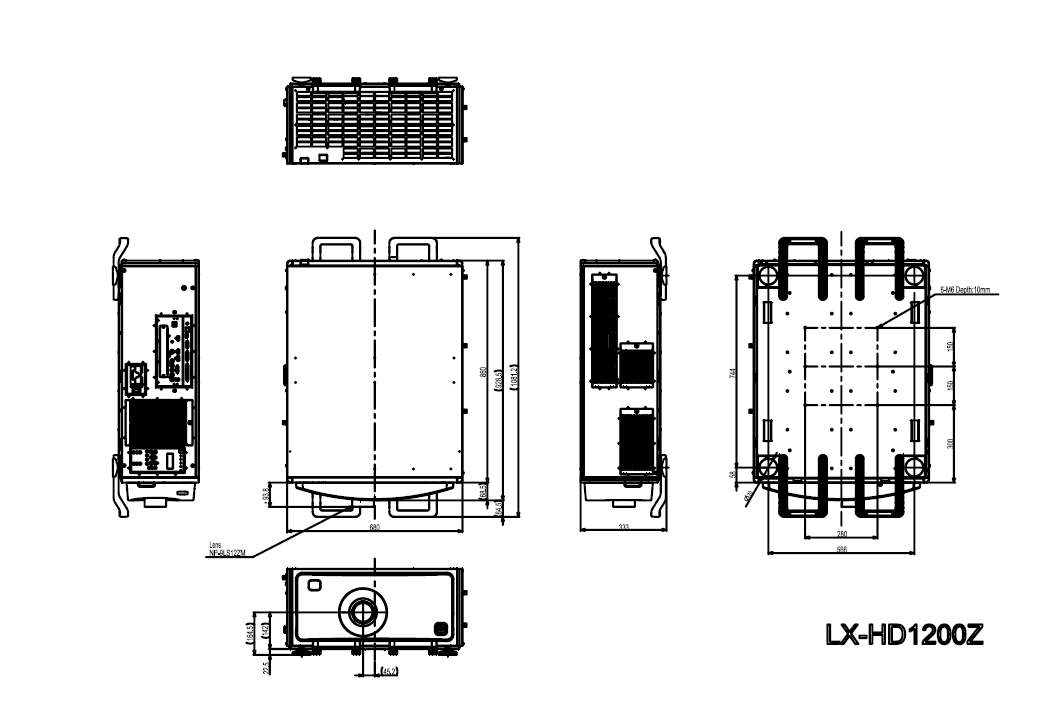

Size WxHxD

680 x 333 x 860 mm (26,8"x13,1"x33,9") 194,74 L/dm³

Operating Noise

47 / 43 dB in Eco Mode

Shift: 56 cm
Shift: 22 cm		Shift: 22 cm
	Shift: 56 cm

Weight

68,00 kg / 149,91 lbs.

Keystone

Vert.: +/-40°
Hori.: +/-40°

Illumination

Frequenz

H-sync: 15-153 kHz
V-sync: 24-120 Hz

Foot-Lamberts

495 fL / max. 1113 cm screen width

1696 cd/m²

Features

Full HD 1080P compatible

Direkt Power Off

Lens shift Funktion

Freeze

User logo

Eco Mode

360° installable

Edge Blending

Picture-in-Picture

Password protection

PJLink™

Lan network compatible.

Crestron®-Software compatible.

Screen Mirroring

In Comparison

The Canon LX-HD1200Z compared to others not current "Event" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

396 (From: 576)

Optional accessories
	Fernbedienung Original	7N901041 / RD-465E	101,45 €

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
Zoom Optional Lenses
NP-9LS40ZM1	4.31-6.77:1	8.6-13.5 m	+/-55%	+/-11%	Powered
NP-9LS20ZM1	2.25-4.18:1	4.5-8.4 m	+/-50%	+/-11%	Powered
NP-9LS16ZM1	1.71-2.87:1	3.4-5.7 m	+/-50%	+/-11%	Powered
NP-9LS13ZM1	1.41-2.23:1	2.8-4.5 m	+/-50%	+/-11%	Powered
NP-9LS12ZM1	1.27-1.82:1	2.5-3.6 m	+/-50%	+/-11%	Powered
NP-9LS08ZM1	0.9-1.35:1	1.8-2.7 m	+/-50%	+/-11%	Powered

Status

2018 Discontinued (EOL) // Last update of the data: 2025-03-03
Created:

2018-08-12 18:21:13

Data

Canon Website

Product Sheet
Product Sheet english HC

More Details


	https://www.projector-database.com/pro/canonlxhd1200z-en.html

Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
