 A brief introduction to the Benq MH560. The DLP projector has an HDTV 1920 x 1080 resolution and a contrast of 20000:1. The lamp life is up to 10000 hours, which is over 13.7 years if enjoyed for two hours a day. 3800 Ansi lumens ensure that a picture width of 626 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 417 cm. Playing 1080P is also no problem for the projector.
Display Type 1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 3800
Screen
 1689 Lux (200 cm Screen width)
Contrast 20000:1 full on/off 20000:1 full on/off
Black Level 0,1900 min. Lumen 0,084 min. Lumen
Offset
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
3D Compatibility Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready)
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source Lampe
Article Nr.: 5J.JNG05.001
Light Life 6000 h. / 10000 h. in Eco Mode
Operating Costs
| cheap costly |
1
  7,5% / 0,03 €
298 - 328 cm



Lux: 1689 Lux
Room light max.: 338 Lux
Candela pro m²: 538 cd/m²
Foot-Lamberts: 157 fL
68 cm


16/9 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual 1,1
Objective -
Throw Ratio 1,49-1,64:1
Audio 1 x 10W

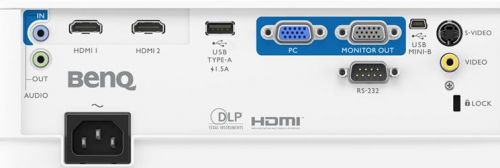

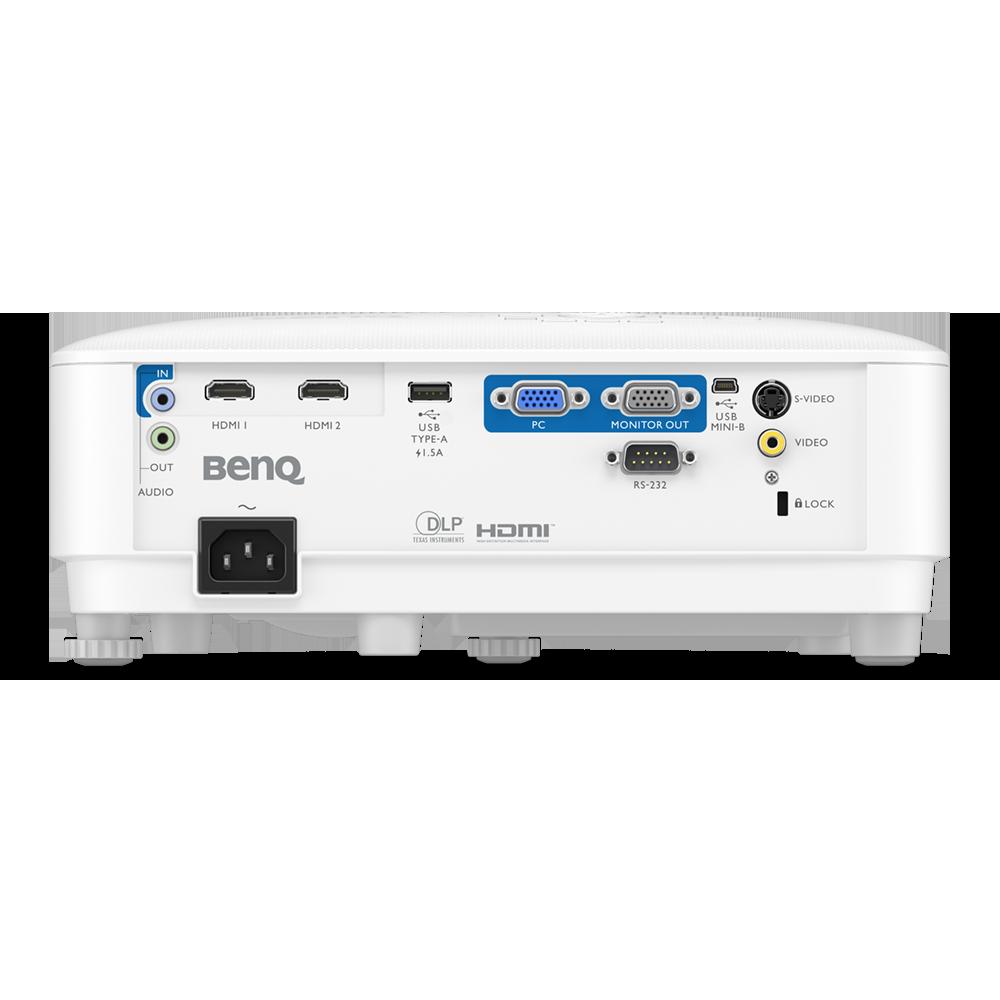

Connections 2x HDMI in
D-sub 15pin in und out
Cinch Video in
Mini Jack Audio in und out
USB
S-Video
RS232C Din 9 pin in
Ceiling Mounting Yes, is possible.
Power 280W/ 215W in Eco Mode
Size WxHxD 296 x 120 x 221 mm (11,7"x4,7"x8,7") 7,85 L/dm³
Operating Noise 34 / 29 dB in Eco Mode
Key: 318 cm
Key: 182 cm
Weight 2,30 kg / 4,41 lbs.
Keystone Vert.: +/-40°  automatisch
Illumination -
Frequenz H-sync: 15-102 kHz
V-sync: 23-120 Hz
Foot-Lamberts 157 fL / max. 626 cm screen width
538 cd/m²
Features Full HD 1080P compatible
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Optional Wi-Fi network compatible.
Screen Mirroring -
In Comparison
The Benq MH560 compared to others current "Standard-Portabel" projectors.
Ansi-Lumen:
53 Weight:
88
Contrast:
1 dB:
65
Black level:
98 Power cons.:
50
Picture Total Points:51 Projector Total Points:68
Popularity Top 100
7 popularity points 16 popularity points 20 popularity points 20 popularity points 11 popularity points 4 popularity points
Points:
4
Ranking: 309 (From: 849)
Optional accessories
Universal Fernbedienung Fernb-uni-V322,31 €
Lampe Original5J.JNG05.001180,53 €
Fernbedienung Original5J.JND06.001 / RCX01631,24 €
Deckenhalterung 100-120 Halterung10047,86 €
Status 2023 Current model // Last update of the data: 2025-09-09
