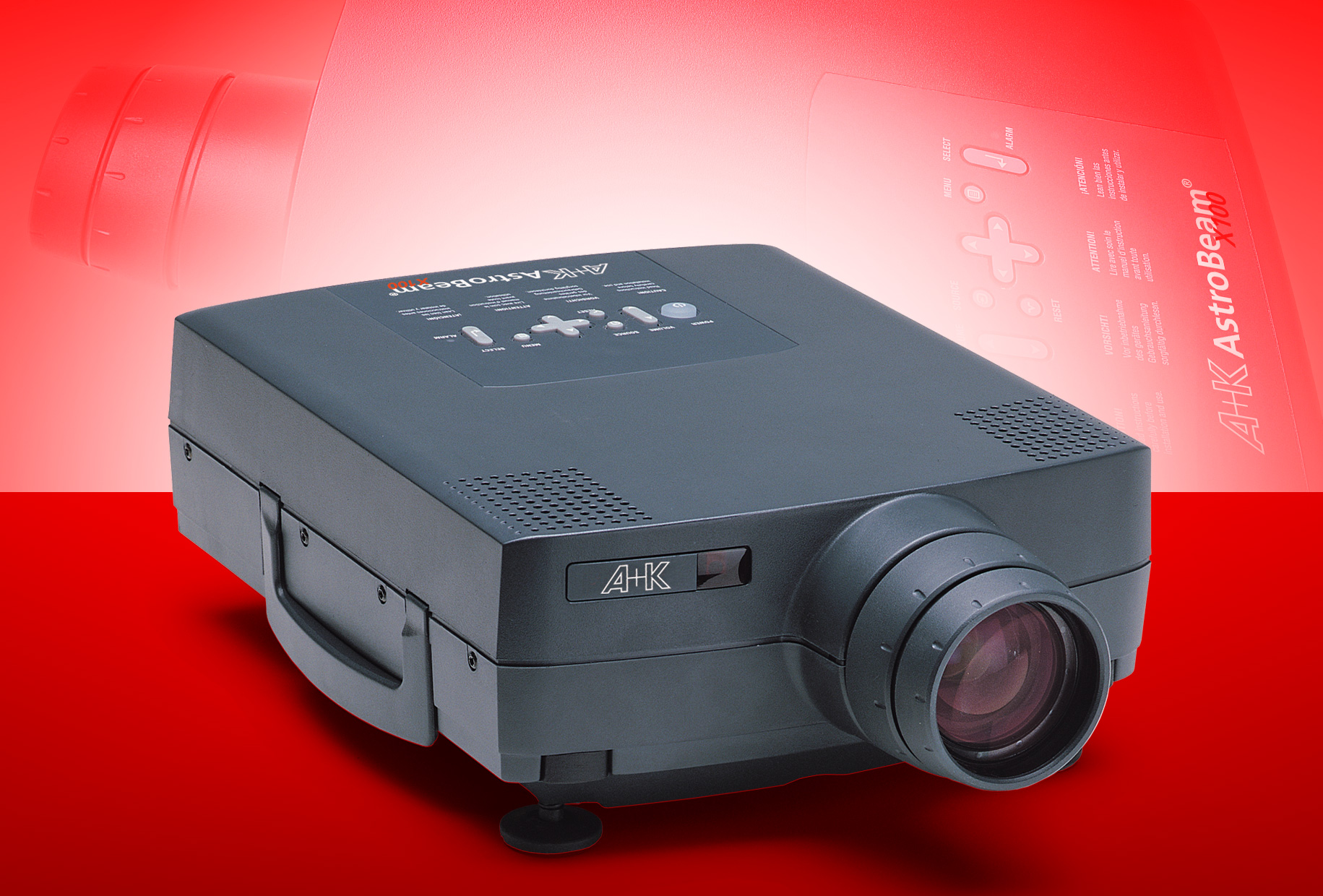

Anders + Kern AstroBeam X100
Brief Introduction
Beta 2.5
 The AstroBeam X100 LCD projector from Anders + Kern has 900 Ansi lumens, a contrast of 300:1 and an XGA 1024 x 768 resolution. The projector can illuminate an image width of up to 261 cm with its 900 Ansi lumens. In room light, however, the image width should ideally be less than 174 cm. The model is no longer offered by Anders + Kern, but is still very popular in our projector database.
Display Type 3 x 0,9" TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
 900
Screen
 300 Lux (200 cm Screen width)
Contrast 300:1 full on/off 300:1 full on/off
Black Level 3,0000 min. Lumen 1,01 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens.
Light Source 120W UHP Lamp
Article Nr.: 21 131
Light Life 2000 h.
Operating Costs
| cheap costly |
1
  15% / 0,06 €
416 - 546 cm



Lux: 300 Lux
Room light max.: 60 Lux
Candela pro m²: 96 cd/m²
Foot-Lamberts: 28 fL


4/3 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual 1,32
Objective F=1,8-2,1 f=38-50 mm
Throw Ratio 2,08-2,73:1
Audio 2 x 1W
Connections Computer In VGA D-sub 15pin
Computer Audio In 3,5 mm Stereo Klinke
Maus 1 8-pin Mini DIN für PS/2 Maus
Maus 2 USB
Composite-Video RCA
S-Video 4-pin Mini DIN
Video Audio In 3,5 mm Stereo Klinke
Monitor Out VGA D-sub 15pin
Audio Line Out 3,5 mm Stereo Klinke
Ceiling Mounting Yes, is possible.
Power 180W
Size WxHxD 236 x 99 x 282 mm (9,3"x3,9"x11,1") 6,59 L/dm³
Operating Noise 38dB

Weight 3,70 kg / 8,16 lbs.
Keystone -
Illumination 90%
Frequenz H-sync: 15-100 kHz
V-sync: 43-130 Hz
Foot-Lamberts 28 fL / max. 261 cm screen width
96 cd/m²
Features Remote control with laser pointer
Screen Mirroring -
In Comparison
The Anders + Kern AstroBeam X100 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
9 Weight:
82
Contrast:
1 dB:
28
Black level:
89 Power cons.:
99
Picture Total Points:33 Projector Total Points:70
Popularity Top 100
9 popularity points 12 popularity points 13 popularity points 10 popularity points 5 popularity points 8 popularity points
Points:
8
Ranking: 2775 (From: 7662)
Optional accessories

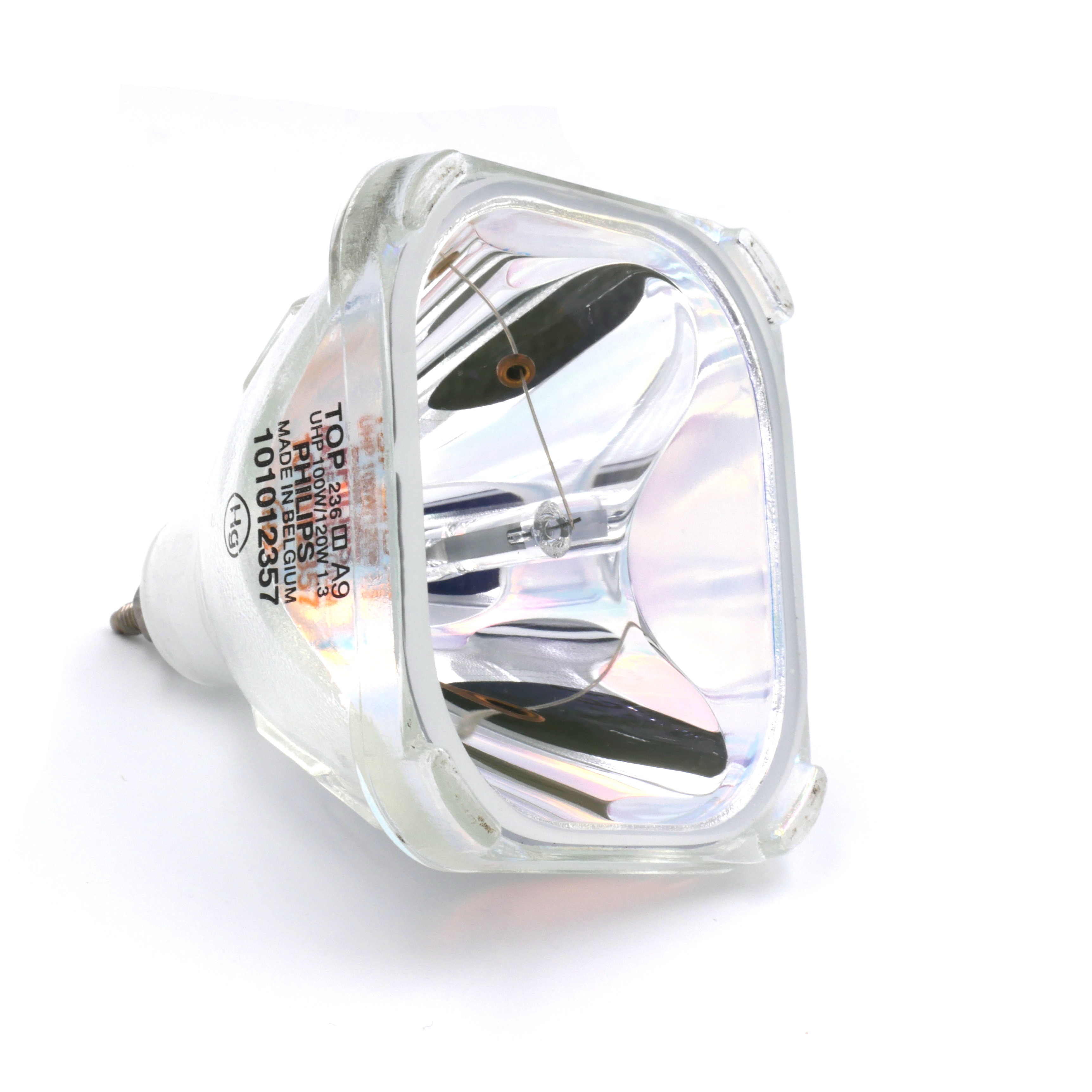

Nackte Lampe NLMP294119,56 €
Lampe Original21 131EOL €
Universal Fernbedienung Fernb-uni-V322,31 €
Deckenhalterung Länge 100-120 mmHalterung12047,86 €
Luftfilter universaluni3mm18,15 €
Status - Discontinued (EOL) // Last update of the data: 2023-08-04
Data
Anders + Kern Website

Projektor Anders + Kern AstroBeam X100 Projektor Anders + Kern AstroBeam X100 Product Sheet
Product Sheet english HC
