Acer H6546Ki
MR.JW011.002
Brief Introduction
Beta 2.5
 The Acer model H6546Ki is a DLP projector with HDTV 1920 x 1080 resolution and a contrast of 10000:1. The lamp of the projector is specified with 10000 hours lamp life, which is over 13.7 years with a daily viewing time of 2 hours. The projector can illuminate a screen width of up to 733 cm thanks to its 5200 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 489 cm is recommended. The model recognizes Airplay, Miracast Screen Mirroring signals, so it is possible to play videos with high resolution and surround sound directly via WLAN from a smartphone, tablet or PC (Android, Windows and iOS). Playing 1080P and 3D is also no problem for the projector. At just 29 decibels, the device is one of the quieter projectors.
Display Type 1 x 0,48" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 5200
Screen
 2311 Lux (200 cm Screen width)
Contrast 10000:1 full on/off 10000:1 full on/off
Black Level 0,5200 min. Lumen 0,231 min. Lumen
Offset
Resolution HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready)
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source 240W Lampe
Article Nr.: MC.JTA11.001
Light Life 5000 h. 10000 h. in Eco Mode
Operating Costs
| cheap costly |
1
  12,5% / 0,05 €
296 - 324 cm



Lux: 2311 Lux
Room light max.: 462 Lux
Candela pro m²: 737 cd/m²
Foot-Lamberts: 215 fL
62 cm


16/9 screen width:200 cm
            Screen: 1 Gain
Focus Manual
Zoom Manual x2,0
Objective F=2,0-2,05 f=15,85-17,44 mm
Throw Ratio 1,48-1,62:1
Audio 1 x 3W

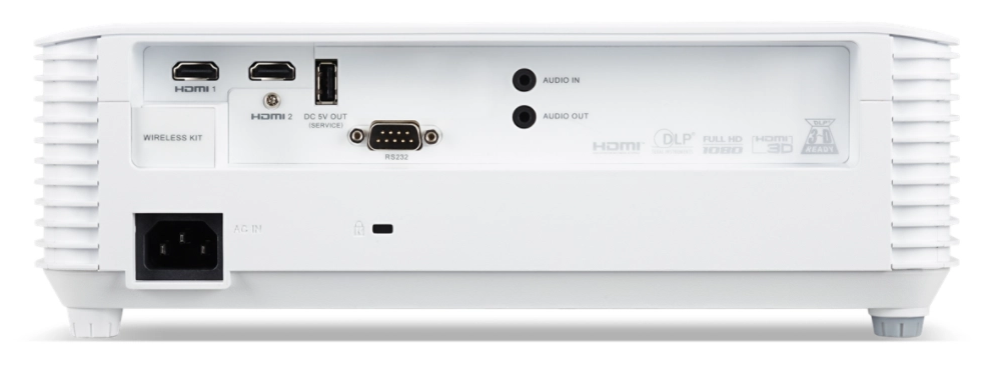

Connections 2x HDMI 1.4b in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
Ceiling Mounting Yes, is possible.
Power 309W
Size WxHxD 313 x 107 x 255,3 mm (12,3"x4,2"x10") 8,54 L/dm³
Operating Noise 29 / 27 dB in Eco Mode
Key: 310 cm
Key: 186 cm
Weight 2,95 kg / 4,41 lbs.
Keystone Vert.: +/-40°  automatisch
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 24-120 Hz
Foot-Lamberts 215 fL / max. 733 cm screen width
737 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
24/7 continuous operation capable
Wi-Fi network compatible.
Acer ColorSafe II
Acer ColorBoost3D™
Acer LumiSense™
Screen Mirroring Miracast, Airplay, EZ Cast
In Comparison
The Acer H6546Ki compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
73 Weight:
83
Contrast:
1 dB:
79
Black level:
94 Power cons.:
43
Picture Total Points:56 Projector Total Points:68
Popularity Top 100
52 popularity points 37 popularity points 41 popularity points 35 popularity points 28 popularity points 40 popularity points
Points:
40
Ranking: 9 (From: 7662)
Optional accessories
Lampe OriginalMC.JTA11.001, UC.JTA11.001239,77 €
Fernbedienung mit Laserpointer MC.JMV11.00G28,86 €
Deckenhalterung 100-120 Halterung10047,86 €
Status 2022 Discontinued (EOL) // Last update of the data: 2024-05-16
Data
Acer Website

Projektor Acer H6546Ki Projektor Acer H6546Ki Projektor Acer H6546Ki Projektor Acer H6546Ki User Manual english (7.25 MB)
Quick Start Guide
Product Sheet english HC
More Details
    https://www.projector-database.com/pro/acerh6546ki-en.html
Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
